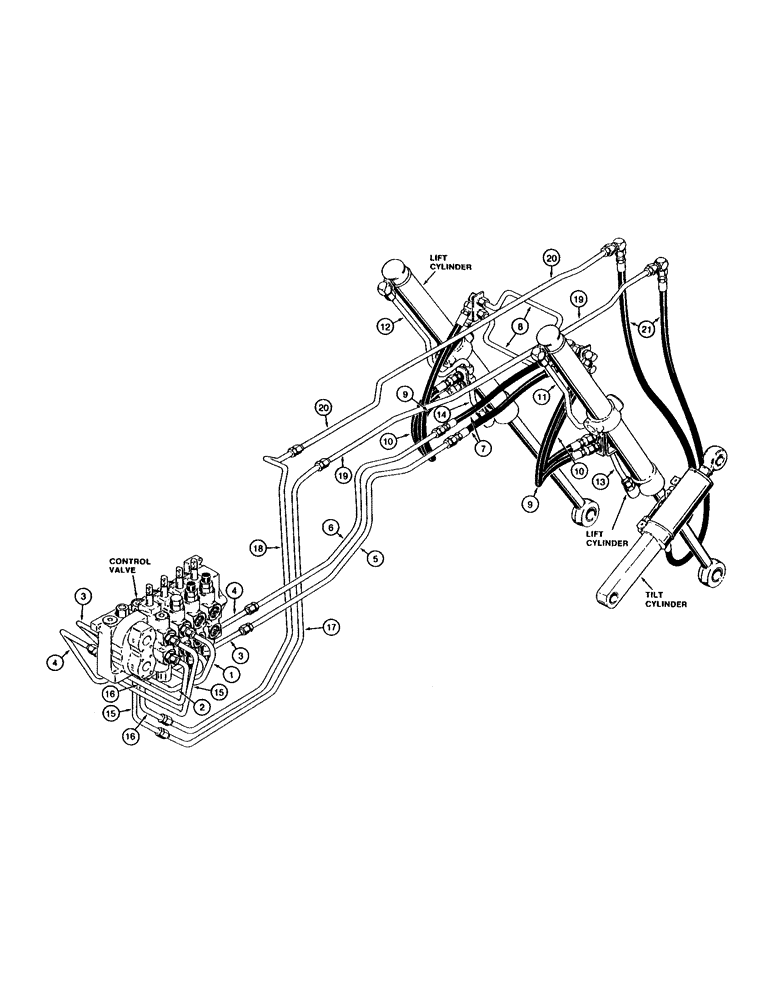

Запчасти Case 1550 (1-20) - PICTORIAL INDEX, DOZER HYDRAULICS, POWER TILT DOZER MODELS (00) - PICTORIAL INDEX

1

Upper Lift Tube from "A" Port of Control Valve, Page 8-15

1шт.

2

Lower Lift Tube from "B" Port of Control Valve, Page 8-15

1шт.

3

Intermediate Lift Tube from "A" Port of Control Valve, Page 8-15

1шт.

4

Intermediate Lift Tube from "B" Port of Control Valve, Page 8-15

1шт.

5

Lower Lift Tube to Bracket from "A" Port of Control Valve, Page 8-15

1шт.

6

Upper Lift Tube to Bracket from "B" Port of Control Valve, Page 8-15

1шт.

7

Lift Hoses from Bracket to Tees and Manifolds at Shroud, Pg 8-15

1шт.

8

Crossover Lift Tubes, Page 8-17

1шт.

9

Left-Hand and Right-Hand Lift Hoses from "B" Port of Control Valve to Rod End of Lift Cylinders, Page 8-17

1шт.

10

Left-Hand and Right-Hand Lift Hoses from "A" Port of Control Valve to Closed End of Lift Cylinders, Page 8-17

1шт.

11

Right-Hand Tube to Closed End of Lift Cylinder, Page 8-17

1шт.

12

Left-Hand Tube to Closed End of Lift Cylinder, Page 8-17

1шт.

13

Right-Hand Tube to Rod End of Lift Cylinder, Page 8-17

1шт.

14

Left-Hand Tube to Rod End of Lift Cylinder, Page 8-17

1шт.

15

Tilt Tube from "A" Port of Control Valve, Page 8-21

1шт.

16

Tilt Tube from "B" Port of Control Valve, Page 8-21

1шт.

17

Lower Intermediate Tilt Tube from "A" Port of Control Valve, Page 8-21

1шт.

18

Upper Intermediate Tilt Tube from "B" Port of Control Valve, Page 8-21

1шт.

19

Right-Hand Tilt Tube to Front of Shroud from "A" Port of Control Valve, Page 8-21

1шт.

20

Left-Hand Tilt Tube to Front of Shroud from "B" Port of Control Valve, Page 8-21

1шт.

21

Hoses from Shroud to Tilt Cylinders, Page 8-23, 8-25

1шт.
