(1-18) - PICTORIAL INDEX, BASIC EQUIPMENT HYDRAULICS - SUPPLY AND RETURN

Запчасти Case 1550 (1-18) - PICTORIAL INDEX, BASIC EQUIPMENT HYDRAULICS - SUPPLY AND RETURN (00) - PICTORIAL INDEX

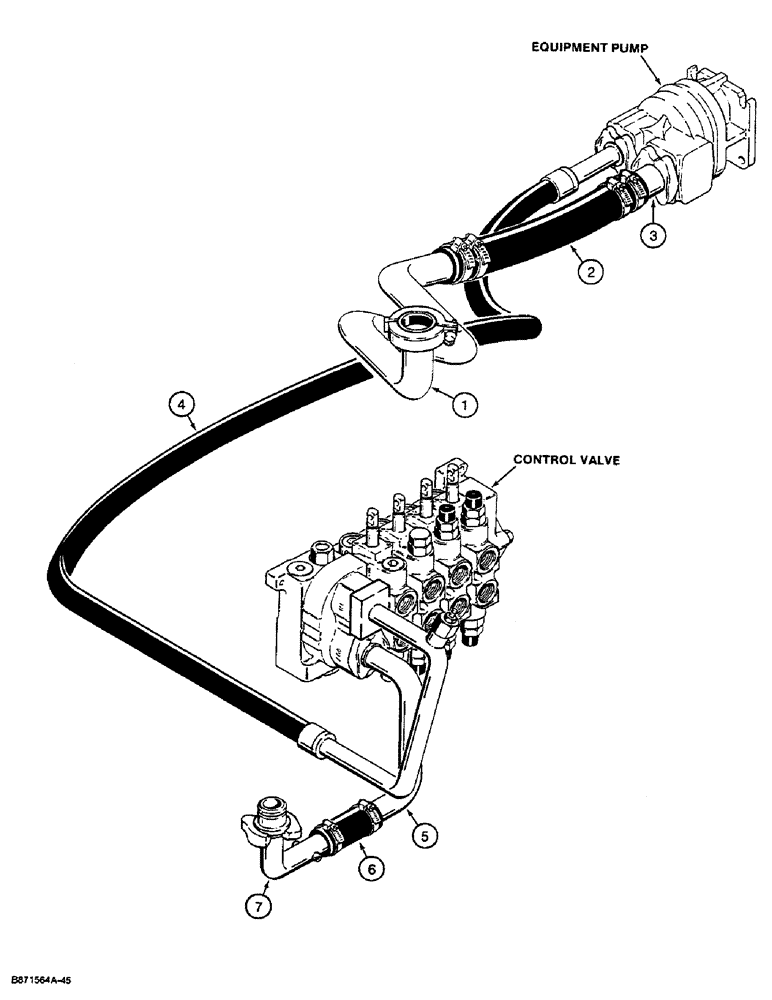

Схема запчастей Case 1550 - (1-18) - PICTORIAL INDEX, BASIC EQUIPMENT HYDRAULICS - SUPPLY AND RETURN (00) - PICTORIAL INDEX
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Supply Tube At Reservoir, Page 8-9

1шт.

2

Supply Hose To Pump, Page 8-9

1шт.

3

Supply Tube At Pump, Page 8-9

1шт.

4

Return Hose From Pump, Page 8-11

1шт.

5

Return Tube At Control Valve, Page 8-11

1шт.

6

Return Hose To Reservoir, Page 8-11

1шт.

7

Return Tube To Reservoir, Page 8-11

1шт.

Выбрано товаров: 0
