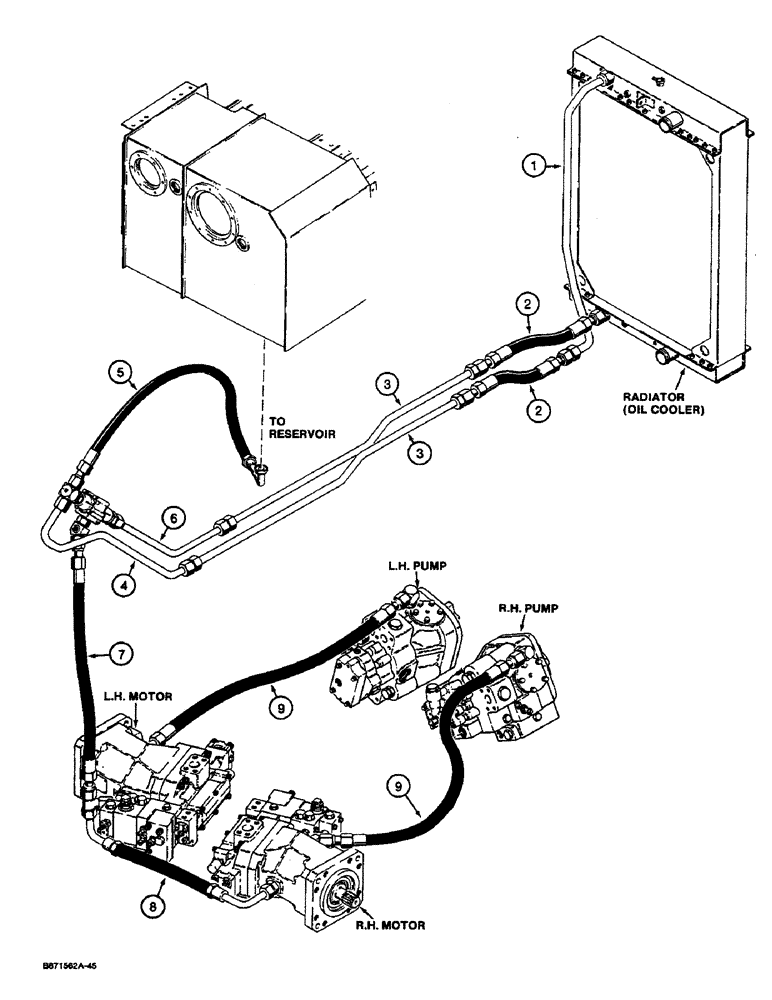

Запчасти Case 1550 (1-14) - PICTORIAL INDEX, TRANSMISSION COOLING LINES (00) - PICTORIAL INDEX

1

Tube at Top of Oil Cooler, Page 6-57

1шт.

2

Front Hoses to and from Oil Cooler, Under Engine, Page 6-57

1шт.

3

Intermediate Tubes to and from Oil Cooler, Under Flywheel Housing and Pump Drive Assembly, Page 6-57

1шт.

4

Tube to Thermal Bypass Valve from Oil Cooler, Page 6-57

1шт.

5

Hose to Reservoir from Thermal Bypass Valve, Page 6-57

1шт.

6

Tube to Oil Cooler from Thermal Bypass Valve, Page 6-57

1шт.

7

Hose from Left-Hand Motor to Thermal Bypass Valve, Page 6-59

1шт.

8

Drain Hose, Right-Hand Motor to Left-Hand Motor, Page 6-59

1шт.

9

Drain Hoses to Motors from Pumps, Page 6-59

1шт.
