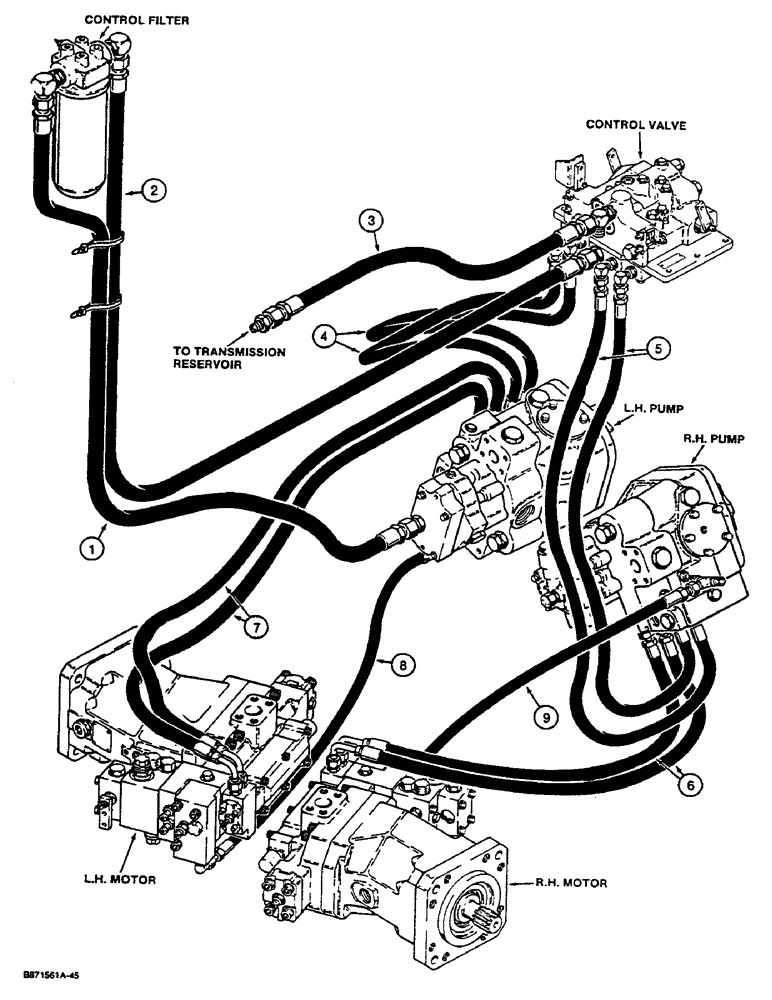

Запчасти Case 1550 (1-12) - PICTORIAL INDEX, TRANSMISSION CONTROL HYDRAULICS FILTER TO CONTROL VALVE, PUMPS & MOTORS (00) - PICTORIAL INDEX

1

Hose from Left-Hand Control Pump to Filter In Port, Page 6-53

1шт.

2

Hose from Left-Hand Filter Out Port to Control Valve, Page 6-53

1шт.

3

Return Hose from Control Valve to Reservoir, Page 6-53

1шт.

4

Hoses from Control Valve to Left-Hand Piston Pump, Page 6-55

1шт.

5

Hoses from Control Valve to Right-Hand Piston Pump, Page 6-55

1шт.

6

Hoses from Right-Hand Piston Pump to Right-Hand Motor, Ports 1 and 2, Page 6-55

1шт.

7

Hoses from Left-Hand Piston Pump to Left-Hand Motor, Ports 1 & 2, Page 6-55

1шт.

8

Charge Pressure Hose, Left-Hand Pump to Left-Hand Motor, Pg 6-55

1шт.

9

Charge Pressure Hose, Right-Hand Pump to Right-Hand Motor, Page 6-55

1шт.
