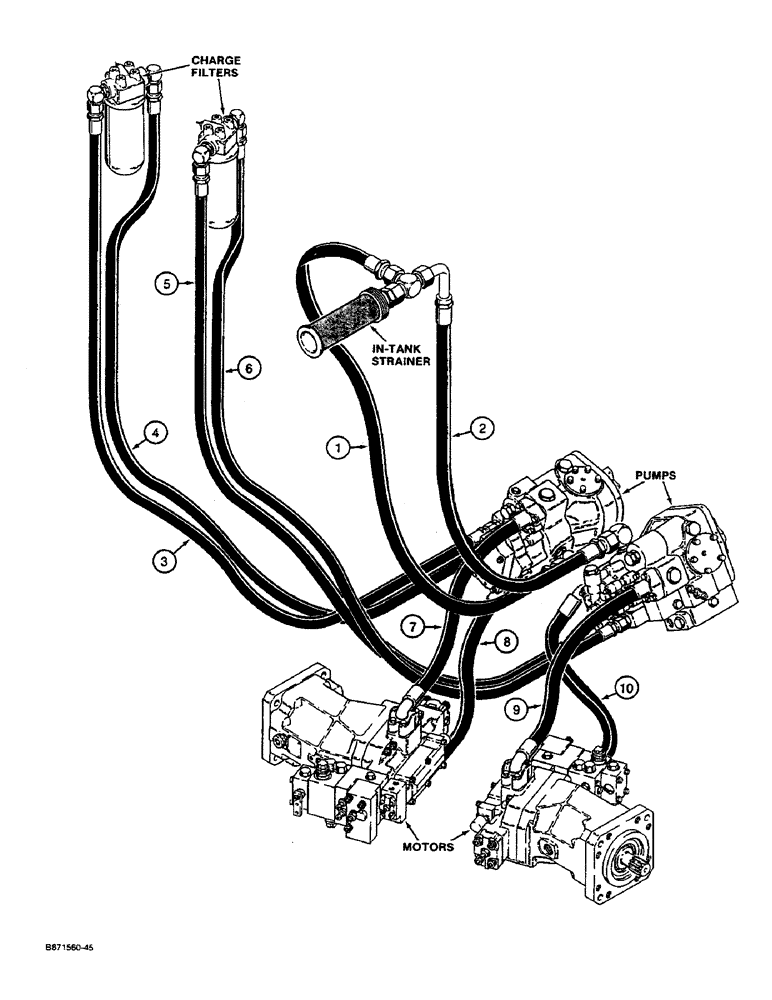

Запчасти Case 1550 (1-10) - PICTORIAL INDEX, TRANSMISSION CHARGE AND DRIVE HYDS RESERVOIR TO PUMP, FILTERS & MOTOR (00) - PICTORIAL INDEX

1

Hose from In-Tank Filter to Left-Hand Piston Pump, Pg 6-45, 6-51

1шт.

2

Hose from In-Tank Filter to Right-Hand Piston Pump, Pg 6-45, 6-49

1шт.

3

Hose from Left-Hand Charge Pump to Left-Hand Filter In Port, Page 6-45, 6-49

1шт.

4

Hose from Left-Hand Filter Out Port to Left-Hand Charge Pump, Page 6-45, 6-47, 6-51

1шт.

5

Hose from Right-Hand Charge Pump to Right-Hand Filter In Port, Page 6-47, 6-51

1шт.

6

Hose, from Right-Hand Filter Out Port to Right-Hand Charge Pump, Page 6-47, 6-51

1шт.

7

Hose from Upper Port to Left-Hand Piston Pump to Upper Port of Left-Hand Motor, Page 6-39

1шт.

8

Hose from Lower Port to Left-Hand Piston Pump to Lower Port of Left-Hand Motor, Page 6-39

1шт.

9

Hose from Upper Port of Right-Hand Piston Pump to Upper Port of Right-Hand Motor, Page 6-39

1шт.

10

Hose from Lower Port of Right-Hand Piston Pump to Lower Port of Right-Hand Motor, Page 6-39

1шт.
