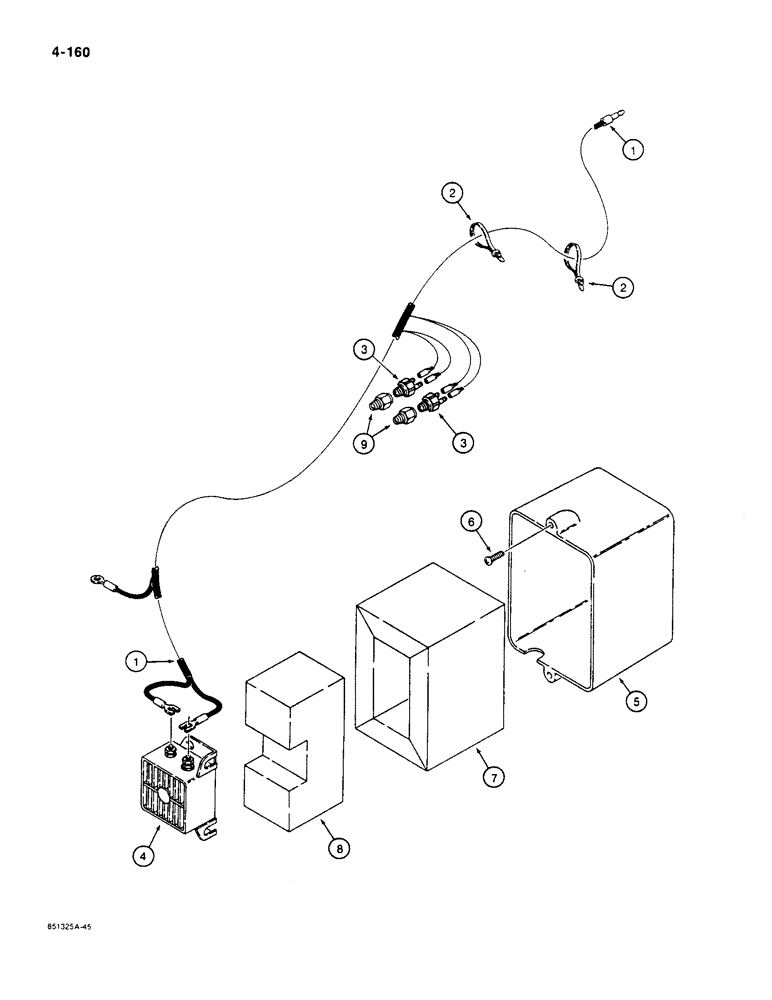

Запчасти Case 1455B (4-160) - BACKUP ALARM, USED ON MODELS WITH REAR FILL TANKS (04) - ELECTRICAL SYSTEMS

1

R50072

HARNESS

- backup alarm to pressure switches at transmission and to main rear wiring harness

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

3

D139904

SWITCH

- pressure, at transmission hydraulic lines ( replaced D99796 )

2шт.

4

L112318

ALARM

BACKUP ALARM - attaches to hinged side of rear access door

1шт.

5

R50647

BOX

- plastic, backup alarm

1шт.

6

187-1308

SELF-TAP SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

SCREW - self-tapping, Phillips pan head, 1/4" - 20 NC x 3/4", plated

2шт.

7

R50648

FOAM

SEAL - foam, backup alarm box

1шт.

8

REF

INSTRUCTION

PAD - foam, backup alarm, 2" (50 mm) x 2-1/2" (65 mm) x 10" (255 mm), cut a double thickness from R30870 bulk pad, see below

1шт.

9

R52651

FITTING

SNUBBER - pressure switch

2шт.

R30870

PAD

- bulk, 54" (1372 mm) x 72" (1829 mm) x 1" (25 mm)

1шт.
