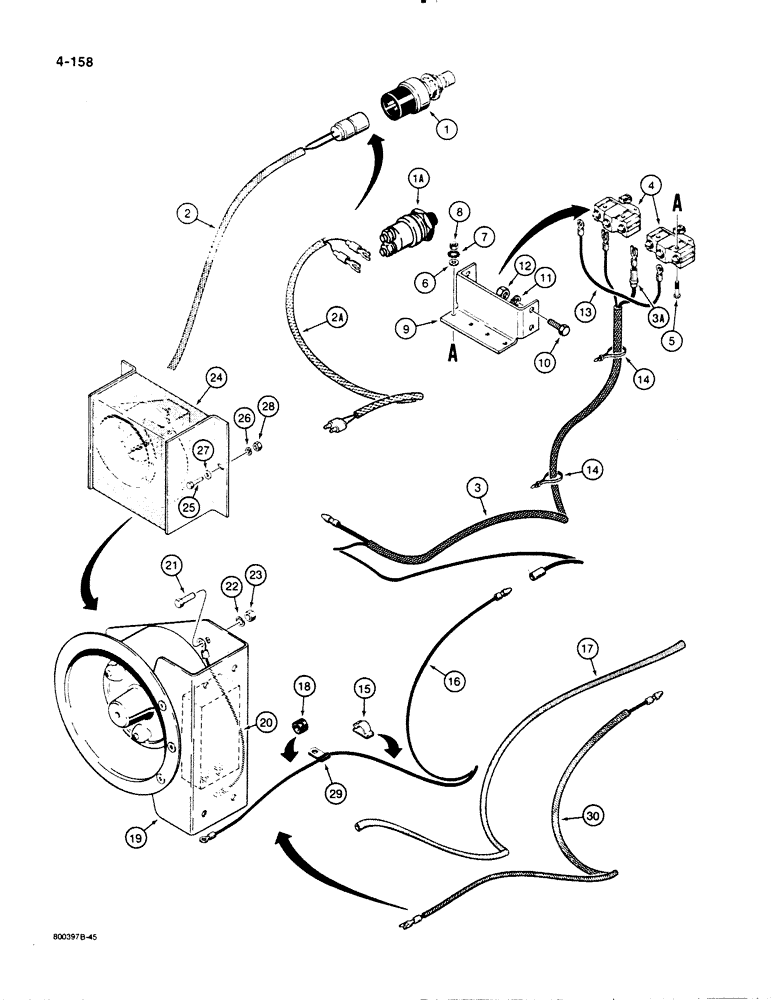

Запчасти Case 1455B (4-158) - BACKUP ALARM, USED ON MODELS WITH TOP FILL TANKS (04) - ELECTRICAL SYSTEMS

1

R40432

SWITCH

- push button, uses plug connection, if used

1шт.

1a

D34924

SWITCH

- push button, uses spade-type connection, if used

1шт.

2

R40985

ELECTRICAL WIRE

HARNESS - starter switch, with plug connector, if used

1шт.

2a

R27209

ELECTRICAL WIRE

HARNESS - starter switch, with spade-type connectors, if used

1шт.

3

R45496

HARNESS

- backup alarm switches to main rear wiring harness and backup alarm wire, Includes: Ref. 3A

1шт.

3a

223-26

FUSE,5 Amp, Type 3AG

- harness, 5 amp, AGC

1шт.

4

L54683

SWITCH

- backup alarm

2шт.

5

169-144

SCREW,Sl Fil Hd, #6 - 32 x 1 1/4"

MACHINE SCREW - Fillister head, No. 6 - 32 NC x 1-1/4", plated

4шт.

6

195-507

WASHER,#6

- flat, No. 6, plated

4шт.

7

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

4шт.

8

129-15

NUT,#6-32

4шт.

9

R33404

BRACKET

- mounting, alarm switches

1шт.

10

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

12

12-101

PIPE

NUT - hex, 1/4" - 20 NC, plated

4шт.

13

R32483

ELECTRICAL WIRE

WIRE - alarm switch to alarm switch

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

15

F43611

CLIP

- adhesive, if used

2шт.

16

R43776

ELECTRICAL WIRE

WIRE - to backup alarm, 36" (914 mm) long, no longer used, order R45957 wire (ref. 30) and R45496 wire (ref. 3)

1шт.

17

R43777

LOOM

- used with R43776 wire (ref. 16), no longer used

1шт.

18

A23870

GROMMET

- wire, at rear cover plate

1шт.

19

S223033

BUZZER

BACKUP ALARM - bolts to outside of rear cover plate

1шт.

20

R34956

ELECTRICAL WIRE

WIRE - ground, backup alarm

1шт.

21

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

22

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

23

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

3шт.

24

R43584

GUARD

- backup alarm

1шт.

25

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

27

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

29

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- wire, bolts to backup alarm guard

1шт.

30

R45957

ELECTRICAL WIRE

WIRE - to backup alarm, 23" (584 mm) long, route with main rear wiring harness, see rear wiring Fig. 4-130

1шт.
