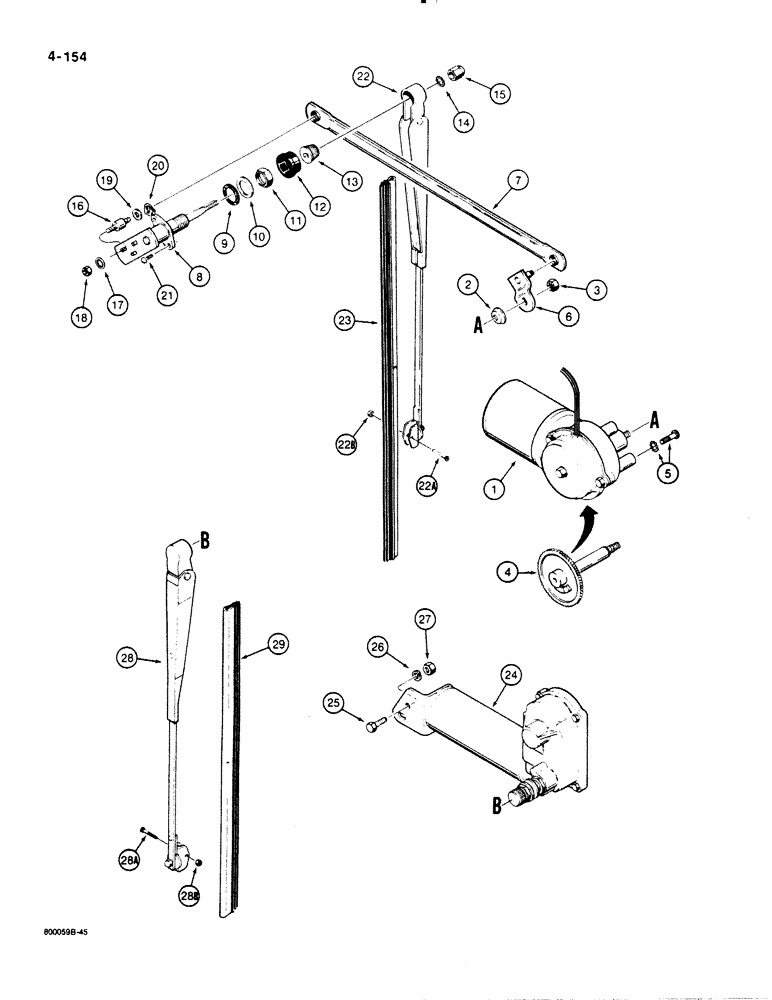

Запчасти Case 1455B (4-154) - CAB WINDSHIELD WIPERS (04) - ELECTRICAL SYSTEMS

F93654

WIPER MOTOR

MOTOR ASSEMBLY - front windshield wiper, Includes: Ref. 1 - 4

1шт.

See Figure 4-152 for motor wiring connection.

1шт.

1

NSS

NOT SOLD SEPARAT

MOTOR - windshield wiper

1шт.

2

D71411

WASHER

SPRING - Belleville

1шт.

3

F44452

LOCK NUT

- special locking

1шт.

4

N13124

PINION

GEAR - drive, plastic, with shaft

1шт.

5

D72849

SCREW

- with lock washer

3шт.

6

A36091

ARM

- drive

1шт.

7

N6548

LINK

- wiper arm

1шт.

D72848

SHAFT

PIVOT ASSEMBLY - windshield wiper, Includes: Ref. 8 - 18

1шт.

8

NSS

NOT SOLD SEPARAT

SHAFT - windshield wiper pivot

1шт.

9

D71417

SPECIAL WASHER

WASHER - felt

1шт.

10

D71418

WASHER

- steel, flat

1шт.

11

D71419

NUT

- special

1шт.

12

D71420

CAP

COVER - rubber

1шт.

13

D71421

TOOL

BUSHING - with teeth

1шт.

14

193-95

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

15

D71422

NUT

- dome, shaft

1шт.

16

D73642

PIN

- special

1шт.

17

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

18

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

19

A22431

WASHER

- spacer

2шт.

20

D71414

CLIP

RETAINER - spring clip

2шт.

21

187-1738

SCREW - self-tapping, No. 10 - 32 NC x 1/2"

2шт.

22

A165060

WIPER ARM

ARM - wiper, 18" long, Includes: Ref. 22A and 22B

1шт.

22a

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

MACHINE SCREW - Pan head slotted, No. 5 - 40 NC x 1/2", plated, blade attaching

1шт.

22b

129-14

NUT,#5-40

Blade attaching #5-40

1шт.

23

A42580

WIPER BLADE,203.2mm L

BLADE - wiper, 16" (406 mm) long

1шт.

24

L33839

ELECTRIC MOTOR

MOTOR - rear window wiper, 24 V

1шт.

25

182-532

SCREW,Sl Pan Hd, #10 - 32 x 3/4"

- self-tapping, No. 10 - 32 NC x 3/4", plated

1шт.

26

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

27

129-37

NUT,#10-32

1шт.

28

D87118

ARM

- wiper, 16" long, Includes: Ref. 28A and 28B

1шт.

28a

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

MACHINE SCREW - Pan head slotted, No. 5 - 40 NC x 1/2", plated, blade attaching

1шт.

28b

129-14

NUT,#5-40

Blade attaching #5-40

1шт.

29

A42580

WIPER BLADE,203.2mm L

BLADE - wiper, 16" (406 mm) long

1шт.
