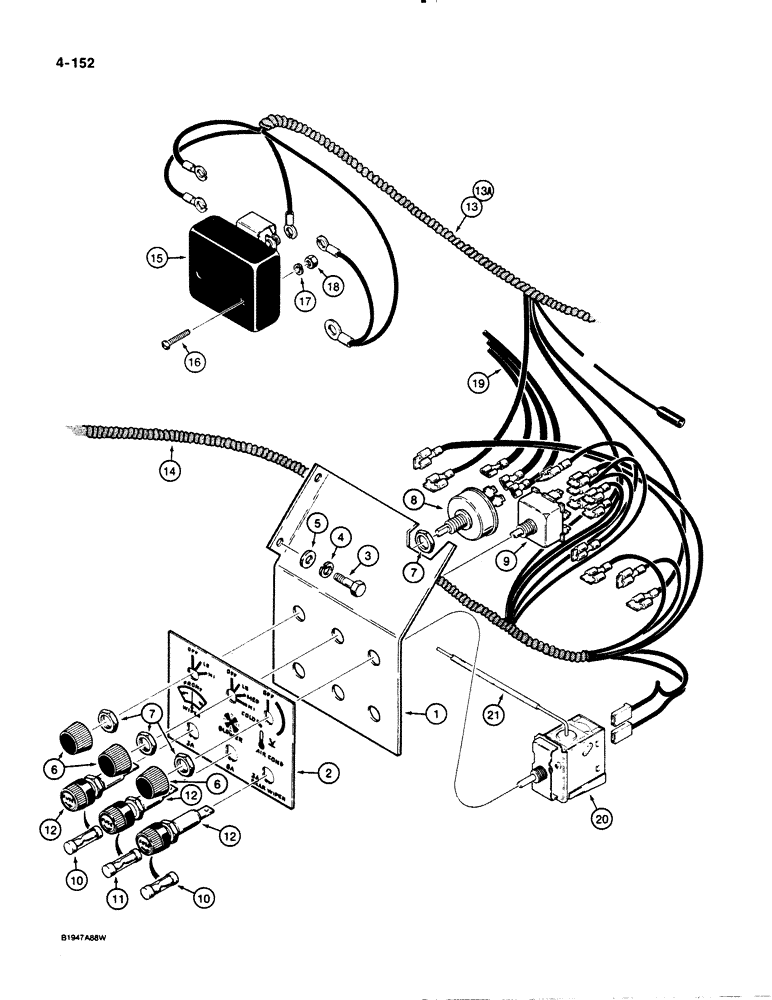

Запчасти Case 1455B (4-152) - CAB CONTROL PANEL AND WIRING, PRESSURIZED CAB (04) - ELECTRICAL SYSTEMS

1

R44118

BRACKET

- control panel

1шт.

2

321-5854

LARGE PLATE

PLATE - control panel

1шт.

3

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

5

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

6

A42578

KNOB

- controls

2-3шт.

7

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- switch

3-4шт.

8

F43359

SWITCH

- front windshield wiper

1шт.

9

A42622

SWITCH

- blower

1шт.

10

223-38

FUSE,3 Amp, Type 3AG

- 3 amperes, 3AG3, front and rear windshield wipers

2шт.

11

223-35

FUSE,8 Amp, Type 3AG

- 8 amperes, 3AG8, blower

1шт.

12

A22874

HOLDER

- fuse

3шт.

13

R44263

HARNESS

- from tractor instrument panel to cab control panel and relay switch, used on models without flood lamps on cab frame

1шт.

13a

R47447

HARNESS

- from tractor instrument panel to cab control panel and relay switch, used on models with flood lamps on cab frame

1шт.

14

R44264

HARNESS

- cab accessory, to blower switch, motor, and resistor, see Fig. 9-548 for connections at motor and resistor

1шт.

15

R44286

RELAY

- cab, electrical accessories

1шт.

16

182-549

SCREW,Slotted Pan Hd, #8-32 x 3/4"

- pan head slotted, No. 8 - 32 NC x 3/4", plated

2шт.

17

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

18

129-16

NUT,#8-32

2шт.

19

N7781

ELECTRICAL WIRE

HARNESS - front windshield wiper switch to front windshield wiper

1шт.

20

L73646

SWITCH

- air conditioning

1шт.

21

F63719

TUBE

- cover, switch connector

1шт.
