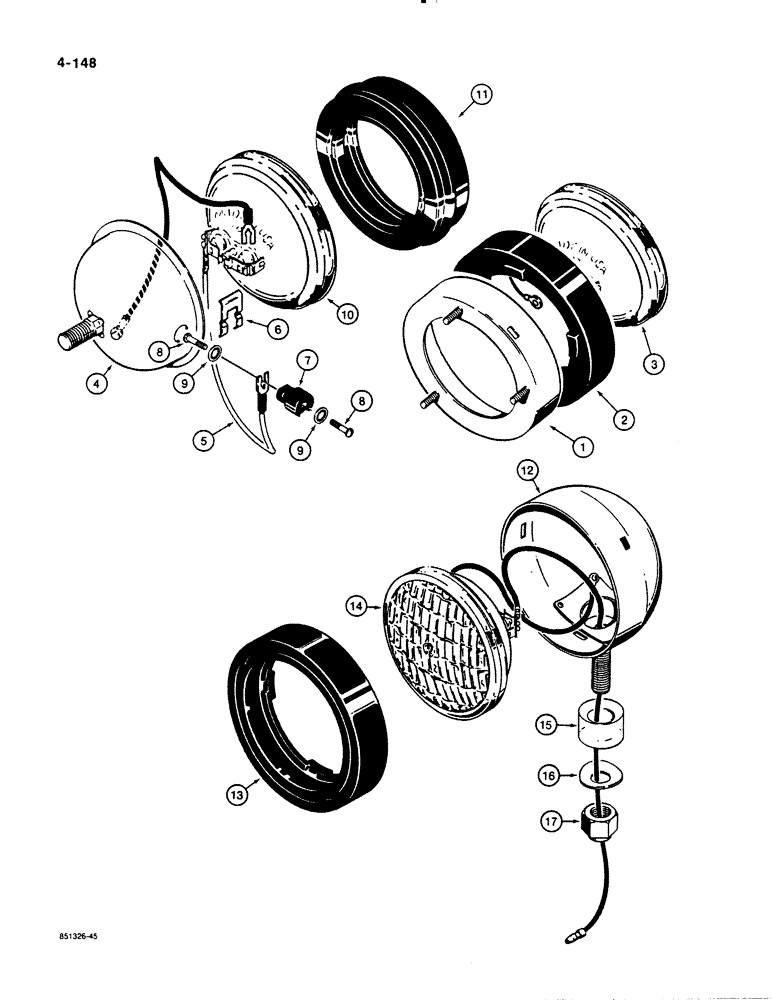

Запчасти Case 1455B (4-148) - LAMP ASSEMBLIES, R31131 HEADLAMP ASSEMBLY - GRILLE-MOUNTED (04) - ELECTRICAL SYSTEMS

R31131

LAMP

HEADLAMP ASSEMBLY - 24 volt, grille-mounted, used on models without ROPS canopy or cab, Includes: Ref. 1 - 3

1шт.

1

L30510

FRAME

- lamp

1шт.

2

A25213

RETAINER

RING - retaining, lamp

1шт.

3

L10499

LAMP

BULB - sealed beam, No. 4589

1шт.

L45149

HEADLIGHT

LAMP ASSEMBLY - 24 volt, with mounting stud on rear of shell, used on models without ROPS canopy or cab, Includes: Ref. 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

SHELL - lamp, with internal wire, L45149 assy

1шт.

5

A40033

ELECTRICAL WIRE

bulb to insulator, L45149 lamp assy

1шт.

6

10927

SPRING

CLIP - retainer, insulator, L45149 lamp assy

1шт.

7

B50293

TERMINAL CONNECTOR

wire connection, L45149 lamp assy

1шт.

8

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

MACHINE - pan head slotted, No. 8 - 32 NC x 1/4", L45149 lamp assy

2шт.

9

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, , L45149 lamp assy Int Tooth, #8

2шт.

10

L10499

LAMP

BULB - sealed beam, No. 4589, L45149 assy

1шт.

11

D31441

RETAINER

bulb to shell, L45149 lamp assy

1шт.

R51415

LAMP

24 volt, with mounting stud on side of shell, adjustable mounting, L45149 lamp assy, Includes: Ref. 12 - 17

1шт.

12

NSS

NOT SOLD SEPARAT

SHELL - with internal wire, L45149 lamp assy

1шт.

13

A25213

RETAINER

bulb to shell, L45149 lamp assy

1шт.

14

L10499

LAMP

BULB - sealed beam, No. 4589, assy

1шт.

15

D370448

BUSHING - pivot, L10499 lamp assy

1шт.

16

D37049

WASHER

BELLEVILLE SPRING - special, L10499 lamp assy

1шт.

17

131-28

LOCK NUT,1/2"-20, GB

hex, self-locking, 1/2" - 20 NF, plated, L10499 lamp assy

1шт.
