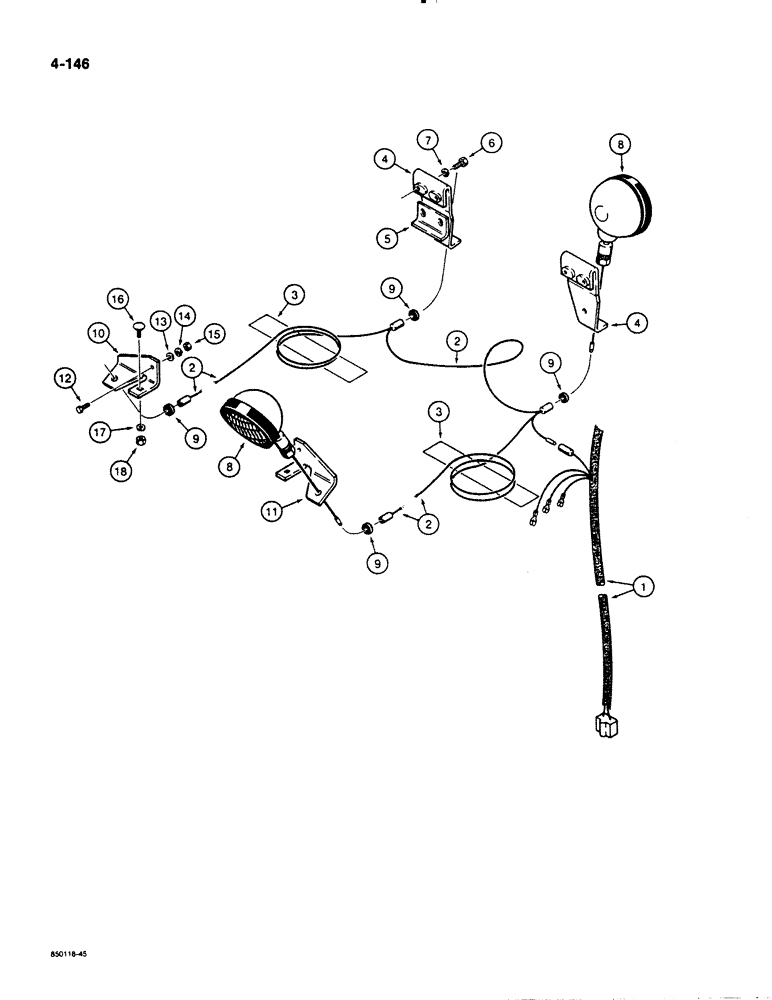

Запчасти Case 1455B (4-146) - LAMPS AND WIRING, MODELS WITH ROPS CAB (04) - ELECTRICAL SYSTEMS

1

R47447

HARNESS

- main wiring, cab, connects to R47446 harness from starter solenoid and circuit breaker, see Fig. 4-130 or 4-134

1шт.

For additional main cab harness connections, see Figure 4-152.

1шт.

2

R47448

ELECTRICAL WIRE

WIRE - cab lamps

1шт.

3

NSS

NOT SOLD SEPARAT

TAPE - wire retaining, vinyl covered, buy locally

1шт.

4

R47401

SUPPORT

BRACKET - front lamp mounting

2шт.

5

R47405

SUPPORT

CLAMP - bracket retaining, front lamps

2шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

R51415

LAMP

ASSEMBLY - flood, parts list Fig. 4-148

4шт.

9

353-700

BUSHING

GROMMET - lamp wire, 3/8" hole size

4шт.

10

R47403

BRACKET

- rear lamp mounting, left-hand

1шт.

11

R47404

BRACKET

- rear lamp mounting, right-hand

1шт.

12

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

13

195-103

WASHER,5/16"

- flat, , plated 5/16"

2шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

2шт.

16

111-110

SCREW,Short NK, 1/4"-20 x 7/8", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 7/8", G2

2шт.

17

195-102

WASHER,1/4"

- flat, , plated 1/4"

2шт.

18

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, plated

2шт.
