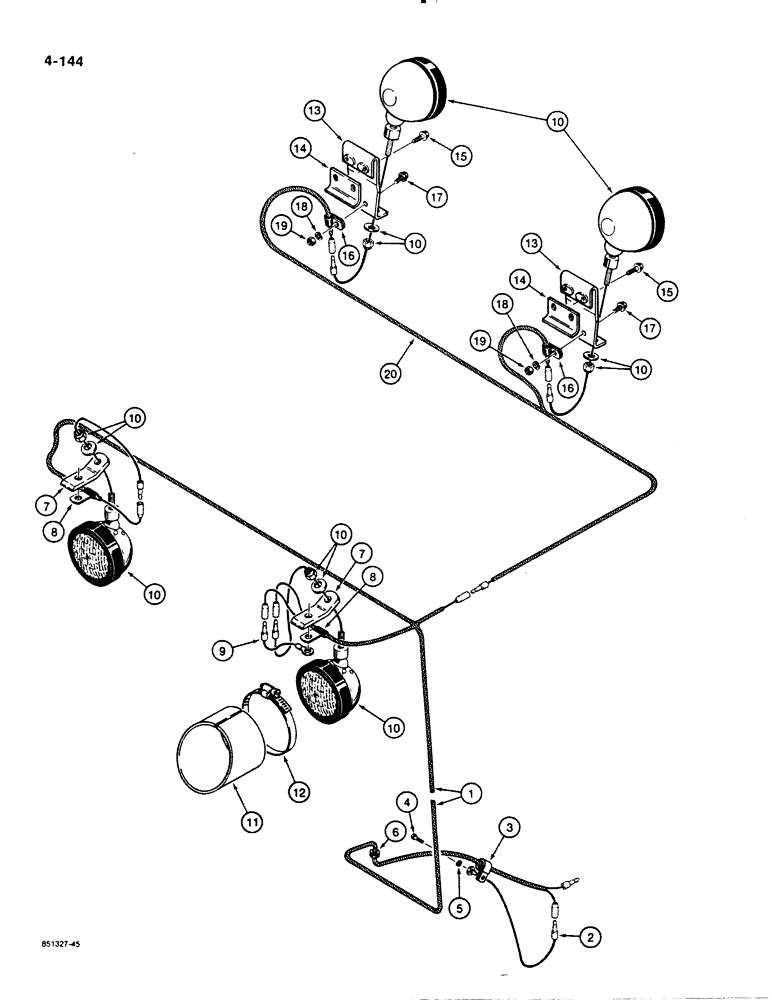

Запчасти Case 1455B (4-144) - LAMPS AND WIRING, MODELS WITH ROPS CANOPY (04) - ELECTRICAL SYSTEMS

1

R47470

HARNESS

- rear lamps

1шт.

2

R47807

ELECTRICAL WIRE

WIRE - ground, rear lamp harness, lower

1шт.

3

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- harness, on hydraulic reservoir

1шт.

4

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

A23870

GROMMET

- rear harness, through top battery cover

1шт.

7

R51325

SUPPORT

BRACKET - rear lamp mounting, use rear screen mounting hardware

2шт.

8

49832

CLAMP

- harness, right-hand rear lamp only

1шт.

9

R51324

ELECTRICAL WIRE

WIRE - ground, rear lamp harness, at right-hand rear lamp

1шт.

10

R51415

LAMP

ASSEMBLY - flood, parts list Fig. 4-148

4шт.

11

R51323

GUARD

SHIELD - rear lamp

2шт.

12

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

CLAMP - adjustable, lamp shield to lamp

2шт.

13

R47401

SUPPORT

BRACKET - front lamp mounting

2шт.

14

R47405

SUPPORT

CLAMP - bracket retaining

2шт.

15

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

16

49851

SHIELD

- front lamp, Serial Range: harness-bracket

2шт.

17

121-230

SERRATED BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

20

R47471

HARNESS

- front lamps

1шт.
