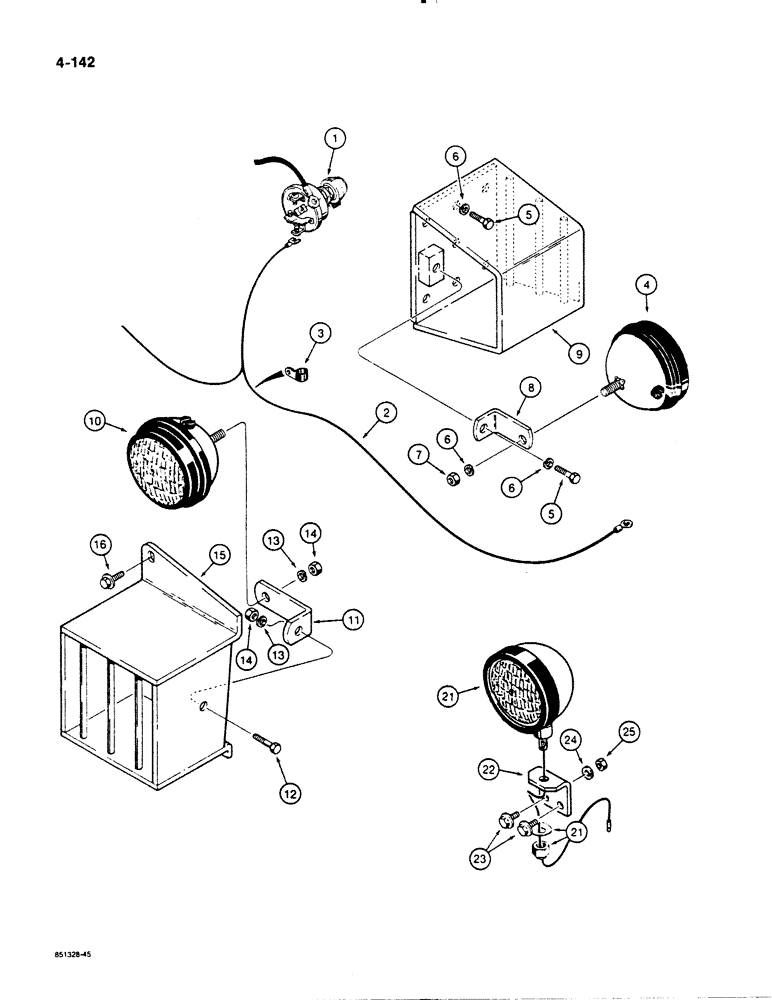

Запчасти Case 1455B (4-142) - SIDE AND REAR LAMPS AND WIRING, AUXILIARY SIDE LAMPS, IF USED (04) - ELECTRICAL SYSTEMS

1

R27539

SWITCH

lamp, on instrument panel

1шт.

2

R29240

HARNESS

lamp switch to side lamps, route with main harnesses through clamps below instrument panel

1шт.

3

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

side lamp harness, attaches to firewall

1шт.

4

L45149

HEADLIGHT

LAMP ASSEMBLY - 24 volt, side, parts list Fig. 4-148

2шт.

5

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

6шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

7

129-1205

NUT - hex, 1/2" - 13 NC, plated

2шт.

8

R27714

BRACKET

side lamp mounting

2шт.

9

R27720

GUARD ASSY.

side lamp

2шт.

10

L45149

HEADLIGHT

LAMP ASSEMBLY - 24 volt, rear, models with top fill fuel and hydraulic tanks, parts list Fig. 4-148, models w/o rops canopy or cab

1шт.

11

R30019

BRACKET

rear lamp mounting, models w/o rops canopy or cab used on w/ top fill tanks

1шт.

12

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Rear lamps- models w/o ROPS or cab used w/ top rill tanks Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Rear lamps- models w/o ROPS canopy or cab used w/ top fill tanks 1/2"

2шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

Rear lamps- models w/o ROPS canopy or cab used w/ top fill tanks 1/2"-13, G5

2шт.

15

R30018

GUARD

rear lamps- models w/o rops canopy or cab used w/ top fill tanks

1шт.

16

121-234

BOLT,Hex Flg, 3/8"-16 x 1", G8, Full Thd

Rear lamps- models w/o ROPS canopy or cab used w/ top fill tanks Hex Flg, 3/8"-16 x 1", G8, Full Thd

2шт.

21

R51415

LAMP

ASSEMBLY - 24 volt, rear, models with rear fill fuel and hydraulic tanks, parts list Fig. 4-148, models w/o rops canopy or cab

1шт.

22

R47801

SUPPORT

BRACKET - rear lamp mounting, models w/o rops canopy or cab used w/ top fill tanks

1шт.

23

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange head, 3/8" - 16 NC x 3/4", grade 8, Teflon coated, rear lamps- models w/o rops canopy or cab used w/ top fill tanks

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Rear lamps- models w/o ROPS canopy or cab used w/ top fill tanks 3/8"

1шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Rear lamps- models w/o ROPS canopy or cab used w/ top fill tanks 3/8"-16, G5

1шт.
