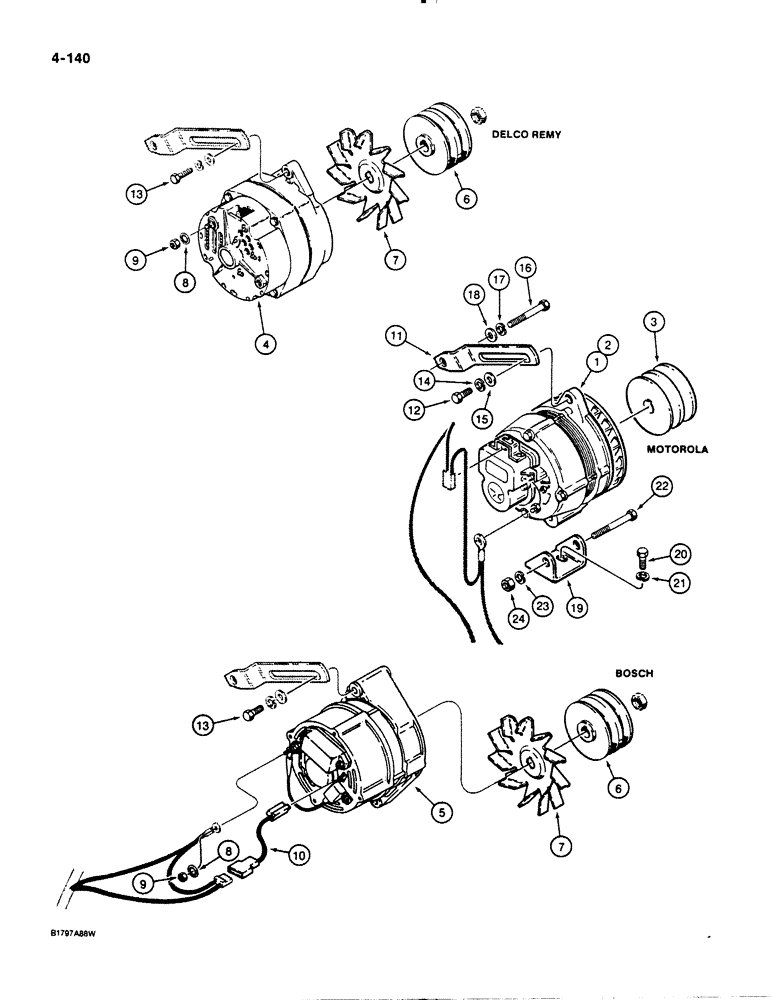

Запчасти Case 1455B (4-140) - ALTERNATOR AND MOUNTING PARTS, MOTOROLA ALTERNATOR, IF USED (04) - ELECTRICAL SYSTEMS

1

R36588

ALTERNATOR

Motorola, 16 amp, includes fan, parts list Figs. 4-82 and 4-84, if used

1шт.

2

R36587

ALTERNATOR

- Motorola, 42 amp, includes fan, parts list Fig.s 4-86 and 4-88, if used

1шт.

3

A41361

PULLEY

Motorola alternators only

1шт.

4

REF

INSTRUCTION

ALTERNATOR - Delco-Remy, 40 amp, for correct assembly and components see Figs. 4-90 and 4-92, if used

1шт.

5

A186124

ALTERNATOR

Bosch, 45 amp, parts list Fig. 4-94, if used

1шт.

6

L59716

PULLEY

Delco-Remy or Bosch alternator

1шт.

7

221425R1

FAN

Delco-Remy or Bosch alternator

1шт.

8

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, , Output terminal, Delco-Remy or Bosch alternator Int Tooth, 1/4"

1шт.

10

R53471

ELECTRICAL WIRE

adapter to front harness, Bosch alternator only

1шт.

11

R40122

STRAP

alternator adjusting, parts used w/ all alternators

1шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Motorola alternators only, parts used w/ all alternators Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

13

813-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex head, 8 mm - 1.25 x 25 mm (8.8), parts used w/ all alternators

1шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Parts used w/ all alternators 5/16"

1шт.

15

D41740

WASHER

flat, 3/8", hardened, parts used w/ all alternators

1шт.

16

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Parts used w/ all alternators Hex, 3/8"-16 x 2 1/2", G5

1шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Parts used w/ all alternators 3/8"

1шт.

18

95-6

WASHER,3/8"

- flat, , parts used w/ all alternators 3/8"

1шт.

19

A160391

BRACKET

alternator mounting, parts used w/ all alternators

1шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Parts used w/ all alternators Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Parts used w/ all alternators 3/8"

2шт.

22

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

Parts used w/ all alternators Hex, 3/8"-16 x 3", G5

1шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Parts used w/ all alternators 3/8"

1шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Parts used w/ all alternators 3/8"-16, G5

1шт.
