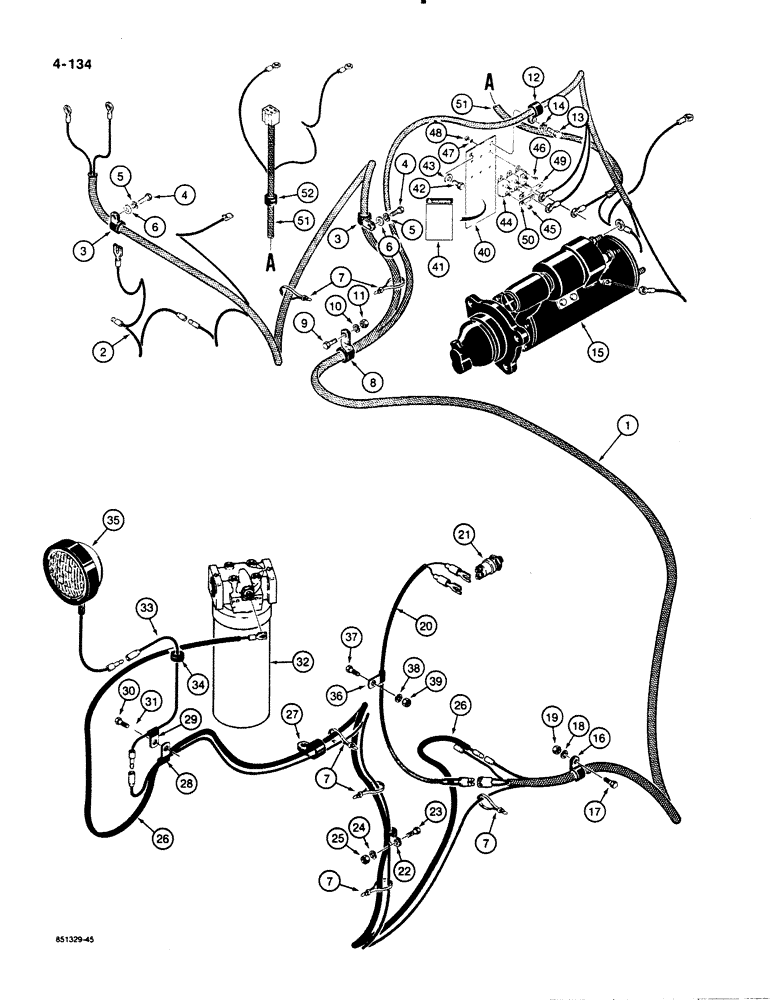

Запчасти Case 1455B (4-134) - REAR ELECTRICAL WIRING, HARNESS TO STARTER, INSTRUMENT PANEL & REAR LAMP MODELS W/REAR-FILLED TANK (04) - ELECTRICAL SYSTEMS

1

R43652

HARNESS

- wiring, rear

1шт.

2

R43547

CABLE

WIRE - with diodes for alternator and bulb check

1шт.

Bulb check definition, oil filter restriction indicator lamp

1шт.

3

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- harness, below instrument panel

2шт.

4

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

8

R43926

CLAMP

- twist-type, rear of firewall

1шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

12

S86530

CLAMP

- harness, above starter

1шт.

13

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

15

REF

INSTRUCTION

STARTER - for correct assembly and components see Figs. 4-96 through 4-116, for mounting hardware see Fig. 4-124 or 4-126

1шт.

16

D30474

CLAMP

- harness, inner right-hand side of main frame, under control tower

1шт.

17

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

18

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

19

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

20

R27209

ELECTRICAL WIRE

WIRE - starter switch

1шт.

21

D34924

SWITCH

- starter, push button

1шт.

22

49838

CLAMP

- harness wires, below master disconnect switch

1шт.

23

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

25

12-103

NUT - hex, 3/8" - 16 NC, plated

2шт.

26

R50945

ELECTRICAL WIRE

WIRE - transmission filter to rear harness

1шт.

27

51200320

CLAMP

- filter wire, use battery support mounting hardware

1шт.

28

49845

CLAMP

- lower, holds rear harness wire and filter wire

1шт.

29

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- upper, holds rear lamp wire, if used

1шт.

30

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

32

REF

INSTRUCTION

FILTER - transmission, see Fig. 6-282 for correct assembly and components, mounts in battery area at rear of machine

1шт.

33

R51427

ELECTRICAL WIRE

WIRE - to rear lamp

1шт.

34

A23870

GROMMET

- harness, through rear battery cover

1шт.

35

R51415

LAMP

- rear, models without ROPS canopy or cab, parts list Fig. 4-148, mounting parts on Fig. 4-142

1шт.

36

49838

CLAMP

- starter switch harness to control tower

1шт.

37

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

38

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

39

9635082

NUT,5/16" - 18, Gr 5

1шт.

40

R51820

PLATE

- circuit breaker and decal mounting, includes decal, Includes: Ref. 41

1шт.

41

321-6718

DECAL

- Warning, jump start procedure

1шт.

42

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

43

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

1шт.

44

R45475

BREAKER

CIRCUIT BREAKER - 40 amp; 2 used without cab, 3 used with cab, Includes: Ref. 45

2-3шт.

45

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex, self-locking, No. 10 - 32 NF

4-6шт.

46

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

MACHINE SCREW - No. 8 - 32 NC x 3/8", plated

4-6шт.

47

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

4-6шт.

48

129-16

NUT,#8-32

4-6шт.

49

R45467

PLATE ASSY.

PLATE - circuit breaker retaining, with 3 slots

1шт.

50

R45468

PLATE ASSY.

PLATE - circuit breaker retaining, with 2 slots

1шт.

51

R47446

HARNESS

- circuit breaker to cab wiring harness

1шт.

For cab main wiring harness, see Figures. 4-146 and 4-152.

1шт.

52

353-703

GROMMET

BUSHING - harness, at instrument panel

1шт.
