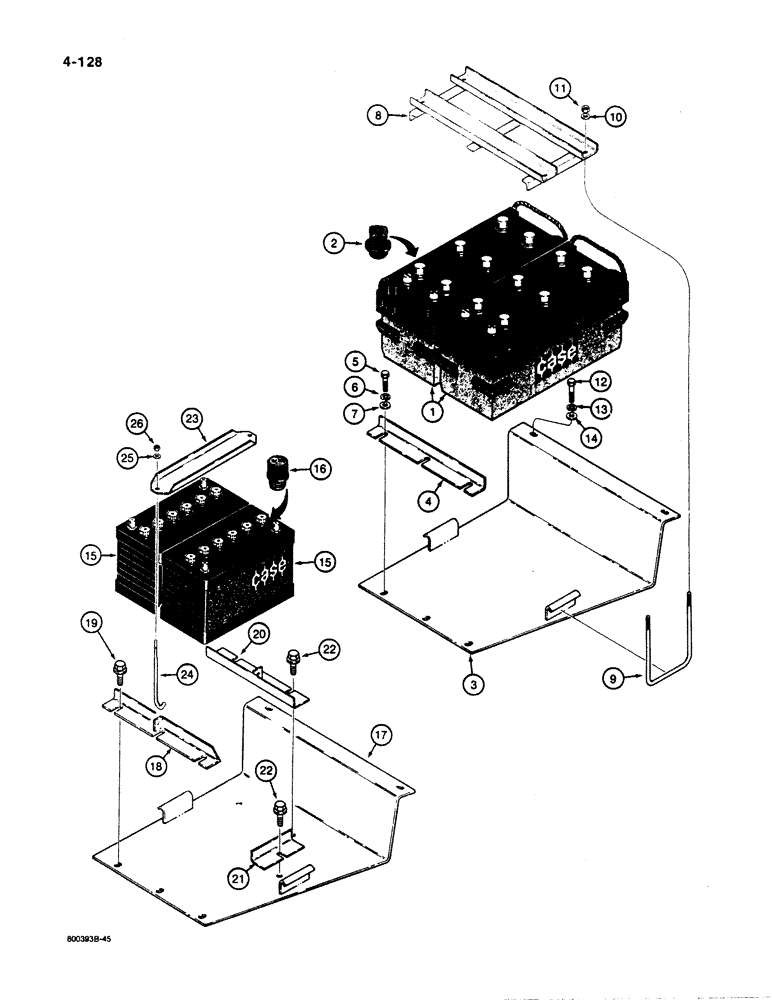

Запчасти Case 1455B (4-128) - BATTERY MOUNTING, BATTERIES WITH U-BOLT MOUNTING, BATTERIES W/ U-BOLT & J-BOLT MOUNTING (04) - ELECTRICAL SYSTEMS

1

BCM4DA

DRY BATTERY

- 12 volt, Hybrid, dry, if used

2шт.

2

R30819

CYLINDER END CAP

CAP - battery, non-spill, service replacement

6шт.

3

R42018

SUPPORT

- battery mounting

1шт.

4

R43330

ANGLE

BRACKET - battery retaining

1шт.

5

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

3шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

7

195-33

WASHER,1/2"

- flat, 1/2"

3шт.

8

R41879

CLAMP BRACKET

BRACKET - battery retaining, top

1шт.

9

R29281

BOLT

U-BOLT - battery retaining

2шт.

10

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

11

131-352

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

12

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

14

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

15

BHC30

BATTERY, DRY

BATTERY - 12 volt, Hybrid, dry, if used

2шт.

16

A60553

CAP

- battery, non-spill, service replacement

6шт.

17

R49151

SUPPORT

- battery mounting

1шт.

18

R49149

ANGLE

BRACKET - battery retaining, rear

1шт.

19

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, , Replaces regular hex head bolt, lock washer and flat washer used on some models Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

3шт.

20

R32718

ANGLE

BRACKET - battery retaining, front

1шт.

21

R32767

ANGLE

BRACKET - battery retaining, side

1шт.

22

121-235

FLANGE BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

BOLT - hex flange head, 3/8" - 16 NC x 1-1/4", grade 8, Teflon coated, replaces regular hex head bolt, lock washer, and flat washer used on some models

3шт.

23

R46490

BRACKET

- battery retaining, top

1шт.

24

R27652

ROD

BOLT - J-type, battery retaining

2шт.

25

195-21

WASHER,5/16"

- flat, 5/16"

2шт.

26

131-651

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

2шт.
