Запчасти Case 1455B (4-124) - REAR ELECTRICAL WIRING, GROUP 4D TYPE BATTERIES AND CABLES TO STARTER (04) - ELECTRICAL SYSTEMS

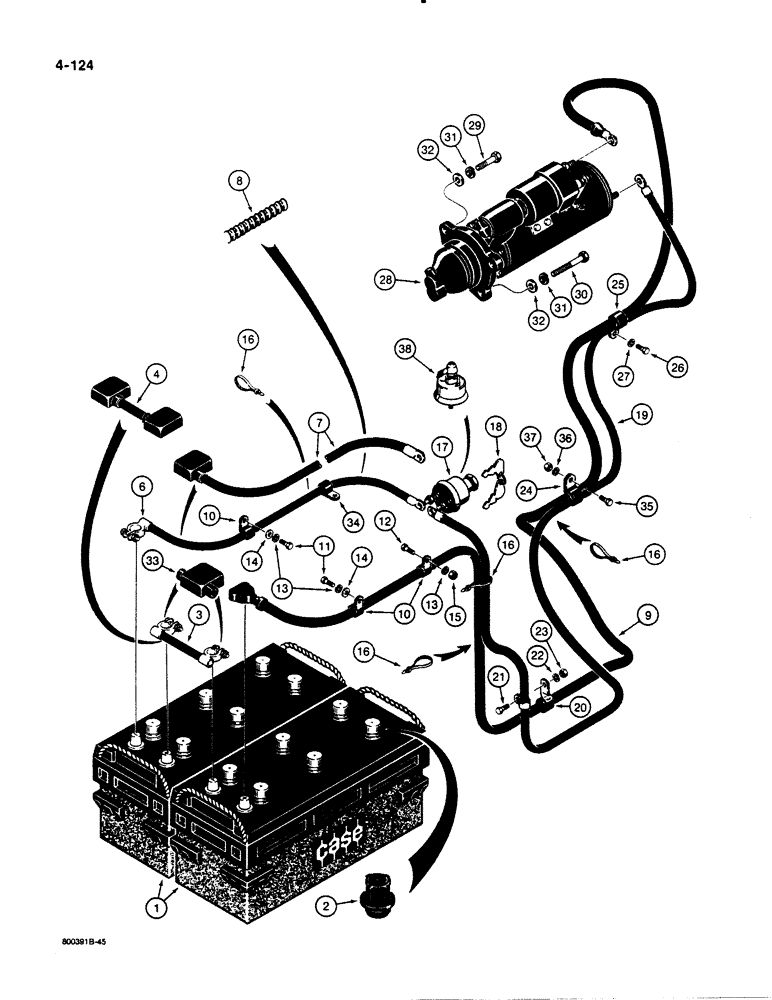

Схема запчастей Case 1455B - (4-124) - REAR ELECTRICAL WIRING, GROUP 4D TYPE BATTERIES AND CABLES TO STARTER (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

BCM4DA

DRY BATTERY

- 12 volt, Hybrid, dry, if used, see Fig. 4-126 for group 30H type batteries, see Fig. 4-128 for battery mounting

2шт.

The battery which could replace this battery is P/N BHC4DA with 900 cca and 290 res.

1шт.

2

R30819

CYLINDER END CAP

CAP - battery, non-spill, service replacement

6шт.

3

R36419

CABLE

- jumper, without terminal covers, no longer available, order R47225 cable, ref. 4

1шт.

4

R47225

CABLE

- jumper, with terminal covers

1шт.

6

R44954

CABLE PULLING GRIP

CABLE - negative, without terminal cover at battery, no longer used, order ref. 7 cable

1шт.

7

R47204

NEG BATTERY CABLE

CABLE - negative, with terminal cover at battery

1шт.

8

R44805

PACKAGE

CONDUIT - plastic, 39-3/16" long, cut from R44806 conduit, see below, negative battery cable

1шт.

9

R44953

CABLE PULLING GRIP

CABLE - positive

1шт.

10

R14668

CLAMP

- battery cables

3шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

14

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

17

R47440

SWITCH

- master disconnect, key type, no longer used, replace with R52278 switch (ref. 38 on this figure) and R46704 locking tab on heel plate (see Fig. 9-502); see instruction sheet 8-61640, Includes: Ref. 18

1шт.

18

R30074

SET

KEY - switch, if used

2шт.

19

R43506

CABLE PULLING GRIP

CABLE - switch to starter, includes clamp

1шт.

20

R43926

CLAMP

- twist-type, positive battery cable

1шт.

21

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

24

D30474

CLAMP

- cables

1шт.

25

S86530

CLAMP

- cables, above starter

1шт.

26

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

28

REF

INSTRUCTION

STARTER - for correct assembly and components see Figs. 4-96 - 4-116

1шт.

29

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

30

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex head, 1/2" - 13 NC x 3"

1шт.

31

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

32

R24323

WASHER

- hardened, 1/2"

3шт.

33

R46416

COVER

- battery terminal, if used

2шт.

34

51200320

CLAMP

- negative battery cable, use battery support mounting hardware, see Fig. 4-128

1шт.

35

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

36

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

37

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

38

R52278

SWITCH

- master disconnect, lever type, replaces key switch

1шт.

R44806

LOOM

CONDUIT - plastic, 88-1/2" long

1шт.

Выбрано товаров: 39
