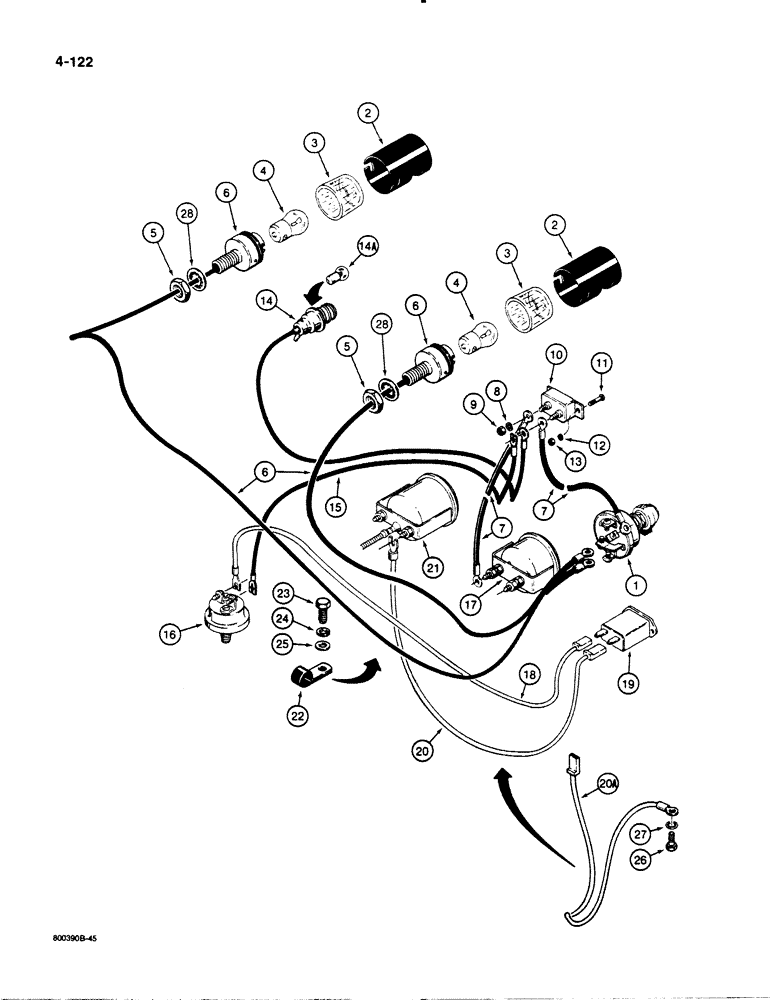

Запчасти Case 1455B (4-122) - INSTRUMENT PANEL WIRING (04) - ELECTRICAL SYSTEMS

1

R27539

SWITCH

- lamp

1шт.

D35815

LAMP

ASSEMBLY - instrument panel, Includes: Ref. 2 - 6

2шт.

2

D37918

COVER

- lamp

1шт.

3

D37919

LENS

- lamp

1шт.

4

R19897

BULB

- No. 623

1шт.

5

D39095

NUT

- special

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - includes wire

1шт.

7

51200220

ELECTRICAL WIRE

WIRE - jumper

2шт.

8

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

9

129-37

NUT,#10-32

2шт.

10

L104328

BREAKER

CIRCUIT BREAKER - 25 amp, lamps

1шт.

11

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

MACHINE SCREW - No. 8 - 32 NC x 3/8", plated

2шт.

12

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

13

129-16

NUT,#8-32

2шт.

14

R43546

LAMP

- transmission filter indicator, Includes: Ref. 14A

1шт.

14a

L32969

BULB

- lamp, trade No. 456R, replaces N9923 bulb (trade No. 265) used in production on some models

1шт.

15

R33638

ELECTRICAL WIRE

WIRE - circuit breaker to pressure switch

1шт.

16

107436C1

SWITCH

- pressure, engine oil

1шт.

17

R38643

ELECTRICAL GAUGE

GAUGE - ammeter

1шт.

18

R29353

ELECTRICAL WIRE

WIRE - hourmeter to front harness

1шт.

19

L107631

METER

HOURMETER - engine

1шт.

20

R38765

ELECTRICAL WIRE

WIRE - hourmeter ground, 40" (1016 mm) long, to engine temperature gauge, no longer used, order R47428 wire (ref. 20A) and hardware refs. 26 and 27 for mounting to main frame

1шт.

20a

R47428

ELECTRICAL WIRE

WIRE - hourmeter ground, 14" (356 mm) long, eyelet terminal, to main frame

1шт.

21

R42267

ELECTRICAL GAUGE

GAUGE - engine temperature

1шт.

22

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- wires, below instrument panel

1шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

25

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

26

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

If used Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

27

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, , If used Int Tooth, 1/4"

1шт.

28

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, , Lamp ground Int Tooth, 5/8"

2шт.
