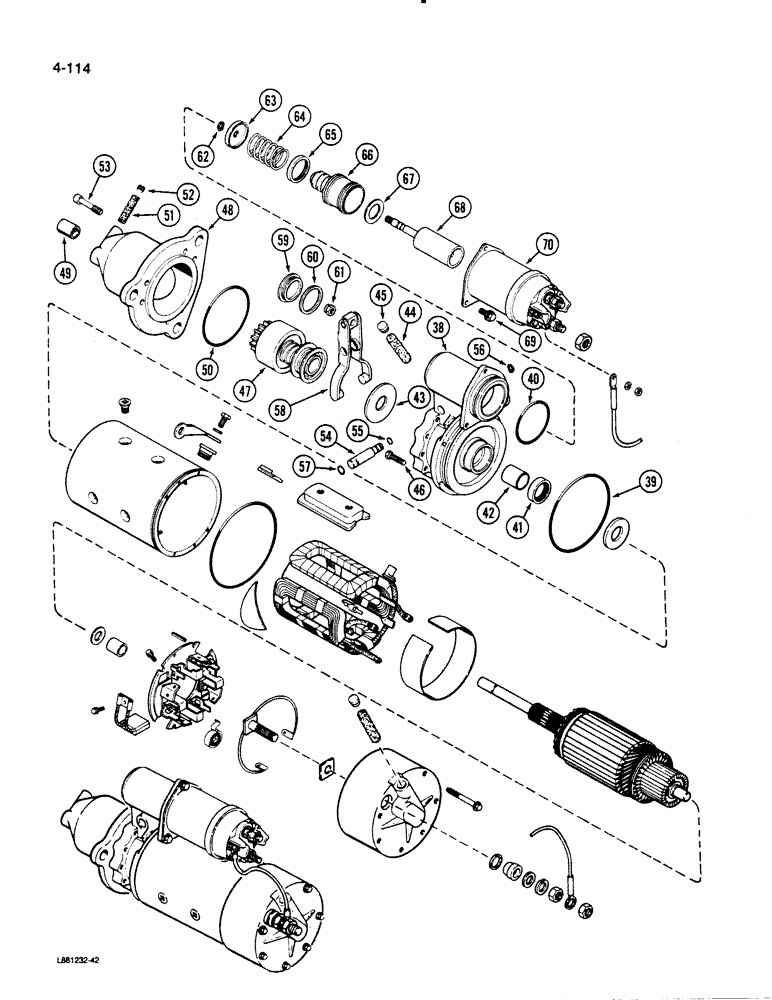

Запчасти Case 1455B (4-114) - L118276 STARTER ASSEMBLY, DELCO-REMY (04) - ELECTRICAL SYSTEMS

L118276

STARTING MOTOR

STARTER ASSEMBLY - new, Includes: Ref. 38 - 70 and Ref. 2 - 37 on Figure 4-112

1шт.

87454648

REMAN-STARTER

Remanufactured STARTER - For N.A. Only

1шт.

87454649

CORE-STARTER

Return Number, STARTER - For N.A. Only

1шт.

A187512

HOUSING ASSY.

HOUSING ASSEMBLY - shift lever, Includes: Ref. 38 - 45

1шт.

38

NSS

NOT SOLD SEPARAT

HOUSING - shift lever

1шт.

39

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

O-RING - housing, lever

1шт.

Part of Bushing Kit P/N A187514

1шт.

40

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

O-RING - housing, solenoid

1шт.

Part of Bushing Kit P/N A187514

1шт.

41

R21582

OIL SEAL

SEAL - oil, housing

1шт.

Part of Bushing Kit P/N A187514

1шт.

42

A49765

BUSHING

BUSHING - armature, starter drive

1шт.

Part of Bushing Kit P/N A187514

1шт.

43

A185121

WASHER

WASHER - brake, lever housing

1шт.

Part of Bushing Kit P/N A187514

1шт.

44

A49567

WICK

WICK - oil lever housing

1шт.

Part of Bushing Kit P/N A187514

1шт.

45

A49573

PLUG

PLUG - oil wick, lever housing

1шт.

Part of Bushing Kit P/N A187514

1шт.

46

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1", G5

5шт.

47

A47523

DRIVE

CLUTCH ASSEMBLY - drive, starter

1шт.

A49773

HOUSING

HOUSING ASSEMBLY - drive, Includes: Ref. 48 - 52

1шт.

48

NSS

NOT SOLD SEPARAT

HOUSING - drive

1шт.

49

A47257

BUSHING

BUSHING - armature, housing

1шт.

Part of Bushing Kit P/N A187514

1шт.

50

A43854

O-RING,3.237" ID x 0.106" THK

O-RING - housing, lever

1шт.

Part of Bushing Kit P/N A187514

1шт.

51

A47888

WICK

WICK - oil, drive housing

1шт.

Part of Bushing Kit P/N A187514

1шт.

52

A47989

SPRING

PLUG - oil wick, housing

1шт.

Part of Bushing Kit P/N A187514

1шт.

53

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive housing

6шт.

54

A42199

PIN

SHAFT - shift lever

1шт.

55

A47259

O-RING,0.244" ID x 0.391" OD

O-RING - sealing, shaft

1шт.

56

G46146

SNAP RING,#37, Ext

Ring, Snap, , shift lever shaft #37, Ext

1шт.

57

A47258

O-RING,0.369" ID x 0.515" OD

O-RING - large, pivot stud

1шт.

58

A49775

LEVER

LEVER - shift

1шт.

59

R21587

PLUG

PLUG - inspection, lever housing

1шт.

60

A41924

GASKET

GASKET - plug

1шт.

Part of Bushing Kit P/N A187514

1шт.

61

131-31

LOCK NUT,5/16"-24, G8

NUT - hex lock, 5/8-24 inch NF

1шт.

Part of Bushing Kit P/N A187514

1шт.

62

G46146

SNAP RING,#37, Ext

Ring, Snap, , solenoid plunger #37, Ext

1шт.

63

A43419

SEAT

SEAT - outer, spring

1шт.

64

A41242

SPRING

SPRING - return, plunger

1шт.

65

A43380

BACK-UP RING

SEAT - spring, plunger

1шт.

66

A49589

BOOT

BOOT - plunger

1шт.

67

A41922

WASHER

WASHER - plunger seat

1шт.

68

A49757

PLUNGER

PLUNGER - solenoid

1шт.

69

A49587

CAPTIVE WASHER SCREW,Hex, 1/4" - 20 x 0.50"

SCREW ASSEMBLY - mounting, solenoid

3шт.

70

A49774

SWITCH

SOLENOID ASSEMBLY - starter, see Fig. 4-116

1шт.

A187515

KIT

SHIFT LEVER KIT - starter, includes refs. 40, 50, 54, 58, 60, and 61

1шт.

A187514

KIT

BUSHINK KIT - Includes: Ref. 39, 40, 41, 42, 43, 44, 45, 49, 50, 51, 52, 60 and 61, and parts in Figure 112

1шт.
