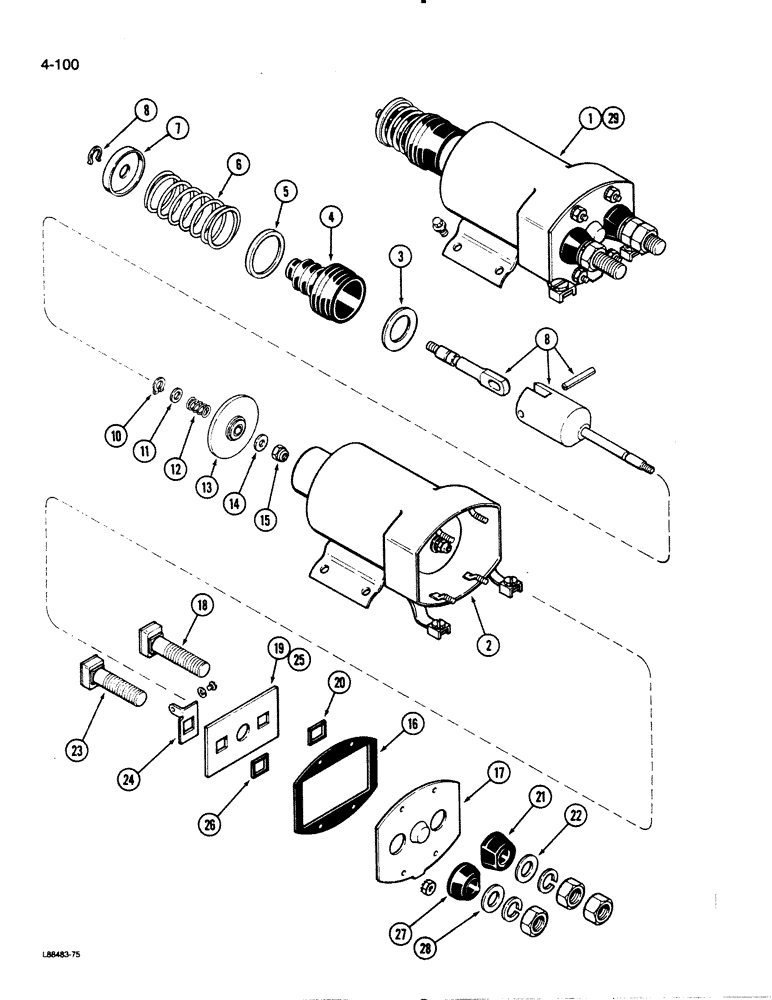

Запчасти Case 1455B (4-100) - A45656 SOLENOID ASSEMBLY, PRESTOLITE (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A45656
SOLENOID
ASSEMBLY - starter (Order A48338) (Prestolite SAT-4105), Includes: Ref. 2 - 29
1шт.
2
NSS
NOT SOLD SEPARAT
CASE ASSEMBLY - solenoid
1шт.
-
SPRING KIT - solenoid return, Includes: Ref. 3 - 15
1шт.
3
NSS
NOT SOLD SEPARAT
WASHER - solenoid
1шт.
4
NSS
NOT SOLD SEPARAT
COVER - yoke end (rubber boot)
1шт.
5
NSS
NOT SOLD SEPARAT
RETAINER - return spring, inner
1шт.
6
NSS
NOT SOLD SEPARAT
SPRING - solenoid return
1шт.
7
NSS
NOT SOLD SEPARAT
RETAINER - return spring, outer
1шт.
8
NSS
NOT SOLD SEPARAT
RING - snap, spring kit retaining SOLENOID KIT - (Includes ref. 10) CONTACT KIT - solenoid
1шт.
10
NSS
NOT SOLD SEPARAT
RING - snap, contact stop
1шт.
11
NSS
NOT SOLD SEPARAT
WASHER - No. 10 flat
1шт.
12
NSS
NOT SOLD SEPARAT
SPRING - contact return
1шт.
13
NSS
NOT SOLD SEPARAT
CONTACT ASSEMBLY - solenoid
1шт.
14
NSS
NOT SOLD SEPARAT
WASHER - 1/4 inch ID
1шт.
15
NSS
NOT SOLD SEPARAT
NUT - contact kit retaining
1шт.
COVER KIT - solenoid, Includes: Ref. 16 - 28
1шт.
16
A47585
GASKET
KIT - solenoid cover (Set of 4)
1шт.
17
NSS
NOT SOLD SEPARAT
COVER - solenoid
1шт.
TERMINAL KIT - battery
1шт.
18
NSS
NOT SOLD SEPARAT
TERMINAL - battery stud
1шт.
19
NSS
NOT SOLD SEPARAT
INSULATION - terminal plate
1шт.
20
NSS
NOT SOLD SEPARAT
SPACER - battery terminal
1шт.
21
NSS
NOT SOLD SEPARAT
INSULATOR - battery terminal
1шт.
22
NSS
NOT SOLD SEPARAT
WASHER - battery terminal (Steel)
1шт.
TERMINAL KIT - starter
1шт.
23
NSS
NOT SOLD SEPARAT
TERMINAL - starter stud
1шт.
24
NSS
NOT SOLD SEPARAT
BRACKET - terminal contact
1шт.
25
NSS
NOT SOLD SEPARAT
INSULATION - terminal plate
1шт.
26
NSS
NOT SOLD SEPARAT
SPACER - starter terminal
1шт.
27
NSS
NOT SOLD SEPARAT
INSULATOR - starter terminal
1шт.
28
NSS
NOT SOLD SEPARAT
WASHER - starter terminal (Steel)
1шт.
29
A48338
SOLENOID
ASSEMBLY - starter (Replaces A45656) (Serviced as an assembly only)
1шт.
Выбрано товаров: 32
