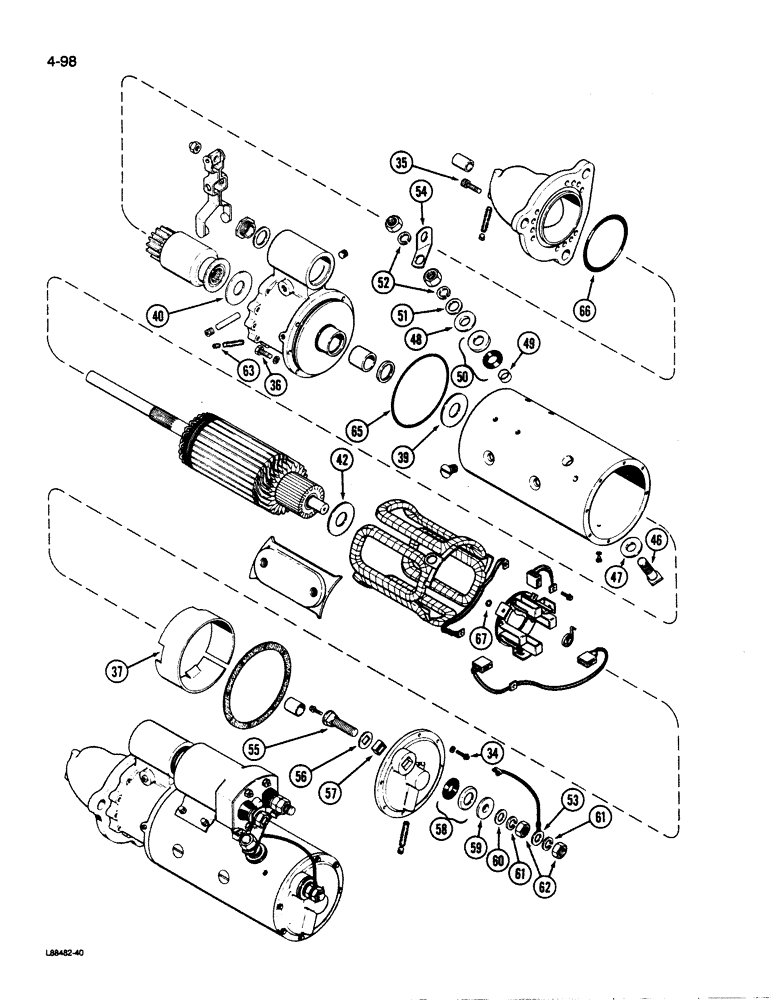

Запчасти Case 1455B (4-098) - R37343 STARTER ASSEMBLY, PRESTOLITE (04) - ELECTRICAL SYSTEMS

R37343

X

STARTER ASSEMBLY - engine, Includes: Ref. 34 - 67, bolt kit and Ref. 2 - 29 on Figure 4-96

1шт.

104216A2R

REMAN-STARTER

Remanufactured Starter

1шт.

104216A1C

CORE-STARTER

Return Part Number

1шт.

A45662

KIT

BOLT KIT - mounting, Includes: Ref. 34 - 36

1шт.

34

NSS

NOT SOLD SEPARAT

BOLT - commutator end

7шт.

35

NSS

NOT SOLD SEPARAT

BOLT - drive housing

6шт.

36

NSS

NOT SOLD SEPARAT

BOLT - intermediate housing

7шт.

37

A45641

INSULATOR

INSULATION KIT - field (package of 10)

1шт.

A45657

KIT

WASHER KIT - thrust, Includes: Ref. 39 - 42

1шт.

39

NSS

NOT SOLD SEPARAT

WASHER - intermediate, 1/8 inch thick

1шт.

39

NSS

NOT SOLD SEPARAT

WASHER - intermediate, 1/32 inch thick

1шт.

40

NSS

NOT SOLD SEPARAT

WASHER - drive housing, 3/32 inch thick

1шт.

42

NSS

NOT SOLD SEPARAT

WASHER - commutator end, 1/32 inch thick

4шт.

42

NSS

NOT SOLD SEPARAT

WASHER - commutator end, 3/64 inch thick

2шт.

A45660

KIT

TERMINAL KIT - field, Includes: Ref. 46 - 52

1шт.

46

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

47

NSS

NOT SOLD SEPARAT

WASHER - insulation, inner

1шт.

48

NSS

NOT SOLD SEPARAT

WASHER - insulation

1шт.

49

NSS

NOT SOLD SEPARAT

WASHER - insulation (In frame)

1шт.

50

NSS

NOT SOLD SEPARAT

WASHER - insulation, outer

1шт.

51

NSS

NOT SOLD SEPARAT

WASHER - steel

1шт.

52

NSS

NOT SOLD SEPARAT

WASHER - lock

2шт.

53

A45643

ASSEMBLY

LEAD - solenoid from battery terminal

1шт.

54

A45642

CONNECTION

CONNECTOR -, Serial Range: field-solenoid

1шт.

A45663

KIT

TERMINAL KIT - end, Includes: Ref. 55 - 62

1шт.

55

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

56

NSS

NOT SOLD SEPARAT

WASHER - insulation, inner

1шт.

57

NSS

NOT SOLD SEPARAT

INSULATION - in frame

1шт.

58

NSS

NOT SOLD SEPARAT

BUSHING - insulation

1шт.

59

NSS

NOT SOLD SEPARAT

WASHER - insulation, outer

1шт.

60

NSS

NOT SOLD SEPARAT

WASHER - steel

1шт.

61

NSS

NOT SOLD SEPARAT

WASHER - lock

2шт.

62

NSS

NOT SOLD SEPARAT

NUT - stud

2шт.

63

A45638

PLUG

PLUG KIT - neoprene (Package of 6)

1шт.

65

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

O-RING - housing

1шт.

66

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

O-RING - housing

1шт.

67

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

O-RING KIT - brush holder screw (Package of 10)

1шт.
