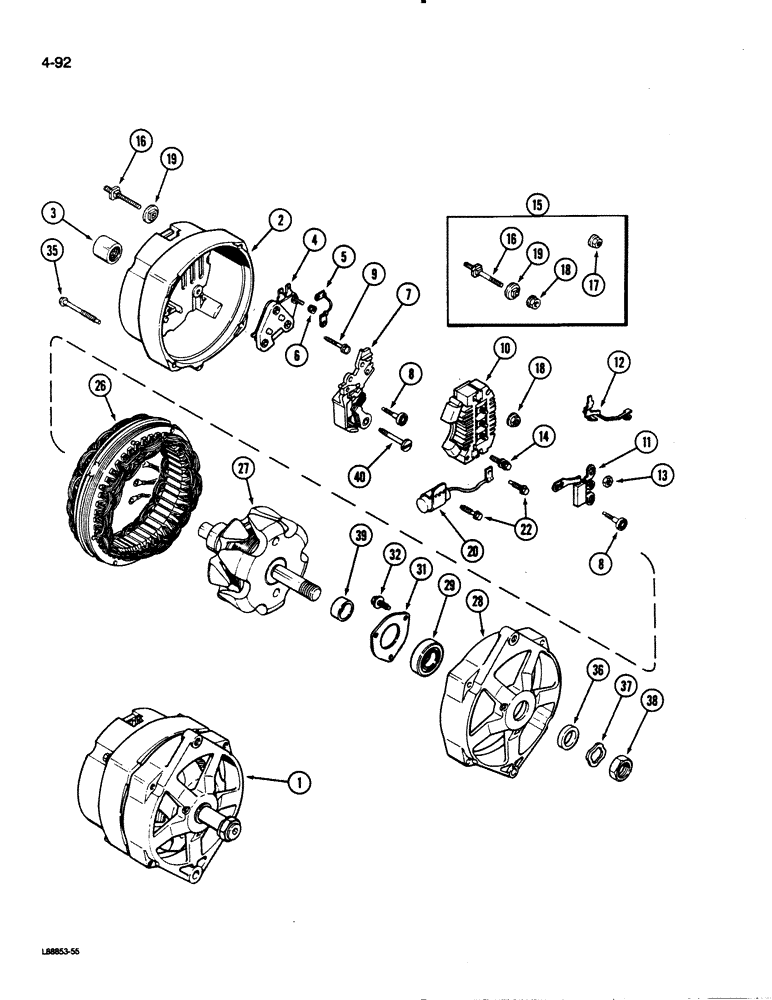

Запчасти Case 1455B (4-092) - A167152 ALTERNATOR ASSEMBLY, DELCO-REMY (04) - ELECTRICAL SYSTEMS

.

A167152

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, without fan and pulley, J I Case installed (24 Volt, 40 Ampere) (Delco-Remy 1105510), Includes: Ref. 2 - 40

1шт.

104260A1R

REMAN-ALTERNATOR

Remanufactured 24 VOLT, 40 AMP Alternator

1шт.

104260A1C

CORE-ALTERNATOR

Return Number, 24 VOLT, 40 AMP Alternator

1шт.

2

A47595

FRAME

FRAME ASSEMBLY - slip ring end

1шт.

3

A47578

ROLLER BEARING,0.6694" ID x 0.937" OD x 0.73"

BEARING - roller

1шт.

4

A46890

REGULATOR

REGULATOR - voltage (Replaces A46943), Includes: Ref. 5 - 22

1шт.

5

A45369

ELECTRICAL WIRE

WIRE LEAD - regulator

1шт.

6

A45368

NUT

NUT - lead to regulator stud

1шт.

7

A47042

HOLDER

HOLDER ASSEMBLY - brush (with brushes)

1шт.

8

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW - brush holder (Insulated)

2шт.

9

A47581

SCREW,#8 - 32 x 1.43"

SCREW - brush holder, grounded

1шт.

10

A46942

ELEC CONNECTOR

BRIDGE ASSEMBLY - rectifier

1шт.

11

A48339

DIODE

DIODE - trio

1шт.

12

A46931

TERMINAL CONNECTOR

TERMINAL - relay

1шт.

13

129-16

NUT,#8-32

NUT, #8-32

3шт.

14

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW - rectifier bridge

1шт.

15

A47597

TERMINAL CONNECTOR

TERMINAL ASSEMBLY - battery

1шт.

16

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

17

NSS

NOT SOLD SEPARAT

INSULATOR - terminal stud

1шт.

18

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY - outer

1шт.

19

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY - inner

1шт.

20

A47734

CAPACITOR

CAPACITOR ASSEMBLY - alternator

1шт.

22

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW - capacitor mounting and lead

2шт.

26

A49388

STATOR

STATOR ASSEMBLY - alternator (Replaces A46944), Includes: Ref. 27 and 28

1шт.

27

A46945

ROTOR

ROTOR ASSEMBLY - alternator

1шт.

28

A46933

FRAME

FRAME - drive end

1шт.

29

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball (Replaces A47579), Includes: Ref. 31, 32 and 35

1шт.

31

R15101

PLATE

PLATE - bearing retainer

1шт.

32

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

SCREW - retainer plate

3шт.

35

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT - through

4шт.

36

A49733

COLLAR

COLLAR - rotor shaft, outer (Replaces A47580), Includes: Ref. 37 - 40

1шт.

37

R16171

SPRING WASHER

WASHER - lock, drive pulley and fan

1шт.

38

A25546

NUT

NUT - pulley and fan retaining

1шт.

39

A48261

COLLAR

COLLAR - rotor shaft, inner

1шт.

40

A47043

SCREW,#8 - 32 x 21"

SCREW - regulator attaching

1шт.
