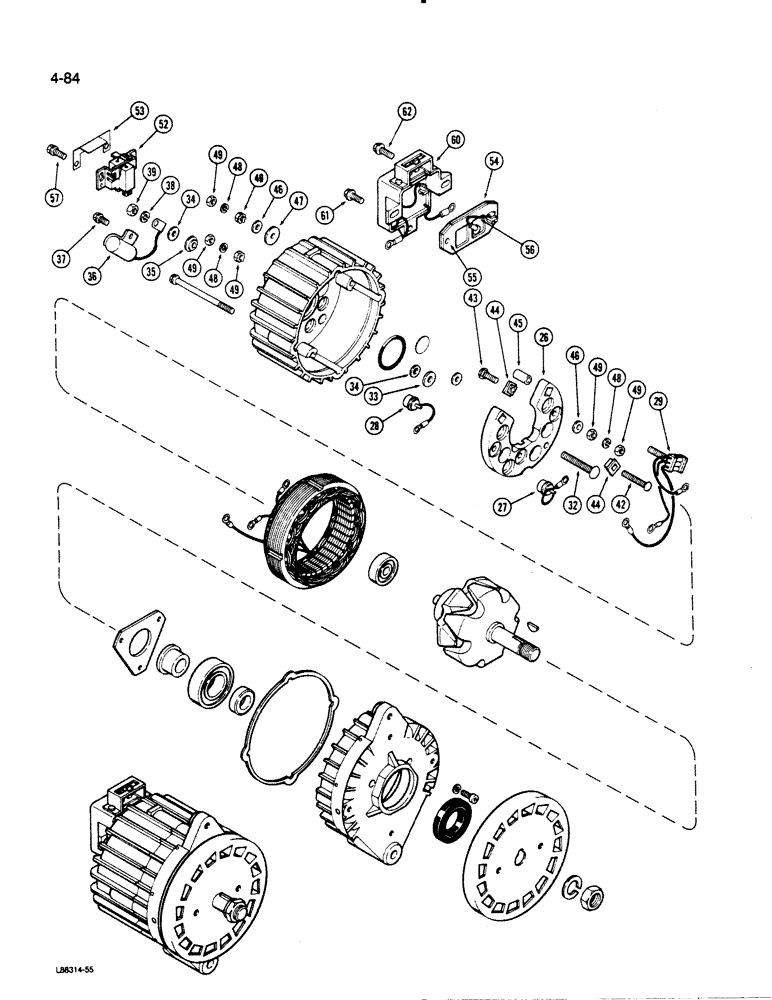

Запчасти Case 1455B (4-084) - R36588 ALTERNATOR ASSEMBLY, MOTOROLA NO. 70D44966E01 (04) - ELECTRICAL SYSTEMS

A47263

ALTERNATOR

ALTERNATOR ASSEMBLY - , Includes: Ref. 26 - 57 and Ref. 2 - 24 on Figure 4-82

1шт.

104260A1R

REMAN-ALTERNATOR

Remanufactured 24 VOLT, 40 AMP Alternator

1шт.

104260A1C

CORE-ALTERNATOR

Return Number, 24 VOLT, 40 AMP Alternator

1шт.

26

A43445

HEAD

SPARE PART HEAT SINK - positive diode

1шт.

27

A43425

DIODE

DIODE - positive (In heat sink)

3шт.

28

A43424

DIODE

SPARE PART DIODE - negative (In rear housing)

3шт.

29

A47849

DIODE

DIODE ASSEMBLY - field trip (Replaces A47277)

1шт.

32

111-138

BOLT,1/4"-28 x 1 3/4", G2, Ribbed Neck

BOLT - round head square neck, 1/4 NC x 1-3/4 inch

1шт.

33

A43433

INSULATOR

INSULATOR - 5/8 inch OD

1шт.

34

A43428

INSULATOR

INSULATOR - 1/2 inch OD

2шт.

35

A47276

SPACER

SPACER - capacitor

1шт.

36

A47273

CAPACITOR

CAPACITOR - alternator

1шт.

37

187-1090

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - hex washer head, No. 10-24 x 5/8 inch self tap

1шт.

38

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

39

129-121

NUT,1/4"-28, G5

NUT, 1/4"-28, G5

1шт.

42

111-322

BOLT - round head square neck, No. 10-24 x 1-3/8 inch

1шт.

43

111-2

CARRIAGE BOLT,Short NK, 3/16"-24 x 3/4", G2

BOLT, CARRIAGE, Short NK, 3/16"-24 x 3/4", G2

3шт.

44

A41041

INSULATOR

INSULATOR - square

4шт.

45

A41040

INSULATOR

SLEEVE - insulator, field diode

1шт.

46

A43292

WASHER

INSULATOR - 1/2 inch OD

3шт.

47

A47612

WASHER

INSULATOR - 3/4 inch OD

1шт.

48

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

49

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10-24

10шт.

52

A47272

BRUSH

BRUSH AND HOLDER ASSEMBLY - alternator

1шт.

53

A43434

INSULATOR

INSULATOR - brush holder

1шт.

54

A47265

COVER

COVER - brush holder

1шт.

55

A43440

GASKET

SPARE PART GASKET - brush cover

1шт.

56

A47274

CABLE

WIRE - connector

1шт.

57

187-480

SCREW,Hex Hd, #8 x 1/2"

SCREW - hex head, No. 8-18 x 1/2 inch self tap

2шт.

60

A47275

REGULATOR

SPARE PART REGULATOR ASSEMBLY - voltage

1шт.

61

187-576

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW - hex washer head, No. 10-24 x 3/8 inch self tap

1шт.

62

187-1090

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - hex washer head, No. 10-24 x 5/8 inch self tap

1шт.

825-1106

NUT,Hex, M6, Cl 8

NUT, metric output, M6 x 1

1шт.

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.
