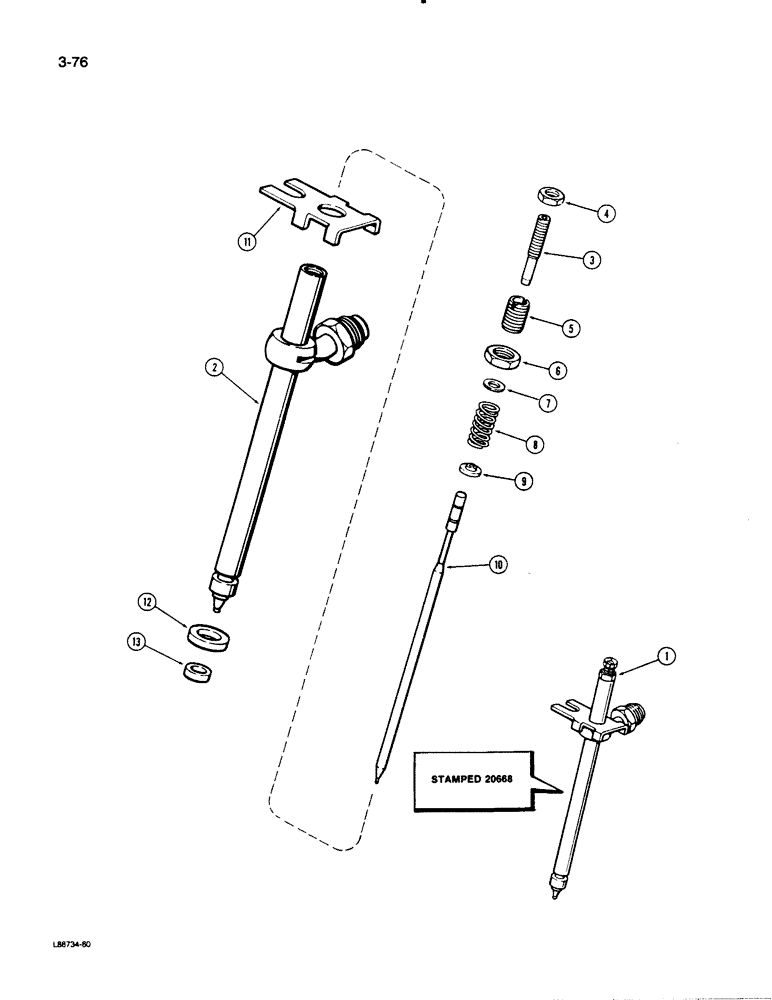

Запчасти Case 1455B (3-76) - FUEL INJECTOR NOZZLE, 504BDT DIESEL ENGINE, PRIOR TO ENGINE SN 10335337 (03) - FUEL SYSTEM

1

A138322

NOZZLE CAP

NOZZLE ASSEMBLY - injector (Red color code) (Stamped 20668 on the body), Includes: Ref. 2 - 13

6шт.

A138322R

REMAN-INJECT NOZZLE

1455B, 1450B all PRIOR TO ENGINE SN 10335337

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A48321

ADJUSTMENT SCREW

SCREW - lift adjusting

1шт.

4

A43602

NUT

- hex lock, lift adjusting

1шт.

5

A45292

SCREW

- pressure adjusting

1шт.

6

A42424

LOCK NUT

- hex lock, pressure adjusting

1шт.

7

NLS

NO LONGER SERVICED

SEAT - upper, pressure spring

1шт.

8

A45290

SPRING

- pressure (Red color code)

1шт.

9

A45289

SEAT

- lower, pressure spring

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

11

A41768

PLATE

- locating

1шт.

12

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- body seat

1шт.

Whenever nozzle is removed from head, A41403 washer and A41402 seal must be replaced before nozzle is installed back in head.

1шт.

13

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

Whenever nozzle is removed from head, A41403 washer and A41402 seal must be replaced before nozzle is installed back in head.

1шт.
