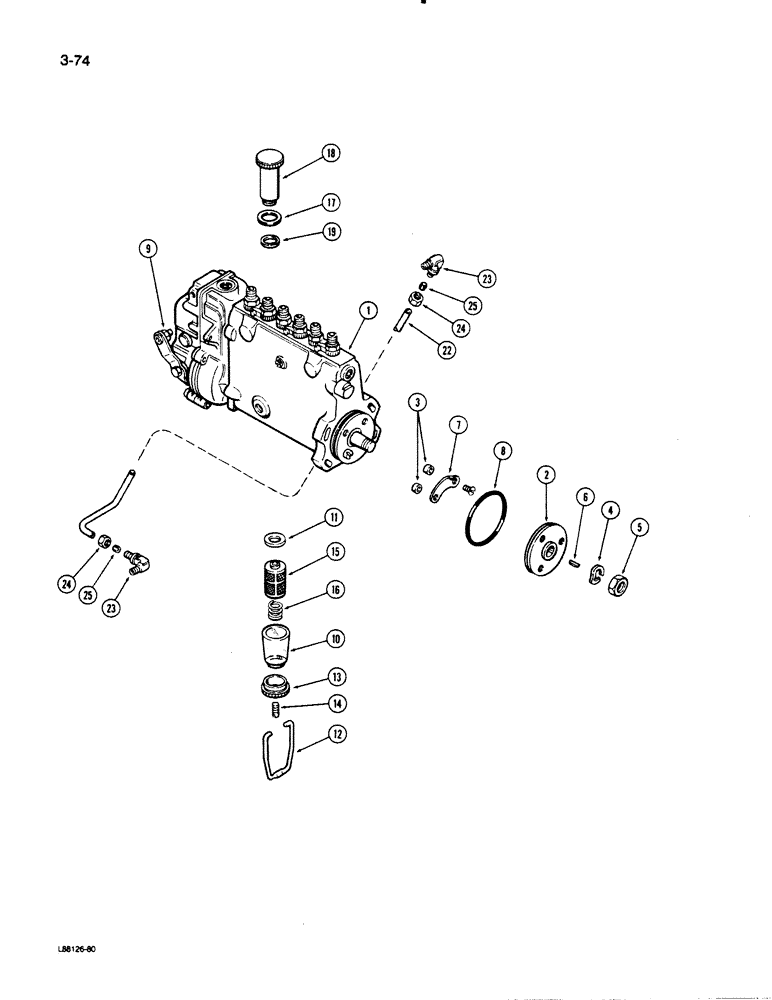

Запчасти Case 1455B (3-74) - FUEL INJECTION PUMP, 504BDT DIESEL ENGINE (03) - FUEL SYSTEM

1

A157350

PUMP

ASSEMBLY - fuel injection (Engine Serial Number 10335337 and after), Includes: Ref. 2 - 17

1шт.

1

A155899

PUMP

ASSEMBLY - fuel injection (Prior to Engine Serial Number 10335337), Includes: Ref. 2 - 17

1шт.

2

A41857

HUB

- pump drive

1шт.

3

A41859

BUSHING

SPACER - pointer

2шт.

4

A41851

LOCK WASHER

- lock, hub nut

1шт.

5

A41852

LOCK NUT

- hex, hub

1шт.

6

A41850

KEY

- hub

1шт.

7

A41858

INDICATOR

POINTER - timing

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

- seal

1шт.

9

814-4008

BOLT,Hex, M4 x 0.7 x 8mm, Cl 8.8, Full Thd

SCREW - lock, control cable stud

1шт.

10

A43347

BOWL

- glass

1шт.

11

A43346

GASKET

- bowl

1шт.

12

A43350

CLAMP

HANGER - bowl

1шт.

13

A43348

NUT

SEAT - bowl

1шт.

14

A43349

STUD

- bowl

1шт.

15

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

16

A43345

SPRING

- element

1шт.

17

A43351

SEAL

- copper

1шт.

18

A43343

CARTRIDGE

PUMP ASSEMBLY - hand primer, Includes: Ref. 19

1шт.

19

A45342

GASKET

- hand pump

1шт.

22

A136903

TUBE

-, Serial Range: pump-block

1шт.

23

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - 90 degree, 1/4 tube x 1/8 inch PT, Includes: Ref. 24 and 25

2шт.

24

87017024

TUBE NUT,1/2"-24

NUT - hex, for 1/4 inch tube

1шт.

25

222-102

SLEEVE,1/4" Tube

1шт.
