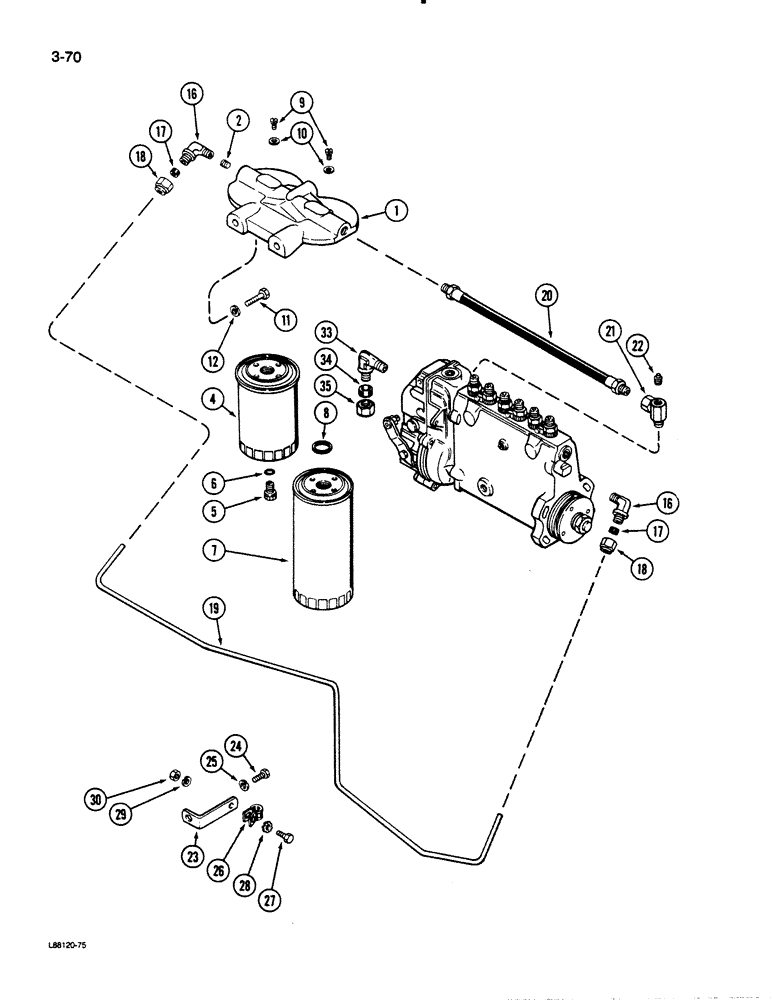

Запчасти Case 1455B (3-70) - FUEL FILTER SYSTEM, 504BDT DIESEL ENGINE (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
A155489
HEAD
ASSEMBLY - fuel filter, Includes: Ref. 2
1шт.
2
221-1849
PLUG
- hex socket head, 1/8 inch PT
1шт.
A44068
FUEL FILTER
FILTER KIT - element replacement, Includes: Ref. 4 - 8
1шт.
4
NSS
NOT SOLD SEPARAT
FILTER ASSEMBLY - first stage, Includes: Ref. 5 and 6
1шт.
5
G49080
PLUG
- plastic, 3/8 inch NF
1шт.
6
A28090
O-RING,0.301" ID x 0.441" OD x 0.07"
-011, 70 Duro, .301" ID x .070" Thk - Plug
1шт.
7
NSS
NOT SOLD SEPARAT
FILTER ASSEMBLY - second stage, Includes: Ref. 8
1шт.
8
A42315
GASKET
-, Serial Range: filter-head
1шт.
9
A20663
SCREW,Fil Hd, #10 - 32 x 5/16"
- bleed
2шт.
10
A146368
WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk
- bleed screw
2шт.
11
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
2шт.
12
92-6
LOCK WASHER,3/8"
2шт.
16
222-45
ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF
ASSEMBLY - 5/16 tube x 1/8 inch PT, Includes: Ref. 17 and 18
2шт.
17
222-103
SLEEVE,5/16" Tube
1шт.
18
222-113
TUBE NUT,9/16"-24
NUT - hex, for 5/16 inch tube
1шт.
19
A157329
TUBE
- pump to filter head
1шт.
20
A65564
HOSE,9.53mm ID x 390.65mm L, SAE 100R6
- filter, Serial Range: head-pump
1шт.
21
A20539
FITTING
UNION - switch, Serial Range: hose-pump
1шт.
22
221-1011
DRAIN PLUG,Sq Hd, 1/8"-27 NPTF
PLUG - square head, 1/8 inch PT
1шт.
23
A64856
BRACKET
- tube
1шт.
24
13-610
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd
1шт.
25
92-6
LOCK WASHER,3/8"
1шт.
26
A62209
CLAMP,5/16", Insul, 1/4" Bolt
CLIP - tube
1шт.
27
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
1шт.
28
193-8
LOCK WASHER,Ext Tooth, 1/4"
WASHER - internal lock, 1/4 inch
1шт.
29
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
30
25-104
NUT,1/4"-20, G5
1шт.
33
ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF
ASSEMBLY - 90 degree, 3/8 tube x 5/8 inch thread, Includes: Ref. 34 and 35
1шт.
34
222-104
SLEEVE,3/8" Tube
- 3/8 inch tube
1шт.
35
222-114
NUT,5/8"-24
NUT - hex, 3/8 tube x 5/8 inch thread
1шт.
Выбрано товаров: 30
