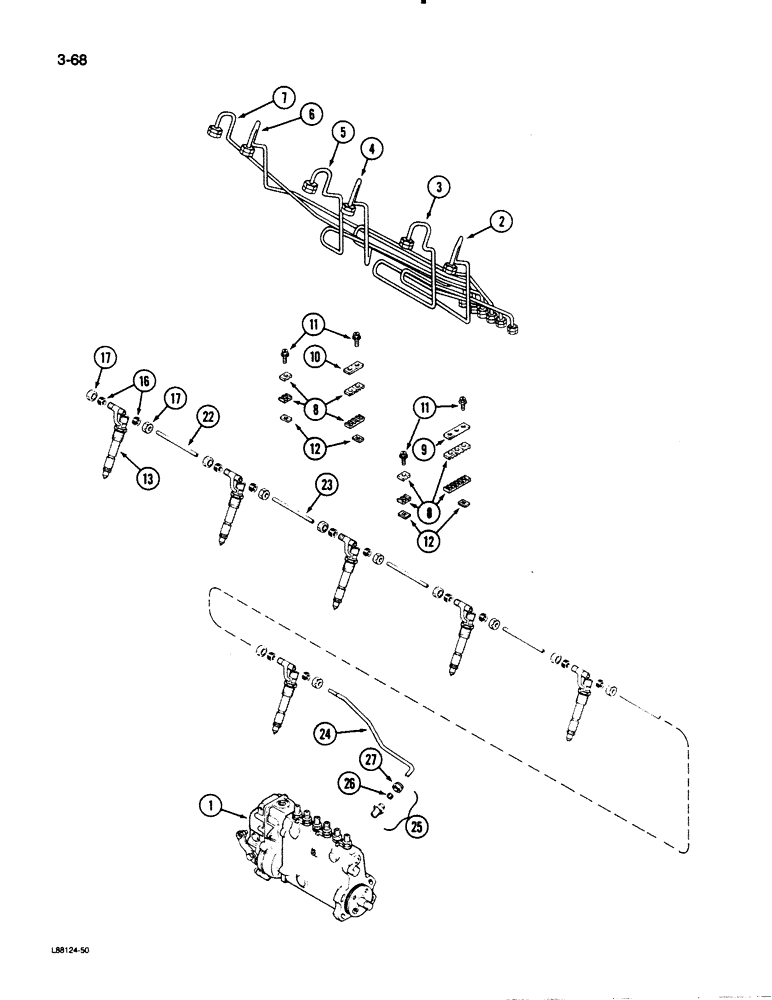

Запчасти Case 1455B (3-68) - FUEL INJECTION SYSTEM, 504BDT DIESEL ENGINE, ENGINE SERIAL NO. 10335337 & AFT (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Fig. 3-74)

1шт.

2

A156885

TUBE

ASSEMBLY - fuel injection, No. 1 cylinder

1шт.

3

A156886

TUBE

ASSEMBLY - fuel injection, No. 2 cylinder

1шт.

4

A156887

TUBE

ASSEMBLY - fuel injection, No. 3 cylinder

1шт.

5

A156888

TUBE

ASSEMBLY - fuel injection, No. 4 cylinder

1шт.

6

A156889

TUBE

ASSEMBLY - fuel injection, No. 5 cylinder

1шт.

7

A156890

PIPE

TUBE ASSEMBLY - fuel injection, No. 6 cylinder

1шт.

8

A58709

BRACKET

- injection tube

14шт.

9

A58708

PLATE

- injection tube bracket (For 6 lines)

1шт.

10

A58710

PLATE

- injection tube bracket (For 4 lines)

1шт.

11

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- slotted hex, No. 10 x 1 inch

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - Tinnerman, No. 10 NC

7шт.

13

REF

INSTRUCTION

NOZZLE ASSEMBLY - fuel injection (See Fig. 3-78)

6шт.

16

222-101

SLEEVE,3/16" Tube

- for 3/16 inch tube

12шт.

17

222-111

TUBE NUT,7/16" - 24

NUT - hex, for 3/16 inch tube

12шт.

22

A76642

TUBE

- leak off, 4-13/16 inch long

3шт.

23

A76641

TUBE

- leak off, 5-3/4 inch long

2шт.

24

A153816

TUBE

- leak off, No. 1, Serial Range: nozzle-valve

1шт.

25

A28098

VALVE

ASSEMBLY - restrictor, leak off, Includes: Ref. 26 and 27

1шт.

26

222-102

SLEEVE,1/4" Tube

1шт.

27

87017024

TUBE NUT,1/2"-24

NUT - hex, for 1/4 inch tube

1шт.
