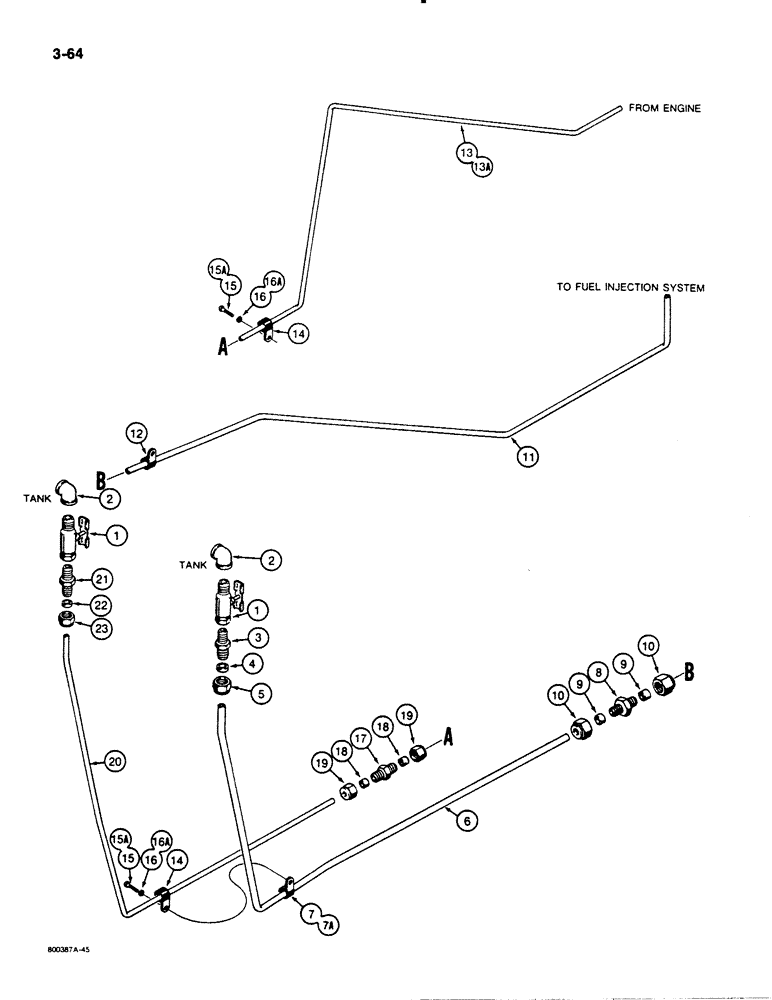

Запчасти Case 1455B (3-64) - FUEL LINES (03) - FUEL SYSTEM

1

217-94

SHUT-OFF VALVE

SHUTOFF VALVE - fuel

2шт.

2

221-375

ELBOW

- 90 degree, female, 1/4" NPT

2шт.

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

ADAPTER - straight, compression fitting, fuel supply, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

4

222-104

SLEEVE,3/8" Tube

- adapter

1шт.

5

222-114

NUT,5/8"-24

NUT - compression

1шт.

6

R41917

FUEL TUBE,0.375" OD

TUBE - fuel supply, at tank

1шт.

7

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- fuel supply tube, uses 5/16" hardware (see items 15 and 16), if used

1шт.

7a

49845

CLAMP

- fuel supply tube, uses 3/8" hardware (see items 15A and 16A), if used

1шт.

222-5

FITTING,5/8"-24 Flex Tube

ADAPTER - straight, compression fitting, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

9

222-104

SLEEVE,3/8" Tube

- adapter

2шт.

10

222-114

NUT,5/8"-24

NUT - compression

2шт.

11

R42017

FUEL TUBE,0.375" OD

TUBE - fuel supply, at engine

1шт.

12

A20688

CLIP

CLAMP - fuel supply tube, use hardware that mounts throttle cross shaft flange, see Fig. 3-60

1шт.

13

R31150

FUEL TUBE,0.25" OD

TUBE - fuel return, at engine, used before engine SN 10335337

1шт.

13a

R47692

FUEL TUBE

TUBE - fuel return, at engine, used on engine SN 10335337 and after

1шт.

14

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- fuel return tubes

2шт.

15

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, If used

2шт.

15a

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

If used Hex, 3/8"-16 x 5/8", G5, Full Thd

2шт.

16

92-5

LOCK WASHER,5/16"

if used 5/16"

2шт.

16a

92-6

LOCK WASHER,3/8"

if used 3/8"

2шт.

222-3

FITTING,1/2"-24 Flex Tube

ADAPTER - straight, compression, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

18

222-102

SLEEVE,1/4" Tube

Adapter 1/4" Tube

2шт.

19

87017024

TUBE NUT,1/2"-24

NUT - compression

2шт.

20

R41916

TUBE

- fuel return, at tank

1шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR - straight, compression, fuel return, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

22

222-102

SLEEVE,1/4" Tube

Connector 1/4" Tube

1шт.

23

87017024

TUBE NUT,1/2"-24

NUT - compression

1шт.
