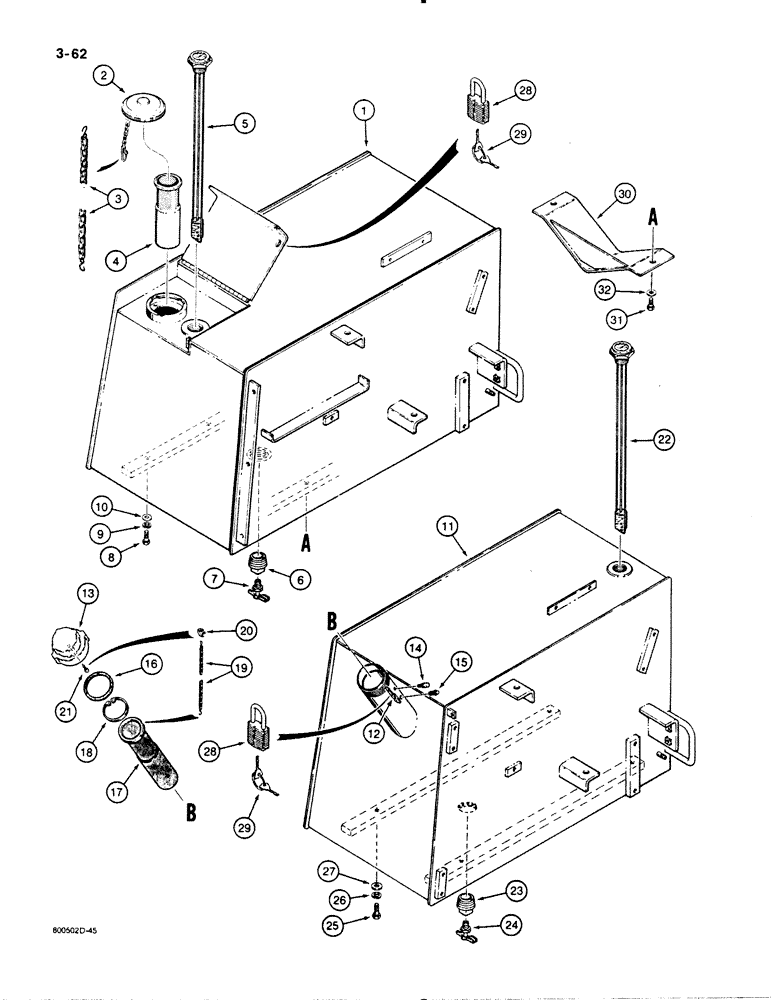

Запчасти Case 1455B (3-62) - FUEL TANK, TOP FILL FUEL TANK, IF USED (03) - FUEL SYSTEM

1

R41937

TANK

fuel, top fill, if used

1шт.

2

R47409

CAP

fuel filler, includes chain with clip attachments

1шт.

3

R43902

CHAIN (CE)

fuel filler cap, with S-hook attachments, service replacement

1шт.

4

R51771

STRAINER ASSY.

fuel

1шт.

REF: 4A STRAINER IS 600 MICRON

1шт.

5

R28475

FUEL GAUGE

1шт.

6

R27578

PLUG

drain

1шт.

7

217-81

VALVE

drain, fuel tank

1шт.

8

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

9

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

10

195-541

WASHER,5/8", SAE

- flat, 5/8", plated

4шт.

11

R50404

TANK

fuel, rear fill, includes decals, if used, Includes: Ref. 12 and 13

1шт.

12

R46704

BRACKET

TAB - locking, cap, weld on, rear fuel tank if used

1шт.

13

R46693

CAP

rear fuel tank if used

1шт.

14

D33028

VALVE

relief, rear fuel tank if used

1шт.

15

D33027

BREATHER

PLUG - air inlet, rear fuel tank if used

1шт.

16

R49868

GASKET,72mm ID x 90mm OD x 3mm Thk

rubber,cap, rear fuel tank if used

1шт.

17

R51771

STRAINER ASSY.

rear fuel tank if used

1шт.

18

D38743

SNAP RING,3.00", Int, #300

strainer, chain, rear fuel tank, if used 3.00", Int, #300

1шт.

19

R47786

CHAIN (CE)

cap to strainer, rear fuel tank if used

1шт.

20

R48634

FASTENER

SWIVEL - chain, rear fuel tank if used

1шт.

21

168-78

DRIVE SCREW,Type U, Rnd Hd, #12 x 3/4"

- round head, No. 12 x 3/4", rear fuel tank if used

1шт.

22

R49775

FUEL GAUGE

rear fuel tank if used

1шт.

23

R27578

PLUG

drain, rear fuel tank if used

1шт.

24

217-81

VALVE

drain, rear fuel tank if used

1шт.

25

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Rear fuel tank if used Hex, 5/8"-11 x 1 1/4", G5, Full Thd

4шт.

26

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Rear fuel tank, if used 5/8"

4шт.

27

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, 5/8", hardened, parts used w/ either fuel tank

4шт.

28

D93753

PADLOCK

fuel access, parts used w/ either fuel tank, Includes: Ref. 29

1шт.

29

R29555

KEY

for Master padlock only, parts used w/ either fuel tank

2шт.

29

D93751

SET OF 2 KEYS

for Yale padlock only, parts used w/ either fuel tank

2шт.

30

R44517

GUARD

drain, parts used w/ either fuel tank

1шт.

31

113-602

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

Parts used w/ either fuel tank Hex, 5/8"-11 x 1", G5, Full Thd

2шт.

32

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, 5/8", hardened, parts used w/ either fuel tank

2шт.
