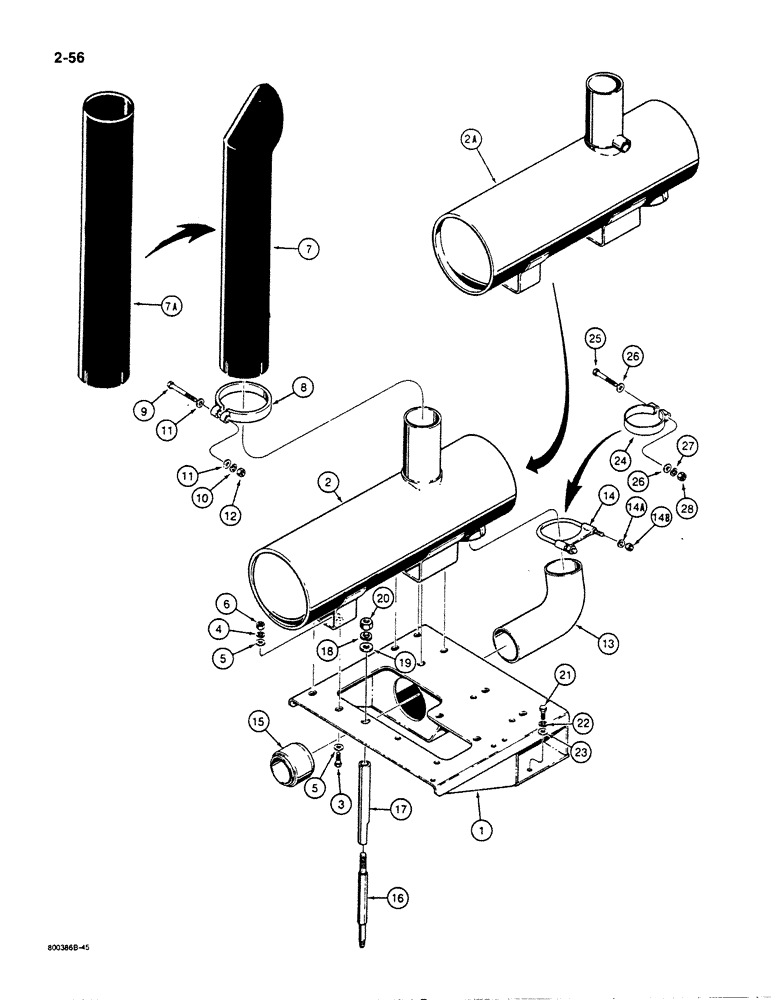

Запчасти Case 1455B (2-56) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

R37940

SUPPORT

- muffler mounting

1шт.

2

R36974

MUFFLER

- use with standard air cleaner, see Fig. 2-54 for identification

1шт.

2a

R42262

MUFFLER

- use with extra capacity air cleaner, see Fig. 2-54 for identification

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

5

195-25

WASHER,3/8"

- flat, 3/8"

12шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

7

REF

INSTRUCTION

EXHAUST PIPE - curved top, no longer used, order R50567, item 7A

1шт.

REF: 7 NO CASE # AVAILABLE - MERCURY PRODUCTS VENDOR CODE - 52775

1шт.

7a

R50567

PIPE, EXHAUST SYSTEM

EXHAUST PIPE - straight

1шт.

REF: 7A NO CASE # AVAILABLE - MERCURY

1шт.

8

R29460

CLAMP

- exhaust stack

1шт.

9

113-2273

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

1шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

195-129

WASHER,3/8"

- flat, , black zinc plated 3/8"

2шт.

12

129-770

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, black zinc plated

1шт.

13

R28775

TUBE,3.874" ID x 4" OD x 9.5, 5.5" L

- muffler inlet

1шт.

14

A162896

CLAMP

- muffler inlet tube, U-type, includes hardware, no longer used, replace with refs. 24 - 28, Includes: Ref. 14A and 14B

1шт.

14a

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14b

12-103

NUT - hex, 3/8" - 16 NC, plated

2шт.

15

A65554

TUBE

CONNECTOR -, Serial Range: muffler-turbocharger

1шт.

16

R36975

STEM

POST - muffler support, threaded

1шт.

17

NLS

NO LONGER SERVICED

SPACER - muffler support post

1шт.

18

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

19

95-8

WASHER,1/2"

flat 1/2"

1шт.

20

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

21

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

24

R48599

CLAMP

- muffler inlet tube, round type

1шт.

25

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

26

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.
