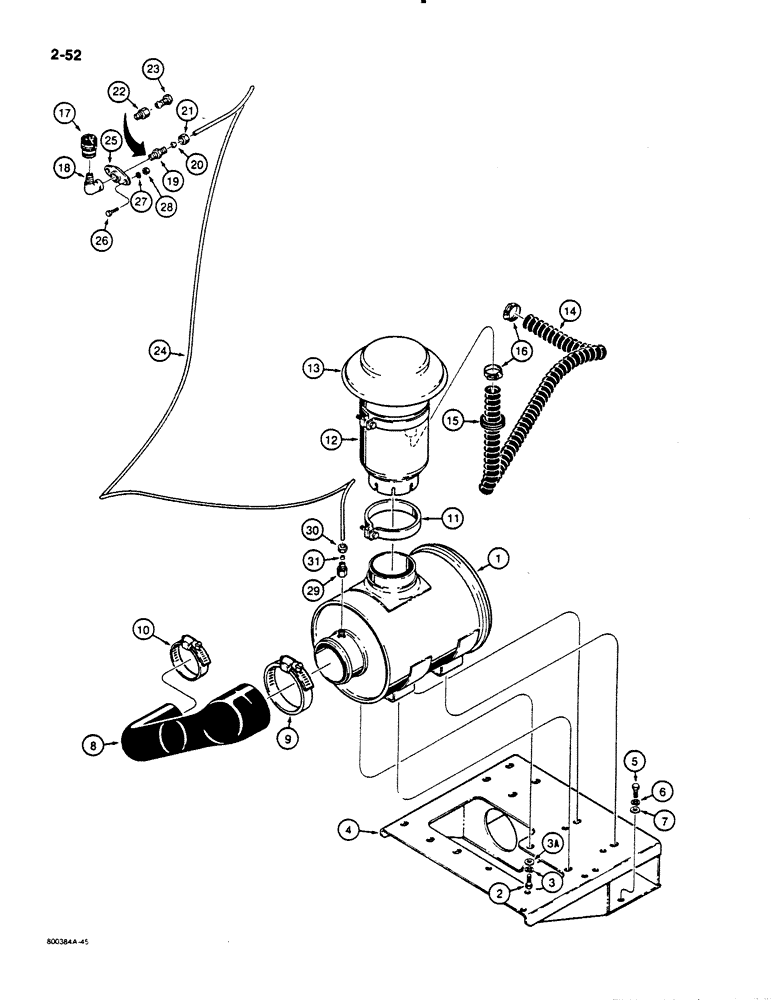

Запчасти Case 1455B (2-52) - EXTRA CAPACITY AIR CLEANER AND, RESTRICTION INDICATOR MOUNTING (02) - ENGINE

1

R42258

AIR CLEANER ASSEMBLY - parts list Fig. 2-54

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

3a

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

4

R37940

SUPPORT

- air cleaner mounting

1шт.

5

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

8

R42260

INTAKE AIR HOSE

- Air cleaner

1шт.

9

214-183

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm

CLAMP - air cleaner hose, top

1шт.

10

214-179

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

CLAMP - air cleaner hose, bottom

1шт.

11

R48591

CLAMP

ASSEMBLY - includes bolt and nut

1шт.

R48675

PRECLEANER

ASSEMBLY - air cleaner, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - precleaner

1шт.

13

N6659

HOOD

CAP - precleaner

1шт.

14

R42261

HOSE

From Precleaner

1шт.

15

R43915

GROMMET

- preclaner hose

1шт.

16

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - precleaner hose

2шт.

17

A59568

INDICATOR

RESTRICTION INDICATOR - air cleaner

1шт.

18

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

REF

INSTRUCTION

ADAPTER - straight, production part, for service order 222-400 adapter assembly, see refs. 22 and 23, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

20

D37176

SLEEVE

- adapter

1шт.

21

D37362

TUBE NUT

- compression

1шт.

22-400

ADAPTER ASSEMBLY - service part, Includes: Ref. 22 and 23

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

23

222-500

TUBE NUT,5/16" - 24 NPT

NUT AND SLEEVE - adapter

1шт.

24

D36946

TUBE

- nylon, 28-13/16" (732 mm) long, cut from bulk tube, see Parts Substitution List for bulk tube options, restriction indicator to air cleaner

1шт.

25

H357707

FLANGE

BRACKET - restriction indicator mounting

1шт.

26

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

28

25-104

NUT,1/4"-20, G5

2шт.

D35091

PIPE FITTING

ADAPTER - female, Includes: Ref. 29 - 31

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

30

D37362

TUBE NUT

- adapter

1шт.

31

D37176

SLEEVE

- adapter

1шт.
