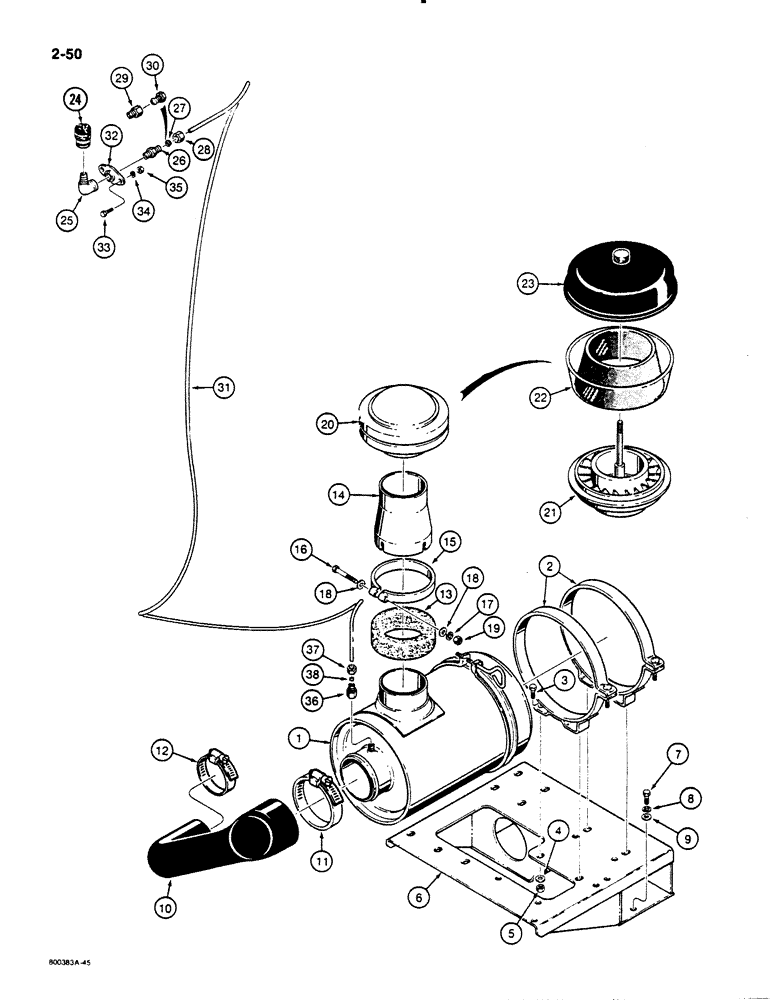

Запчасти Case 1455B (2-50) - STANDARD AIR CLEANER AND, RESTRICTION INDICATOR MOUNTING (02) - ENGINE

1

R37936

AIR CLEANER

ASSEMBLY - parts list Fig. 2-54

1шт.

2

A56089

SUPPORT

CLAMP - mounting, air cleaner

2шт.

3

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

4

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

5

131-179

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

6

R37940

SUPPORT

- air cleaner mounting

1шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

10

R37860

HOSE

- air cleaner

1шт.

11

214-183

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm

CLAMP - air cleaner hose, top

1шт.

12

214-179

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

CLAMP - air cleaner hose, bottom

1шт.

13

R43760

PAD

- air cleaner inlet

1шт.

14

R48590

ORIFICE RING

STACK - air cleaner inlet

1шт.

15

R48589

CLAMP

- stack

1шт.

16

113-2271

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

195-129

WASHER,3/8"

- flat, , black zinc plated 3/8"

2шт.

19

129-770

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, black zinc plated

1шт.

20

R48475

CAP

ASSEMBLY - air intake, includes clamp and bolt, if used

1шт.

R48592

PRECLEANER

ASSEMBLY - air cleaner, if used, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - precleaner

1шт.

22

L30671

HOUSING

BOWL - precleaner

1шт.

23

L30669

COVER

- precleaner

1шт.

24

A59568

INDICATOR

RESTRICTION INDICATOR - air cleaner

1шт.

25

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

REF

INSTRUCTION

ADAPTER - straight, production part, for service order 222-400 adapter assembly, see refs. 29 and 30, Includes: Ref. 26 - 28

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

27

D37176

SLEEVE

- adapter

1шт.

28

D37362

TUBE NUT

- compression

1шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

ADAPTER ASSEMBLY - service part, Includes: Ref. 29 and 30

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

30

222-500

TUBE NUT,5/16" - 24 NPT

NUT AND SLEEVE - adapter

1шт.

31

D36946

TUBE

- nylon, 28-13/16" (732 mm) long, cut from bulk tube, see Parts Substitution List for bulk tube options, restriction indicator to air cleaner

1шт.

32

H357707

FLANGE

BRACKET - restriction indicator mounting

1шт.

33

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

34

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

35

25-104

NUT,1/4"-20, G5

2шт.

D35091

PIPE FITTING

ADAPTER - female, Includes: Ref. 36 - 38

1шт.

36

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

37

D37362

TUBE NUT

- adapter

1шт.

38

D37176

SLEEVE

- adapter

1шт.
