Запчасти Case 1455B (2-48) - RADIATOR ASSEMBLY (02) - ENGINE

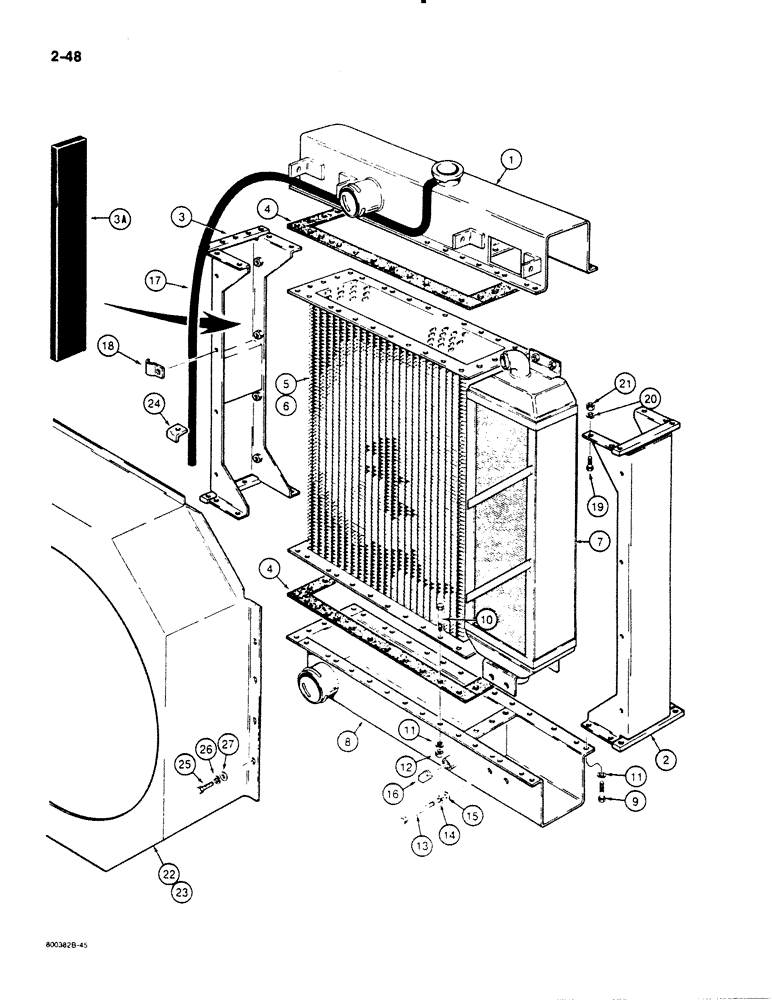

Схема запчастей Case 1455B - (2-48) - RADIATOR ASSEMBLY (02) - ENGINE

Артикул

Название

Примечание

Количество

R43427

RADIATOR

ASSEMBLY - with copper fins, without shroud, no longer available, order R49975 radiator assembly, Includes: Ref. 1 - 21

1шт.

R49975

RADIATOR

ASSEMBLY - with steel fins (antisandblast), without shroud (may be manufactured by Perfex or General Thermodynamics), Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

TANK - top

1шт.

2

NSS

NOT SOLD SEPARAT

SIDE ASSEMBLY - radiator, right-hand

1шт.

3

NSS

NOT SOLD SEPARAT

SIDE ASSEMBLY - radiator, left-hand

1шт.

3a

N7887

PADDING

INSULATOR - vibration, if used, single piece as shown not available, replace with three strips of 1968072C1, see below

1шт.

4

N6649

STRIP-GASKET

- cork, 36" (914 mm) long, cut to required length

1шт.

5

N6653

BODY

CORE - standard radiator, with copper fins, if used

1шт.

6

N6648

COOLER ASSY.

CORE - antisandblast radiator, with steel fins, if used

1шт.

7

N6646

COOLER

- oil

1шт.

8

N6647

TANK

- bottom

1шт.

9

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

14шт.

10

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

62шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

76шт.

12

9635082

NUT,5/16" - 18, Gr 5

60шт.

13

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

15

95-8

WASHER,1/2"

flat 1/2"

6шт.

16

217-76

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF, Brass

PLUG - pipe, square head, 1/4", brass

1шт.

17

N6650

TUBE

- overflow

1шт.

18

L32695

CLIP

- overflow tube

2шт.

19

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

21

9635082

NUT,5/16" - 18, Gr 5

4шт.

22

N6651

SHROUD

- dozer and drawbar models only

1шт.

23

N6652

SHROUD

- loader models only

1шт.

24

R10971

CLIP

- shroud

4шт.

25

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

8шт.

26

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

27

195-102

WASHER,1/4"

- flat, , plated 1/4"

8шт.

1968072C1

SEAL

STRIP - foam, 10 mm x 25 mm x 490 mm

3шт.

Выбрано товаров: 31
