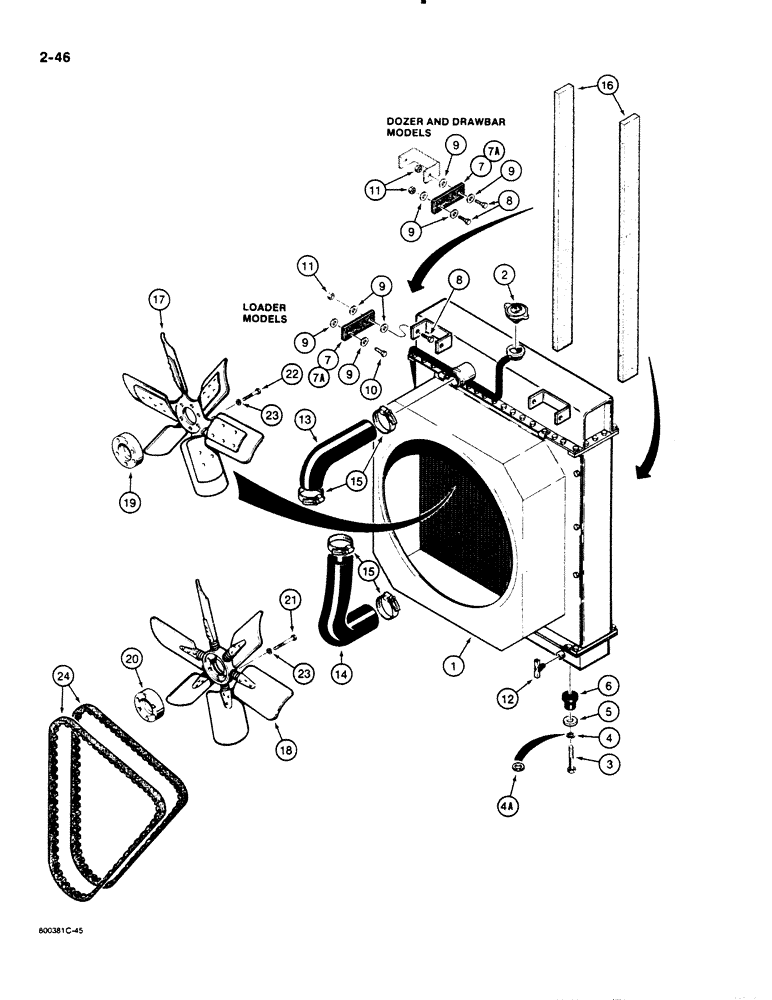

Запчасти Case 1455B (2-46) - RADIATOR, FAN, AND HOSES (02) - ENGINE

1

REF

INSTRUCTION

RADIATOR - for correct assembly and components see Fig. 2-48

1шт.

2

D25826

CAP

- radiator

1шт.

3

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

Use with Loctite 242 Hex, 5/8"-11 x 2 3/4", G5

2шт.

4

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , No longer used 5/8"

2шт.

4a

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, 5/8", 1-5/16" (33 mm) OD

2шт.

5

R43666

SPACER

WASHER - hardened, 5/8", 2-3/8" (60 mm) OD

2шт.

6

A59516

RUBBER MOUNTING,63.5mm OD x 50.8mm L

INSULATOR - vibration, rubber

2шт.

7

R31414

STRAP

- radiator mounting, 2" wide, no longer used, replace with R56068 strap, ref. 7A

2шт.

7a

R56068

STRAP

- radiator mounting, 2-1/2" wide

2шт.

8

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2 used on loader models, 4 used on dozer and drawbar models Hex, 3/8"-16 x 1 1/2", G5

4шт.

9

195-2037

WASHER,7/16" x 2" x .180"

- flat, 3/8"

8шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Use with Loctite 242, loader models only, replaces 1-1/8" long bolt and lock washer used in production on some models Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

11

131-352

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, two used on loader models, four used on dozer models

4шт.

12

217-92

COCK

VALVE - drain

1шт.

13

R43391

RADIATOR HOSE,2.50" ID x 16.50", SAE 100R4 Class D-1, SAE 20R4 Class SC

HOSE - radiator, upper, dozer models only

1шт.

13

R43393

RADIATOR HOSE,2.50" ID x 11.50", SAE 20R4

Upper, Loader Models Only 2.50" ID x 11.50", SAE 20R4

1шт.

14

R43392

RADIATOR HOSE,66.50 mm ID x 353.10 mm, SAE 20R4

HOSE - radiator, lower, dozer models only

1шт.

14

R43394

RADIATOR HOSE,66.50 mm ID x 327.70 mm, SAE 20R4

Loader Models Only 66.50 mm ID x 327.70 mm, SAE 20R4

1шт.

15

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, adjustable

4шт.

16

R53694

PAD

- 38" (990 mm) x 3" (76 mm) x 1" (25 mm), adhesive-backed, radiator sides

2шт.

17

A173018

FAN

- pusher, if used

1шт.

18

R29168

FAN

- reversible, if used

1шт.

19

R41827

BUSHING

SPACER - pusher fan, dozer models

1шт.

20

R41829

ELECTRO/HYD CONTACT

SPACER - reversible fan, dozer models

1шт.

21

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Reversible fan, dozer models only Hex, 3/8"-16 x 2", G5

6шт.

22

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Pusher fan, loader models only Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

22

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Pusher fan, dozer models only Hex, 3/8"-16 x 2 1/2", G5

6шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

24

R28518

SET OF BELTS,0.69" W x 67.00" L

Fan, Matched set of two 0.69" W x 67.00" L

1шт.
