Запчасти Case 1455B (2-44) - ENGINE AND TORQUE CONVERTER MOUNTING (02) - ENGINE

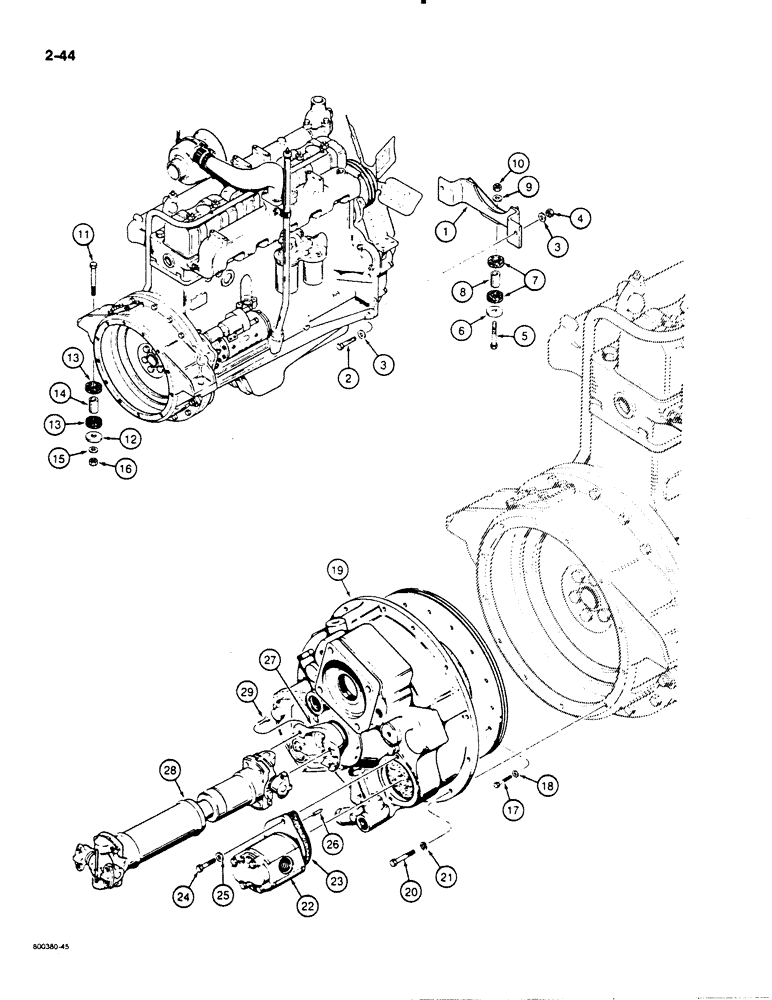

Схема запчастей Case 1455B - (2-44) - ENGINE AND TORQUE CONVERTER MOUNTING (02) - ENGINE

Артикул

Название

Примечание

Количество

1

R35450

SUPPORT

- engine mounting

1шт.

2

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex head, 3/4" - 10 NC x 2-3/4", grade 8

2шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, 3/4"

4шт.

4

131-1205

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

2шт.

5

26-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

- hex head, 3/4" - 10 NC x 3-1/2", grade 8

1шт.

6

R33373

WASHER

- special

1шт.

7

R33359

PAD

INSULATOR - vibration, front engine mounting

2шт.

8

R27264

SPACER

- engine mounting, front

1шт.

9

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, 3/4"

1шт.

10

131-1205

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

11

26-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

- hex head, 3/4" - 10 NC x 4-1/2", grade 8

2шт.

12

R52105

WASHER,19.45mm ID x 63.5mm OD x 6mm Thk

- special

2шт.

13

R32663

SPACER

INSULATOR - vibration, rear engine mounting

4шт.

14

R27264

SPACER

- engine mounting, rear

2шт.

15

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, 3/4"

2шт.

16

131-1205

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

2шт.

17

121-205

LOCK BOLT,Lock Place, Hex, 3/8" - 16 x 3/4", Gr 8

BOLT - hex head, self-locking, 3/8" - 16 NC x 3/4", grade 8

16шт.

18

R14978

WASHER,9.91mm ID x 22.23mm OD x 1.52mm Thk

- special

16шт.

19

REF

INSTRUCTION

TORQUE CONVERTER - for correct assembly and components see Figs. 6-206 and 6-210

1шт.

20

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

12шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

22

R45996

PUMP

- transmission charging, parts list Fig. 6-286

1шт.

23

D32000

GASKET

- transmission charging pump

1шт.

24

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

25

D32117

COPPER WASHER

WASHER, COPPER, 3/8"

2шт.

26

138-88

LOCK PIN,3/16" x 1/2", Slotted

PIN, 3/16" x 1/2", Slotted

1шт.

27

R36611

YOKE

- drive, at torque converter, part of torque converter assembly

1шт.

28

R37917

DRIVE SHAFT

- parts list Fig. 6-212

1шт.

29

328-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 8

- hex, 3/8"-24 NF x 1-3/4", grade 8, phosphate coated

8шт.

Выбрано товаров: 29
