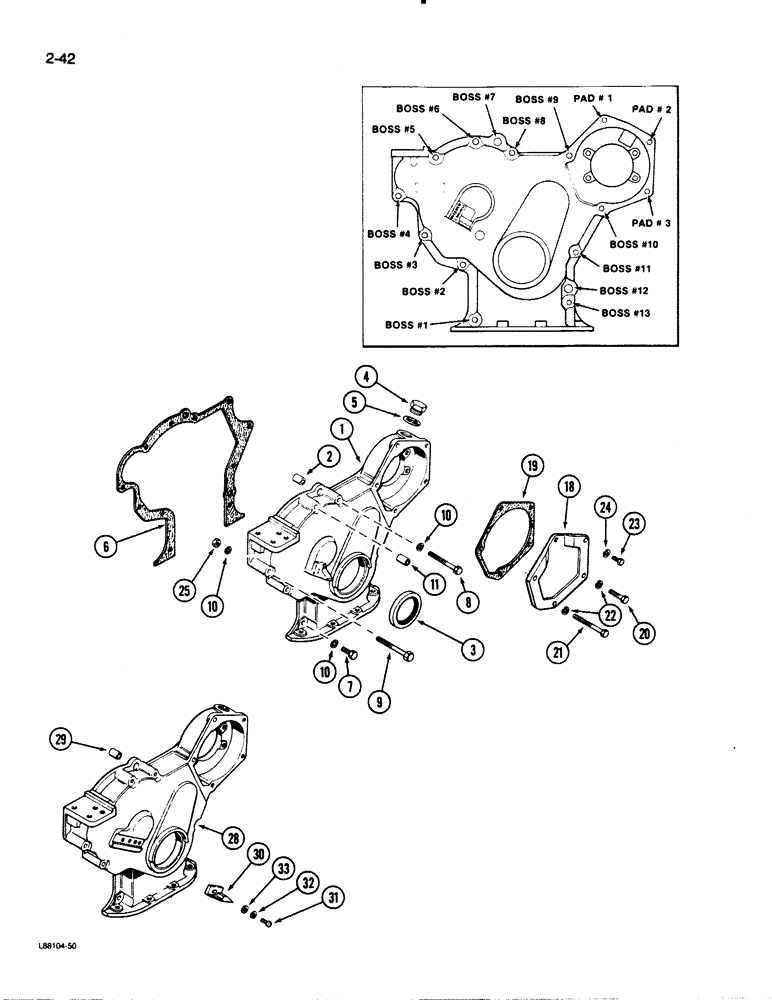

Запчасти Case 1455B (2-42) - TIMING GEAR COVER, 504BDT DIESEL ENGINE (02) - ENGINE

1

A166141

HOUSING

COVER ASSEMBLY - timing gear (Prior to Engine Serial Number 10335337) (Replaces A58609), Includes: Ref. 2

1шт.

2

A58611

PIN

- locating

2шт.

3

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, crankshaft front

1шт.

4

A21140

PLUG

- timing hole

1шт.

5

A58613

SEALING WASHER

GASKET - plug

1шт.

6

A58612

GASKET

-, Serial Range: cover-block

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(Boss 1, 2, 11 and 13) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

8

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch (Boss 3, 6 and 8)

3шт.

9

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch (Boss 4 and 5)

2шт.

10

92-6

LOCK WASHER,3/8"

9шт.

11

A19774

BUSHING

SPACER - alternator pry point

1шт.

18

A61053

COVER

- pump drive gear

1шт.

19

A58615

GASKET

- cover

1шт.

20

A151921

BOLT

- drilled, 1-1/4 inch (Pad 2 and 3)

2шт.

21

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch (Boss 9 and 10)

2шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

24

92-5

LOCK WASHER,5/16"

1шт.

25

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch

2шт.

28

A166142

COVER

ASSEMBLY - timing gear (Engine Serial Number 10335337 and after) (Replaces A63909), Includes: Ref. 29

1шт.

29

A58611

PIN

- locating

1шт.

30

A63911

INDICATOR

POINTER - timing

1шт.

31

169-119

SCREW,Sl Fil Hd, #12 - 24 x 3/4"

- slotted Phillips head, No. 12 x 3/4 inch

1шт.

32

192-108

LOCK WASHER,#12

WASHER - lock, No. 12

1шт.

33

195-16

WASHER,#12

- flat, 1/4 x 9/16 x 1/16 inch

1шт.
