Запчасти Case 1455B (2-40) - ENGINE GASKET KITS, 504BDT DIESEL ENGINE, VALVE GRIND KIT (02) - ENGINE

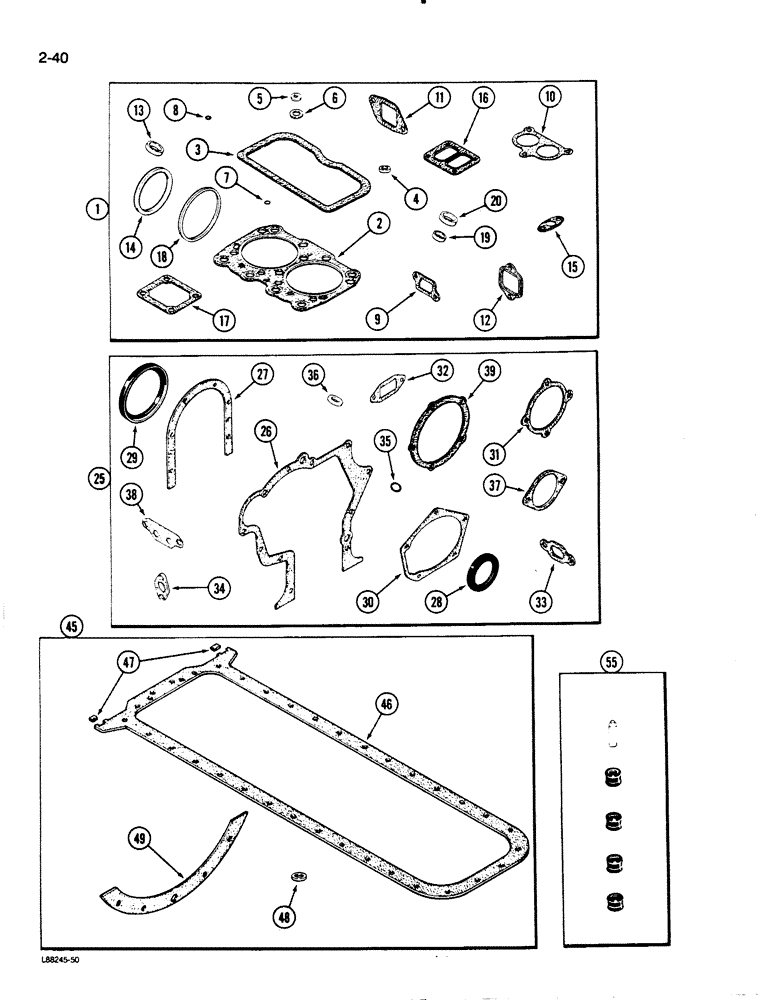

Схема запчастей Case 1455B - (2-40) - ENGINE GASKET KITS, 504BDT DIESEL ENGINE, VALVE GRIND KIT (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A157300

GASKET

KIT - valve grind, Includes: Ref. 2 - 20

1шт.

For complete engine overhaul, order A157300, A44075 and 52479.

1шт.

2

A138397

CYLINDER HEAD GASKET

cylinder, Serial Range: head-block

3шт.

3

A156960

CYLINDER HEAD GASKET,3.05mm Thk

cylinder head cover

3шт.

4

A142098

GROMMET

cover studs

6шт.

5

A166102

WASHER,6.45mm ID x 12.7mm OD x 0.81mm Thk

GASKET - breather tube bolt

3шт.

6

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

breather, Serial Range: tube-cover

3шт.

7

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

rocker shaft oil tube

3шт.

8

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

valve stem

12шт.

9

A166147

GASKET

, Serial Range: manifold-head

3шт.

10

A166148

GASKET

, Serial Range: housing-manifold

1шт.

11

A58662

MANIFOLD GASKET

intake manifold

6шт.

12

A140252

MANIFOLD GASKET

exhaust manifold (metal faced) (Replaces A58895)

6шт.

13

A76640

GASKET

WASHER - injection nozzle tip

6шт.

14

A138817

RING,2.64mm Thk

SEAL - turbocharger

6шт.

15

A58892

GASKET,1.59mm Thk

turbocharger oil drain tube

1шт.

16

A58899

GASKET,0.45mm Thk

, Serial Range: turbocharger-manifold

2шт.

17

A58910

GASKET

air intake elbow

1шт.

18

A152831

SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk

- turbocharger exhaust

1шт.

19

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

carbon nozzle tip

6шт.

20

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

nozzle

6шт.

25

A44075

GASKET KIT

cylinder block, Includes: Ref. 26 - 39

1шт.

For complete engine overhaul, order A157300, A44075 and 52479.

1шт.

26

A58612

GASKET

timing gear cover, cyl block kit

1шт.

27

A32830

GASKET

rear oil seal retainer, cyl block kit

1шт.

28

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

oil, crankshaftfront, cyl block kit

1шт.

29

A62050

OIL SEAL

oil, crankshaft rear, cyl block kit

1шт.

30

A58615

GASKET

fuel pump cover, cyl block kit

1шт.

31

A58646

GASKET

water pump, cyl block kit

1шт.

32

A58649

GASKET

water pump body, cyl block kit

1шт.

33

A58670

GASKET

oil cooler tube to block, cyl block kit

1шт.

34

A58680

OIL PAN GASKET SET

oil cooler tube to water pump, cyl block kit

1шт.

35

A64434

O-RING,0.93" ID x 1.142" x 0.106"

oil filter base, cyl block kit

3шт.

36

A58613

SEALING WASHER

timing gear cover plug, cyl block kit

1шт.

37

A58617

GASKET

auxiliary drive cover, cyl block kit

1шт.

38

A58756

OIL PAN GASKET SET

oil filter boss (Not used this unit), cyl block kit

1шт.

39

A76656

GASKET

water pump body (Not used this unit), cyl block kit

1шт.

45

A152479

GASKET KIT

oil pan, Includes: Ref. 46 - 49

1шт.

For complete engine overhaul, order A157300, A44075 and 52479.

1шт.

46

A150688

GASKET

pan to block ( replaced A150689 ), oil

1шт.

47

A150690

OIL PAN GASKET SET

corner, pan, oil

2шт.

48

A27968

RING

drain plug (copper), oil pan

1шт.

49

A57966

GASKET

pan to transmission, oil

1шт.

55

M20614

SEAL KIT

SEAL - valve (Includes 4 seals and installation sleeve), oil pan

1шт.

Выбрано товаров: 44
