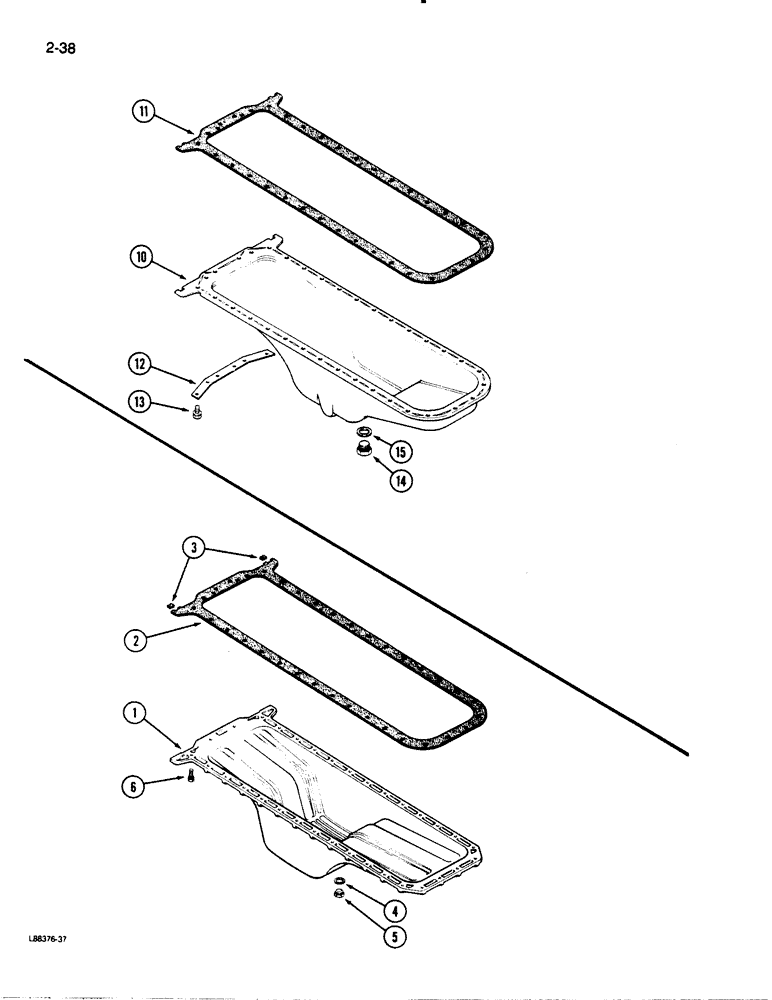

Запчасти Case 1455B (2-38) - OIL PAN, 504BDT DIESEL ENGINE, PRIOR TO ENGINE SERIAL NO. 10335337 (02) - ENGINE

1

A60502

PAN

engine oil, used prior to eng s/n 10335337

1шт.

2

REF

INSTRUCTION

GASKET - pan to block (See Fig. 2-40)

1шт.

3

A150690

OIL PAN GASKET SET

corner

1шт.

4

A27968

RING

copper, drain plug

1шт.

5

A34826

PLUG,7/8" - 18 ORB

drain, oil pan

1шт.

6

193-527

WASHER,Hex, 3/8" - 16 x 1 1/4"

BOLT - hex, 3/8 NC x 1-1/4 inch (Sems)

30шт.

10

A157043

PAN

engine oil, used after eng s/n 10335337

1шт.

11

REF

INSTRUCTION

GASKET - pan to block (See Fig. 2-40), eng s/n 10335337

1шт.

12

A65999

STRAP

reinforcement, eng s/n 10335337

1шт.

13

193-553

SCREW,SEMS, Hex Hd, 3/8"-16 x 7/8", G5

hex, 3/8 NC x 7/8 inch (with washer), eng s/n 10335337

32шт.

14

A34826

PLUG,7/8" - 18 ORB

drain, oil, eng s/n 10335337

1шт.

15

A27968

RING

drain plug, eng s/n 10335337

1шт.
