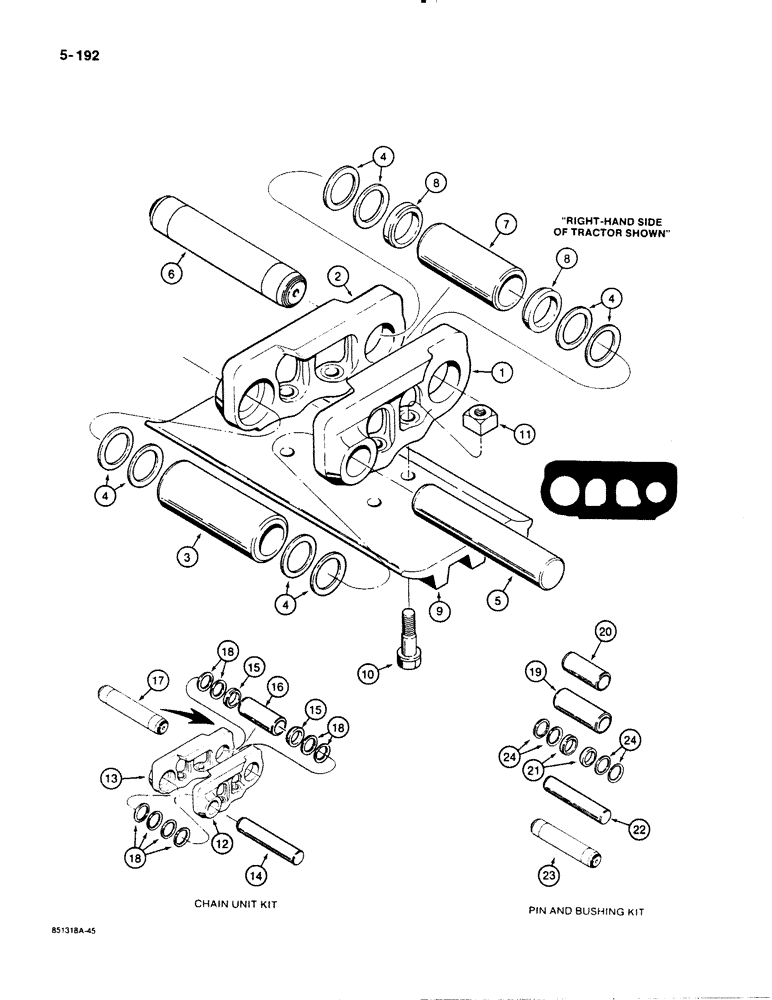

Запчасти Case 1455B (5-192) - R29244 AND R34890 STANDARD SEALED, TRACK CHAIN ASSEMBLIES IF USED (11) - TRACKS/STEERING

R29244

CHAIN (AG)

ASSEMBLY - 36 unit, loader and standard 74" (1880 mm) gauge dozer models, may be used with any sprocket option, if used, Includes: Ref. 1 - 8

2шт.

R34890

CHAIN (AG)

ASSEMBLY - 39 unit, 78" (1981 mm) gauge LGP dozer models, may be used with any sprocket option, no longer available, replace with R50443 CLT chain assembly on Fig. 5-196, Includes: Ref. 1 - 8

2шт.

1

R29242

LINK

track, right-hand (Requires 36 - 39)

39шт.

2

R29241

LINK

track, left-hand (Requires 36 - 39)

39шт.

3

R29193

BUSHING

standard pin, 2-5/8" (67 mm) OD (Requires 35 - 38)

38шт.

4

R29184

SEAL

BELLEVILLE SPRING - bushing (Requires 144 - 156)

156шт.

5

R29190

PIN

standard (Requires 35 - 38)

38шт.

For identification of the two standard sealed track chain assemblies used on this machine, compare the profiles of the track links on Figures. 5-192 and 5-194. The two different styles of links are not interchangeable.

1шт.

6

R54283

PIN

master, 0.003" (0.08 mm) oversize, replaces R29243 pin with knurled end

1шт.

7

R29192

BUSHING

master pin

1шт.

8

R29185

BUSHING

SPACER - master

2шт.

9

REF

INSTRUCTION

TRACK SHOE - see Figs. 5-198 and 5-200 for options (Requires 72 - 78)

78шт.

10

R29245

BOLT

special, use with all track shoes except self-cleaning (Requires 288 - 312)

312шт.

10

R43090

BOLT

special, use with self-cleaning track shoes only, see Fig. 5-200

312шт.

11

R29246

NUT

square, special (Requires 288 - 312)

312шт.

R51787

KIT

chain unit, includes instruction sheet, Includes: Ref. 12 - 18

1шт.

12

R29242

LINK

track, right-hand, chain unit kit

1шт.

13

R29241

LINK

track, left-hand, chain unit kit

1шт.

14

R29190

PIN

standard, chain unit kit

2шт.

For identification of the two standard sealed track chain assemblies used on this machine, compare the profiles of the track links on Figures. 5-192 and 5-194. The two different styles of links are not interchangeable.

1шт.

15

R29185

BUSHING

SPACER - master, chain unit kit

2шт.

16

R29192

BUSHING

master pin, chain unit kit

1шт.

17

R54283

PIN

master, 0.003" (0.08 mm) oversize, chain unit kit

1шт.

18

R29184

SEAL

BELLEVILLE SPRING - bushing, chain unit kit

8шт.

R51788

PACKAGE

KIT - pin and bushing, includes instruction sheet, chain unit, Includes: Ref. 19 - 24

1шт.

19

R29193

BUSHING

standard pin, long, kit, pin kit services complete track, both sides of trac for 36 & 39 trac chian assy

76шт.

20

R29192

BUSHING

master, short, pin kit services complete track, both sides of trac for 36 & 39 trac chian assy

2шт.

21

R29185

BUSHING

SPACER - master pin kit services complete track, both sides of trac for 36 & 39 trac chian assy

4шт.

22

R29190

PIN

standard, kit, pin & bushing kit services complete track, both sides of trac for 36 & 39 trac chian assy

76шт.

For identification of the two standard sealed track chain assemblies used on this machine, compare the profiles of the track links on Figures. 5-192 and 5-194. The two different styles of links are not interchangeable.

1шт.

23

R54283

PIN

master, 0.003" (0.08 mm) oversize, kit, bushing kit services complete track, both sides of trac for 36 & 39 trac chian assy

2шт.

24

R29184

SEAL

BELLEVILLE SPRING - pin & bushing kit services complete track, both sides of trac for 36 & 39 trac chian assy

304шт.

R29191

PIN

standard, service option, 0.003" (0.08 mm) oversize, not shown, bushin kit, pin & bushing kit services complete track, both sides of trac for 36 & 39 trac chian assy

1шт.

For identification of the two standard sealed track chain assemblies used on this machine, compare the profiles of the track links on Figures. 5-192 and 5-194. The two different styles of links are not interchangeable.

1шт.
