Запчасти Case 1455B (2-36) - ENGINE OIL PUMP, 504BDT DIESEL ENGINE, PRIOR TO ENGINE SN 10335337 (02) - ENGINE

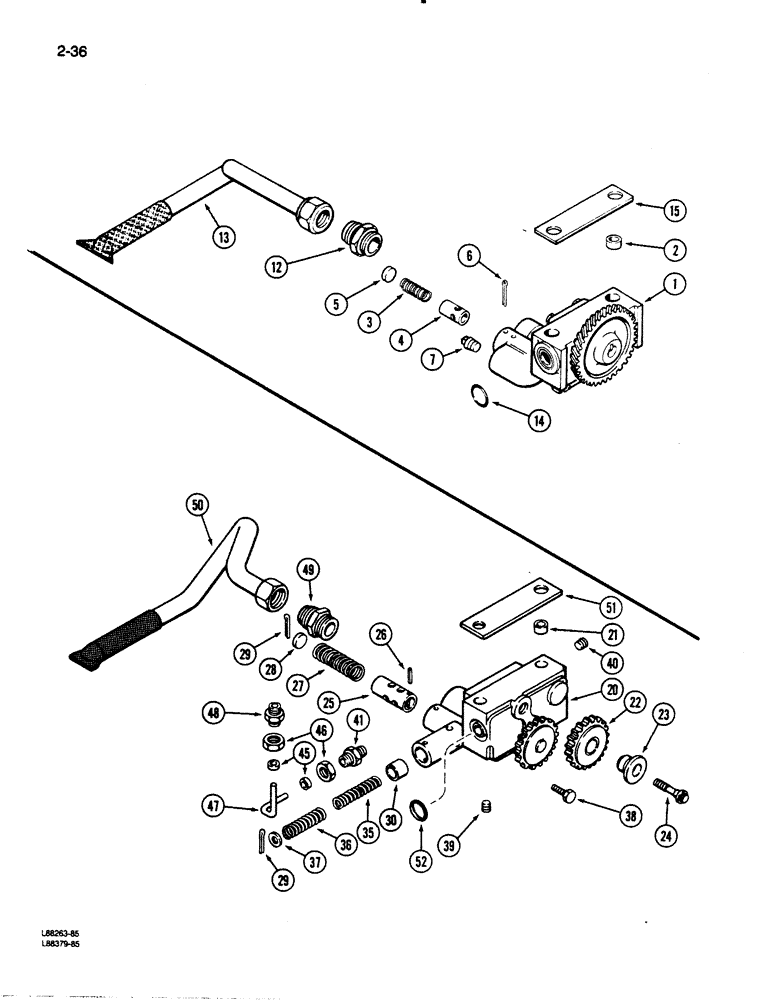

Схема запчастей Case 1455B - (2-36) - ENGINE OIL PUMP, 504BDT DIESEL ENGINE, PRIOR TO ENGINE SN 10335337 (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A153805

PUMP, ENGINE OIL

PUMP ASSEMBLY - engine oil, Includes: Ref. 2 - 7 to Before Serial Number

1шт.

2

A58915

SLEEVE

- locating

1шт.

3

A155980

SPRING

- relief valve

1шт.

4

A65083

VALVE

- relief

1шт.

5

41-1011

PLUG,Cup, 11/16"

- cup type, 11/16 inch diameter

1шт.

6

132-32

COTTER PIN,3/32" x 1 1/2"

PIN, Split (Cotter), 3/32" x 1 1/2"

1шт.

7

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket head, 1/2 inch PT

1шт.

12

A142004

CONNECTOR, ELEC

CONNECTOR - suction tube

1шт.

13

A139713

TUBE

- suction

1шт.

14

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- pump to block

1шт.

15

A58859

SHIM,.005" Thk

Pump to brg. cap .005" Thk

1шт.

20

A152998

PUMP

ASSEMBLY - engine oil, Includes: Ref. 21 - 41 After Serial, Start Serial: Number

1шт.

21

A58915

SLEEVE

- locating

1шт.

22

A63941

GEAR WHEEL

GEAR ASSEMBLY - idler

1шт.

23

A63944

SHAFT

- idler gear

1шт.

24

A63945

12 PT SCREW

BOLT - cap, LH thread

1шт.

25

A75286

VALVE

ASSEMBLY - relief (Includes cap plug), Includes: Ref. 26

1шт.

26

138-2063

PIN,3/32" x 1", Coiled

1шт.

27

A63949

SPRING

- relief valve, 2-7/8 inch free length

1шт.

28

41-1016

PLUG,Cup, 1"

- relief valve

1шт.

29

132-34

COTTER PIN,3/32" x 1 3/4"

PIN, Split (Cotter), 3/32" x 1 3/4"

2шт.

30

A76152

VALVE

- safety, pressure relief

1шт.

35

A76154

SPRING

- inner, 3-7/64 inch free length

1шт.

36

A76153

SPRING

- outer, 2-7/16 inch free length

1шт.

37

195-25

WASHER,3/8"

- flat, 13/32 x 13/16 x 1/16 inch

1шт.

38

26-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

4шт.

39

221-850

PLUG,Hex Soc, 1/16"-27

- hex socket head, 1/16 inch PT

3шт.

40

221-843

PLUG,Hex Soc, 3/8"-18

- hex socket head, 3/8 inch PT

1шт.

41

222-4022

HYD CONNECTOR,1/2"-24 x 1/8" NPTF

CONNECTOR - 1/4 tube x 1/8 inch PT

1шт.

45

222-153

SLEEVE,1/4" Tube

2шт.

46

87017024

TUBE NUT,1/2"-24

NUT - 1/4 inch tube

2шт.

47

A75290

TUBE

- sensing, oil gallery

1шт.

48

222-4022

HYD CONNECTOR,1/2"-24 x 1/8" NPTF

CONNECTOR - 1/4 tube x 1/8 inch PT (In block)

1шт.

49

A142004

CONNECTOR, ELEC

CONNECTOR - suction tube

1шт.

50

A142503

SCREEN

TUBE ASSEMBLY - suction (Includes screen)

1шт.

51

A58859

SHIM,.005" Thk

Pump mounting .005" Thk

1шт.

52

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- oil port, 59/64 ID x 7/64 inch width

1шт.

Выбрано товаров: 37
