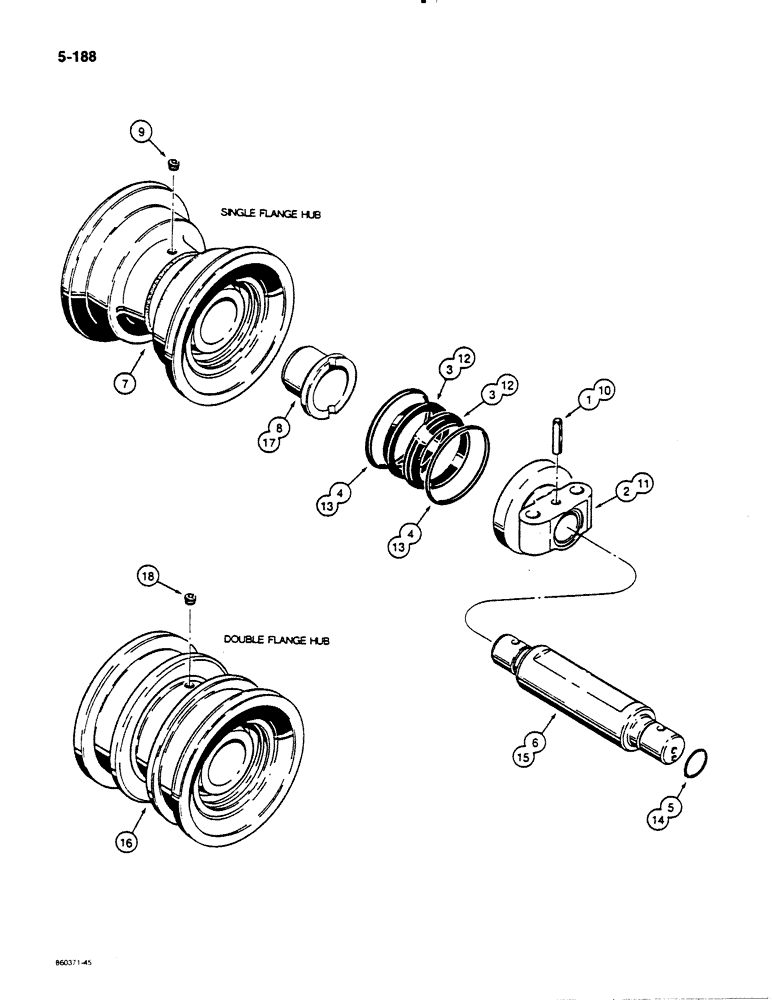

Запчасти Case 1455B (5-188) - INTERTRAC TRACK ROLLERS (SHAFT RETAINED BY ROLL PINS) SINGLE FLANGE TRACK ROLLER - R33583 (11) - TRACKS/STEERING

R33583

ROLLER

ASSEMBLY - track, single flange, Includes: Ref. 1 - 9

6шт.

1

R33593

PIN

roll, shaft and cap retaining

2шт.

2

R33590

CAP

end collar

2шт.

R36780

SEAL,100mm ID x 123.7mm OD x 31.8mm Thk

ASSEMBLY - face, Includes: Ref. 3 and 4

2шт.

3

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

4

NSS

NOT SOLD SEPARAT

RING - seal

2шт.

5

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

shaft

2шт.

6

R33591

SHAFT

track roller

1шт.

R33587

ROLLER

HUB ASSEMBLY - track, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

HUB - track roller

1шт.

8

R33589

BUSHING

hub

2шт.

9

R33557

PLUG

track roller

1шт.

R33584

ROLLER

ASSEMBLY - track, double flange (Requires 6 - 8), Includes: Ref. 10 - 18

6-8шт.

10

R33593

PIN

roll, shaft and cap retaining, diouble flange track roller - R33584

2шт.

11

R33590

CAP

end collar, diouble flange track roller - R33584

2шт.

R36780

SEAL,100mm ID x 123.7mm OD x 31.8mm Thk

ASSEMBLY - face, diouble flange track roller - R33584, Includes: Ref. 12 and 13

2шт.

12

NSS

NOT SOLD SEPARAT

SEAL - rubber, diouble flange track roller - R33584

2шт.

13

NSS

NOT SOLD SEPARAT

RING - seal, diouble flange track roller - R33584

2шт.

14

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

shaft, diouble flange track roller - R33584

2шт.

15

R33591

SHAFT

diouble flange track roller - R33584

1шт.

R33588

ROLLER

HUB ASSEMBLY - diouble flange track - R33584, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

HUB - diouble flange track roller - R33584

1шт.

17

R33589

BUSHING

hub, diouble flange track roller - R33584

2шт.

18

R33557

PLUG

diouble flange track roller - R33584

1шт.
