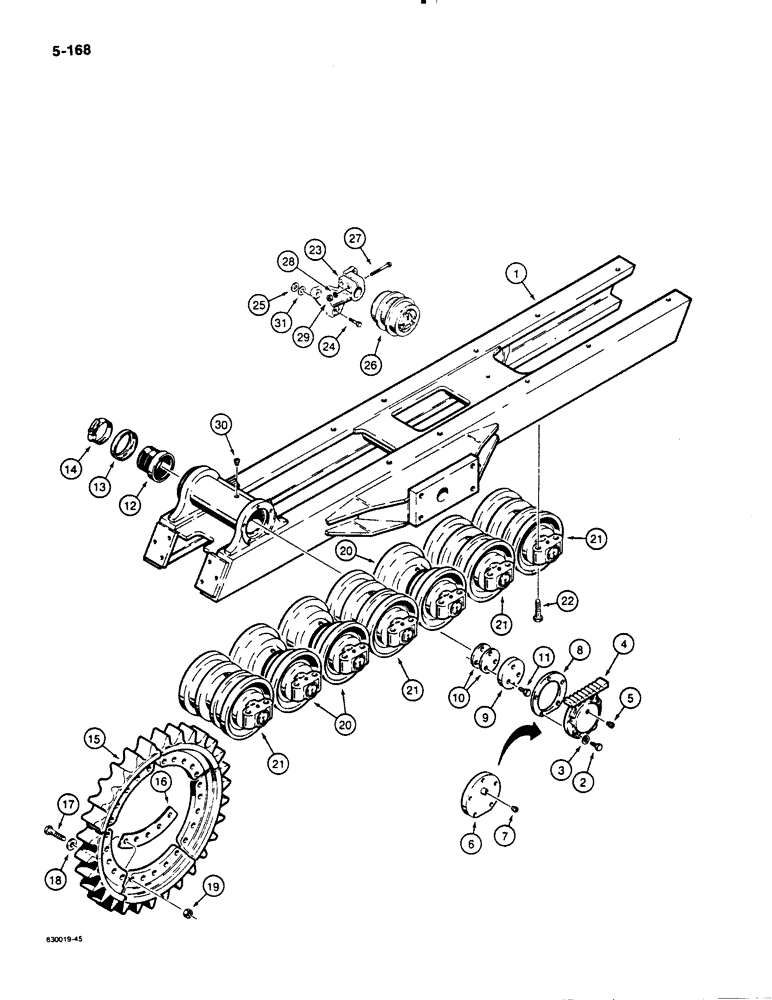

Запчасти Case 1455B (5-168) - TRACK FRAME, SPROCKET, AND ROLLERS, 78" (1981 MM) GAUGE LGP DOZER MODELS (11) - TRACKS/STEERING

1

R43668

FRAME

TRACK FRAME - right-hand, 78" (1981 mm) gauge LGP dozer models

1шт.

1

R43667

FRAME

TRACK FRAME - left-hand, 78" (1981 mm) gauge LGP dozer models, not shown

1шт.

2

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

10шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

10шт.

4

R38494

COVER

- pivot shaft, no longer used, replace with R46764 cover assembly (ref. 6)

2шт.

5

21-841

PLUG - hex socket head, 1/4" NPT

2шт.

6

R46764

COVER

ASSEMBLY - pivot shaft, Includes: Ref. 7 plug

2шт.

7

221-841

PLUG

- hex socket head, 1/4" NPT

1шт.

8

R27377

GASKET,0.38mm Thk

- pivot shaft cover

1шт.

9

R36950

PLATE

- end, pivot shaft

2шт.

10

R28436

SHIM,69.85mm ID x 96.52mm OD x 0.79mm Thk

Pivot shaft end plate .031" Thk

1шт.

11

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex head, 5/8" - 11 NC x 2", grade 8, use with Loctite

6шт.

12

CASR42082

SEAL

- pivot shaft

2шт.

13

R42081

SEAL

GUARD - seal, pivot shaft

2шт.

14

214-180

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm

CLAMP - adjustable, pivot shaft

2шт.

15

R48199

SEGMENT

SECTION - sprocket, may be used with standard or Case Lubricated Track chain, see Figs. 5-192 - 5-196

10шт.

16

R43355

SHIM

- section, sprocket

1шт.

17

R39270

BOLT

- hex head, 3/4" - 10 NC x 3-1/4", grade 8, special

50шт.

18

R44685

WASHER,19.84mm ID x 41.148mm OD x 8.13mm Thk

- hardened

50шт.

19

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

50шт.

20

REF

INSTRUCTION

TRACK ROLLER - single flange for correct assembly and components see Fig. 5-186 or 5-188

6шт.

21

REF

INSTRUCTION

TRACK ROLLER - double flange, for correct assembly and components see Fig. 5-186 or 5-188

8шт.

22

26-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

- hex head, 3/4" - 10 NC x 3-1/4", grade 8, use with Loctite 242

48шт.

23

R43229

BRACKET

- carrier roller

4шт.

24

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- hex head, 5/8" - 11 NC x 1-3/4", grade 8, use with Loctite 242

12шт.

25

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened, 5/8"

12шт.

26

REF

INSTRUCTION

CARRIER ROLLER - track, for correct assembly and components see Fig. 5-184

4шт.

27

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- hex head, 5/8" - 11 NC x 3-1/2"

8шт.

28

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

29

25-1010

NUT,5/8"-11, G5

8шт.

30

221-841

PLUG

- hex socket head, 1/4" NPT

2шт.

31

D35268

SHIM,1/32" Thk

Carrier roller bracket, No longer used 1/32" Thk

1шт.
