Запчасти Case 1455B (2-34) - PISTONS AND SLEEVES, 504BDT DIESEL ENGINE, CONNECTING ROD (02) - ENGINE

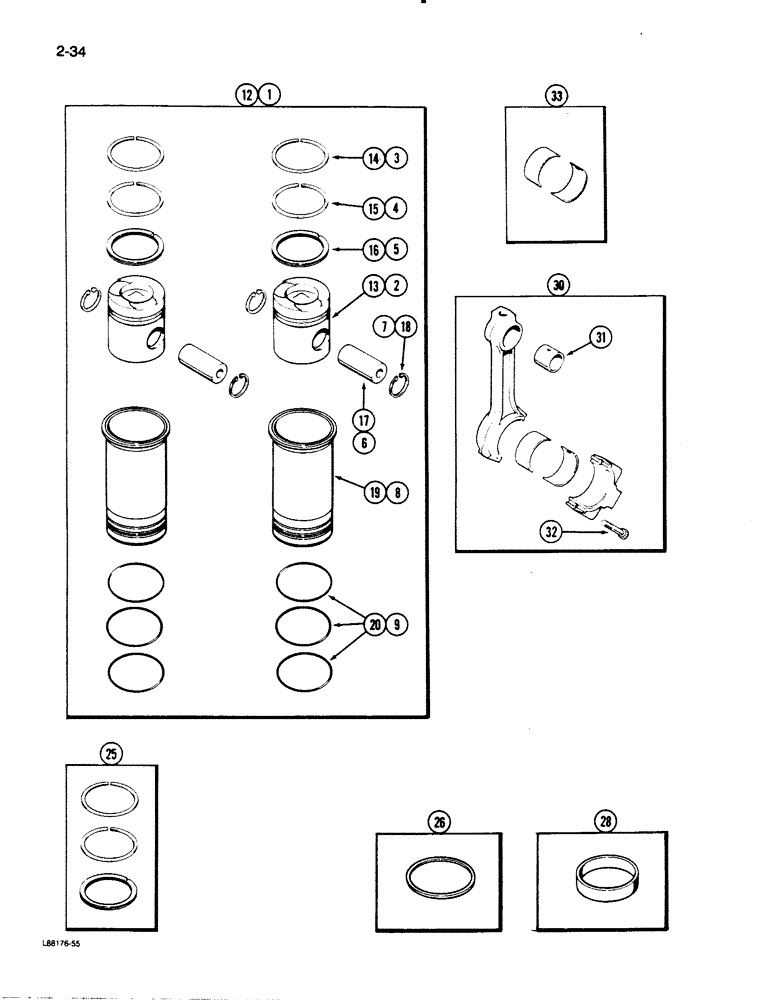

Схема запчастей Case 1455B - (2-34) - PISTONS AND SLEEVES, 504BDT DIESEL ENGINE, CONNECTING ROD (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A152177

SET

PISTON AND SLEEVE KIT - engine (Set of 2) Prior to Engine Serial Number 10335337), Includes: Ref. 2 - 9

3шт.

2

A146697

PISTON

- cylinder, 4-5/8 inch bore

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, top groove (Order Ref. 25)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, second groove (Order Ref. 25)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, third groove (Order Ref. 25)

2шт.

6

A58584

PIN,45.71mm OD x 98.17mm L

- piston

2шт.

7

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , piston pin 1.812", Int, #181

4шт.

8

A153638

SLEEVE CYLINDER

SLEEVE - piston (3 grooves)

2шт.

NSS

NOT SOLD SEPARAT

SLEEVE - piston (2 groove) Order 3 groove sleeve A153638

2шт.

9

A144667

O-RING,4.734" ID x 5.012" OD x 0.0139"

- sleeve

6шт.

12

A151067

PISTON

AND SLEEVE KIT - engine (Set of 2) (Engine Serial Number 10335337 and after), Includes: Ref. 13 - 20

3шт.

13

A152485

PISTON

- cylinder, 4-5/8 inch bore

2шт.

14

NSS

NOT SOLD SEPARAT

RING - compression, top groove (Order Ref. 25)

2шт.

15

NSS

NOT SOLD SEPARAT

RING - compression, second groove (Order Ref. 25)

2шт.

16

NSS

NOT SOLD SEPARAT

RING - oil control, third groove (Order Ref. 25)

2шт.

17

A58584

PIN,45.71mm OD x 98.17mm L

- piston

2шт.

18

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , piston pin 1.812", Int, #181

4шт.

19

A153638

SLEEVE CYLINDER

SLEEVE - piston (3 grooves)

2шт.

20

A144667

O-RING,4.734" ID x 5.012" OD x 0.0139"

- sleeve

6шт.

25

A44054

RING

KIT - piston re-ring (Set of 1)

6шт.

26

A148553

SHIM

- sleeve, 0.010 inch (Repairs only)

1шт.

26

A148554

SHIM

- sleeve, 0.005 inch (Repairs only)

1шт.

28

A150327

BUSHING,129.06mm ID x 133.49mm OD x 30.15mm L

- sleeve (Repairs only)

1шт.

A150328

ADHESIVE

LOCTITE - tube (Not shown)

1шт.

30

A65032

ROD

ASSEMBLY - connecting, Includes: Ref. 31 and 32

6шт.

30

AR65032

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

6шт.

30

AC65032

CORE-ROD CONNECTING

Return Part Number Connecting Rod

6шт.

31

A58580

BUSHING,45.3mm ID x 50.46mm OD x 45.47mm L

- piston pin

1шт.

32

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - cap

2шт.

33

A41758

BEARING LINER

INSERT - rod bearing (Set of 2) (Standard)

6шт.

33

A41899

BEARING LINER

INSERT - rod bearing (Set of 2) 0.002 inch undersize

6шт.

33

A41900

BEARING LINER

INSERT - rod bearing (Set of 2) 0.010 inch undersize

6шт.

33

A41901

BEARING LINER

INSERT - rod bearing (Set of 2) 0.020 inch undersize

6шт.

33

A41902

BEARING LINER

INSERT - rod bearing (Set of 2) 0.030 inch undersize

6шт.

Выбрано товаров: 34
