Запчасти Case 1455B (2-32) - FLYWHEEL HOUSING, 504BDT DIESEL ENGINE (02) - ENGINE

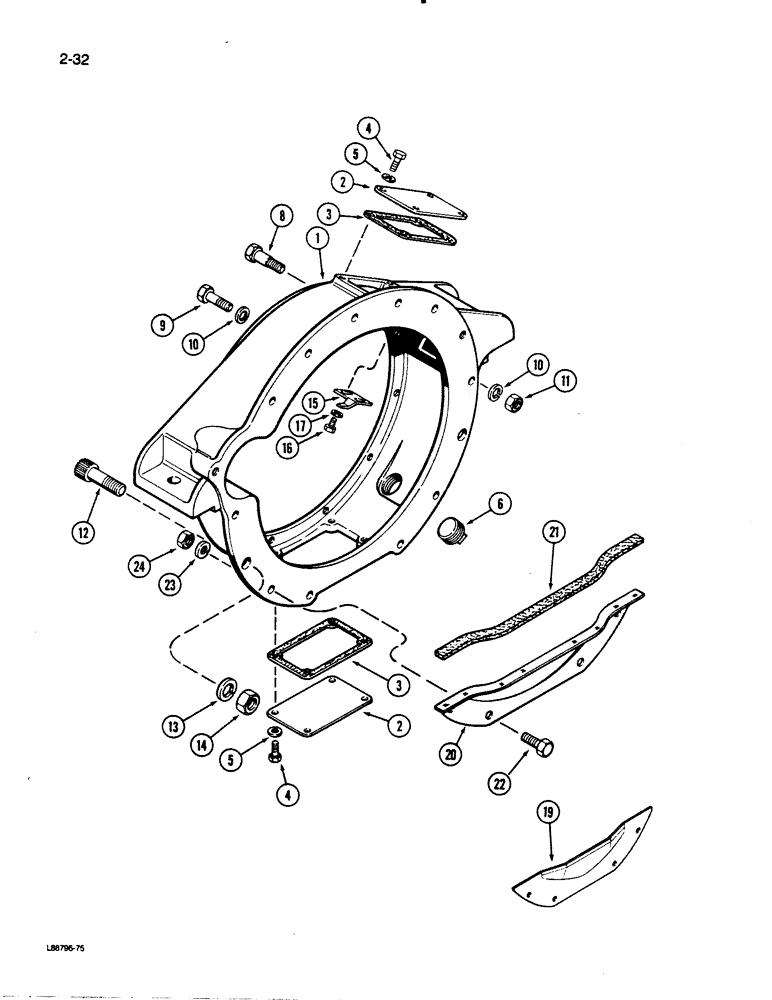

Схема запчастей Case 1455B - (2-32) - FLYWHEEL HOUSING, 504BDT DIESEL ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A153190

HOUSING

ASSEMBLY - flywheel, Includes: Ref. 2 - 6

1шт.

2

A22584

COVER

PLATE - hand hole cover

2шт.

3

A22585

GASKET

- cover plate

2шт.

4

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

5

92-5

LOCK WASHER,5/16"

8шт.

6

221-17

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - square head, 1-1/4 inch PT

1шт.

8

A149764

STEP BOLT

BOLT - dowel, 2-13/16 inch

1шт.

8

A149765

STEP BOLT

BOLT - dowel, 1-3/8 inch

1шт.

9

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

9

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2 NC x 1-3/4 inch

1шт.

9

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

2шт.

10

92-8

LOCK WASHER,1/2"

8шт.

11

25-108

NUT,1/2"-13, G5

- hex, 1/2 inch NC

4шт.

12

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

- 12 point, 3/4 NC x 3 inch NC

2шт.

13

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

14

129-137

NUT,3/4"-10, G5

2шт.

15

A22586

INDICATOR

POINTER - timing (Prior to Engine Serial Number 10335337)

1шт.

16

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

A58931

GUARD

SHIELD - dust (Engine Serial Number 10335337 and after)

1шт.

20

A64462

GUARD

SHIELD - dust (Prior to Engine Serial Number 10335337)

1шт.

21

A57144

GASKET

- shield

1шт.

22

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

23

92-8

LOCK WASHER,1/2"

4шт.

24

25-108

NUT,1/2"-13, G5

- hex, 1/2 inch NC

4шт.

Выбрано товаров: 25
