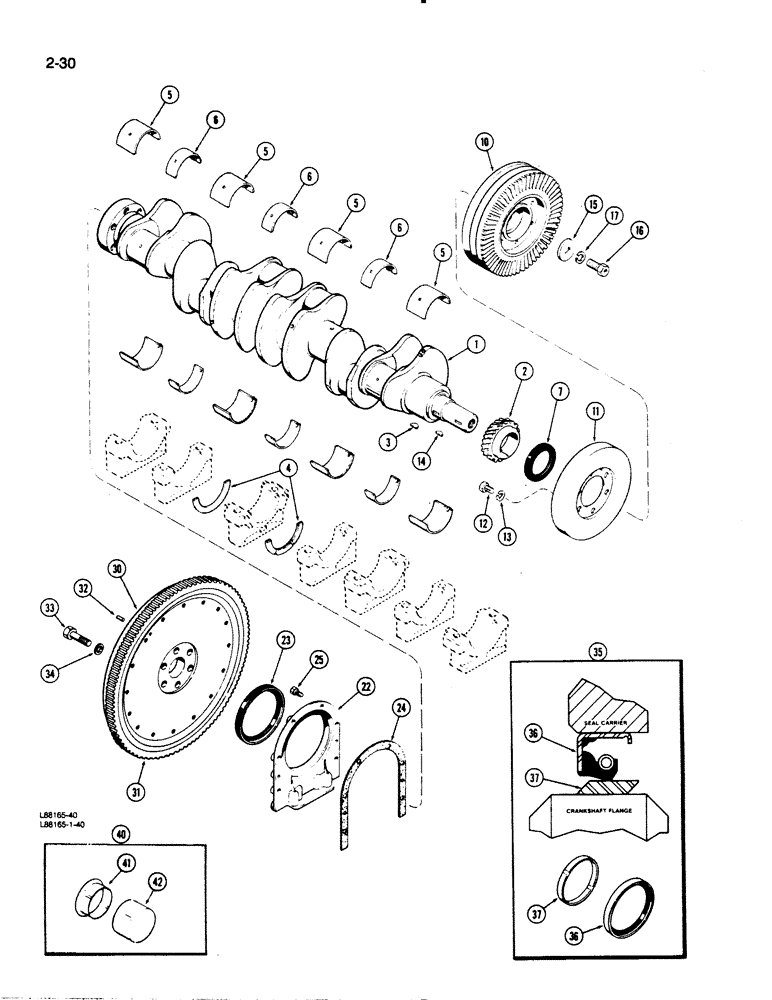

Запчасти Case 1455B (2-30) - CRANKSHAFT AND FLYWHEEL, 504BDT DIESEL ENGINE (02) - ENGINE

1

A77270

CRANKSHAFT

ASSEMBLY - engine, Includes: Ref. 2 and 3

1шт.

REF: 1A .010" UNDERSIZE CRANKSHAFT IS

1шт.

2

A66404

GEAR

- crankshaft

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear #C, 5/16" x 1 1/8", HT

1шт.

4

A58565

WASHER

- thrust, 0.156 inch (Standard)

2шт.

4

A42447

WASHER

- thrust, 0.162 inch (Oversize)

2шт.

5

A43090

BEARING LINER

LINERS - wide main bearing (Set of 2) (Standard)

4шт.

5

A43124

LINING

LINERS - wide main bearing (Set of 2) 0.002 inch undersize

4шт.

5

A43125

CRANKSHAFT BEARING

LINERS - wide main bearing (Set of 2) 0.010 inch undersize

4шт.

5

A43126

LINING

LINERS - wide main bearing (Set of 2) 0.020 inch undersize

4шт.

5

A43127

LINING

LINERS - wide main bearing (Set of 2) 0.030 inch undersize

4шт.

6

A43089

BEARING LINER

LINERS - narrow main bearing (Set of 2) (Standard)

3шт.

6

A43120

LINING

LINERS - narrow main bearing (Set of 2) 0.002 inch undersize

3шт.

6

A43121

SET OF CONN ROD BRGS STD

LINERS - narrow main bearing (Set of 2) 0.010 inch undersize

3шт.

6

A43122

LINING

LINERS - narrow main bearing (Set of 2) 0.020 inch undersize

3шт.

6

A43123

SET OF CONN ROD BRGS STD

LINERS - narrow main bearing (Set of 2) 0.030 inch undersize

3шт.

7

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, front

1шт.

10

A58828

PULLEY

- belt

1шт.

11

A58900

DAMPER

- pulley

1шт.

12

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

6шт.

13

92-6

LOCK WASHER,3/8"

6шт.

14

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Pulley #C, 5/16" x 1 1/8", HT

1шт.

15

A156428

WASHER

- pulley retainer

1шт.

16

114-613

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

SCREW - pulley to crankshaft, 5/8 NF x 1-1/2 inch

1шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

22

A57457

RETAINER

- rear oil seal

1шт.

23

A62050

OIL SEAL

- oil, rear

1шт.

24

A32830

GASKET

- retainer

1шт.

25

193-554

SCREW,SEMS, Hex Hd, 3/8"-16 x 1 1/4", G5

BOLT - hex, 3/8 NC x 1-1/4 inch (Sems)

6шт.

30

A60508

FLYWHEEL

ASSEMBLY - engine, Includes: Ref. 31 and 32

1шт.

31

A27920

GEAR

- ring

1шт.

32

A27840

PIN

- timing

1шт.

33

A182040

SCREW

BOLT - mounting, flywheel (Replaces 28-1024)

6шт.

34

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - bolt

6шт.

35

A43194

KIT

SEAL KIT - wear, rear, Includes: Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL - wear

1шт.

37

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

40

A154684

SLEEVE

SEAL KIT - wear, front, Includes: Ref. 41 and 42

1шт.

41

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

42

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.
