Запчасти Case 1455B (2-28) - CYLINDER BLOCK, 504BDT DIESEL ENGINE, ENGINE SERIAL NO. 10335337 & AFT (02) - ENGINE

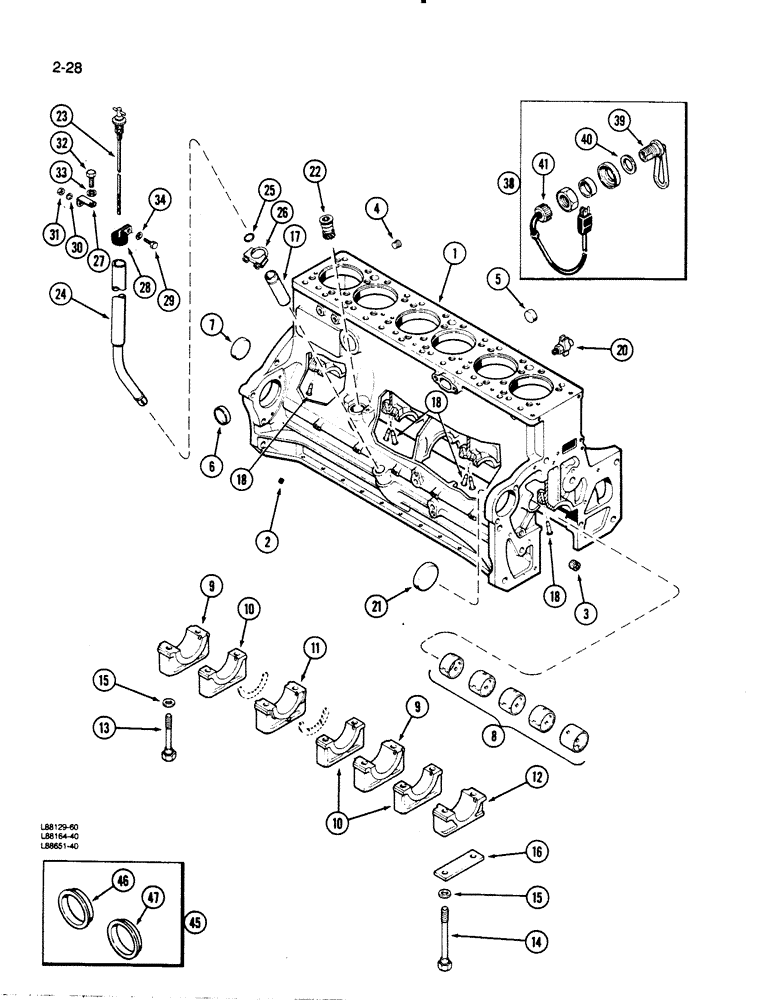

Схема запчастей Case 1455B - (2-28) - CYLINDER BLOCK, 504BDT DIESEL ENGINE, ENGINE SERIAL NO. 10335337 & AFT (02) - ENGINE

Артикул

Название

Примечание

Количество

A166095

CRANKCASE

BLOCK ASSEMBLY - short (Includes stripped block, pistons, rods, crankshaft and bearings, camshaft and gears), Includes: Ref. 1 - 34

1шт.

1

AR44077

ENGINE, EXCHANGE

BLOCK ASSEMBLY - stripped (Remanufactured, North America Only), Includes: Ref. 2 - 21

1шт.

AR151233

REMAN-SHORT ENGINE

Remanufactured, For N.A. Only

1шт.

1

A44077

CRANKCASE

BLOCK ASSEMBLY - stripped (New) (Casting A66527), Includes: Ref. 2 - 21

1шт.

2

221-1849

PLUG

hex socket head, 1/8 inch PT

6шт.

3

221-1843

PLUG

hex socket head, 3/8 inch PT

4шт.

4

221-842

DRAIN PLUG,Hex Soc, 3/8"-18 NPTF

hex socket head, 3/4 inch PT

1шт.

5

A58568

PLUG,Cup, 1 3/8", Stainless

cup type, 1-3/8 inch diameter

3шт.

6

A58569

PLUG,Cup, 2", Stainless

cup type, 2 inch diameter

1шт.

7

A24361

PLUG

cup type, 2-3/8 inch diameter

1шт.

8

REF

INSTRUCTION

BUSHINGS - camshaft (See Fig. 2-24)

1шт.

9

A154398

BEARING CAP

wide crankshaft bearing

2шт.

10

A154397

BEARING CAP

narrow crankshaft bearing

3шт.

11

A154395

CAP

center crankshaft bearing

1шт.

12

A154396

BEARING CAP

front crankshaft bearing

1шт.

13

A66948

STEP BOLT

bearing cap, 5 inch

12шт.

14

A66949

STEP BOLT

front beawring cap and oil pump, 7-1/4 inch

2шт.

15

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

cap bolt

14шт.

16

A58859

SHIM,.005" Thk

Oil pump .005" Thk

1шт.

17

A34540

TUBE

oil filler and dipstick

1шт.

18

A63903

NOZZLE CAP

piston cooling

6шт.

20

A23656

COCK, DRAIN

VALVE - water

1шт.

21

A41-1052

PLUG - cup type, 3-1/4 inch diameter

1шт.

22

A34266

DRIVE

tachometer

1шт.

23

A155633

DIPSTICK

oil level

1шт.

24

A155591

TUBE

extension, oil filler and dipstick

1шт.

25

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

extension tube

1шт.

26

L47766

CLAMP

extension tube

1шт.

27

A65120

BRACKET

extension tube

1шт.

28

D30474

CLAMP

extension tube

1шт.

29

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

30

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

31

25-104

NUT,1/4"-20, G5

1шт.

32

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

33

92-6

LOCK WASHER,3/8"

1шт.

34

95-4

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

1шт.

38

A182017

HEATER ASSY.

HEATER KIT - cylinder block (Replaces A155436) (North America Only), Includes: Ref. 39 - 41

1шт.

38

A182020

HEATER ASSY.

HEATER KIT - cylinder block (Canada Only), Includes: Ref. 39 - 41

1шт.

39

NSS

NOT SOLD SEPARAT

ELEMENT - heater, cyl block

1шт.

40

A45114

GASKET

element seal, cyl block heater

1шт.

41

A44813

CABLE EXTENSION

CORD - 12 inch long, cyl block heater

1шт.

45

A44006

SLEEVE

KIT - installation, cyl block heater, Includes: Ref 46 and 47

1шт.

46

NSS

NOT SOLD SEPARAT

SLEEVE - for 2-1/16 inch diameter hole, cyl block heater

1шт.

47

NSS

NOT SOLD SEPARAT

SLEEVE - for 2-1/8 inch diameter hole, cyl block heater

1шт.

Выбрано товаров: 44
