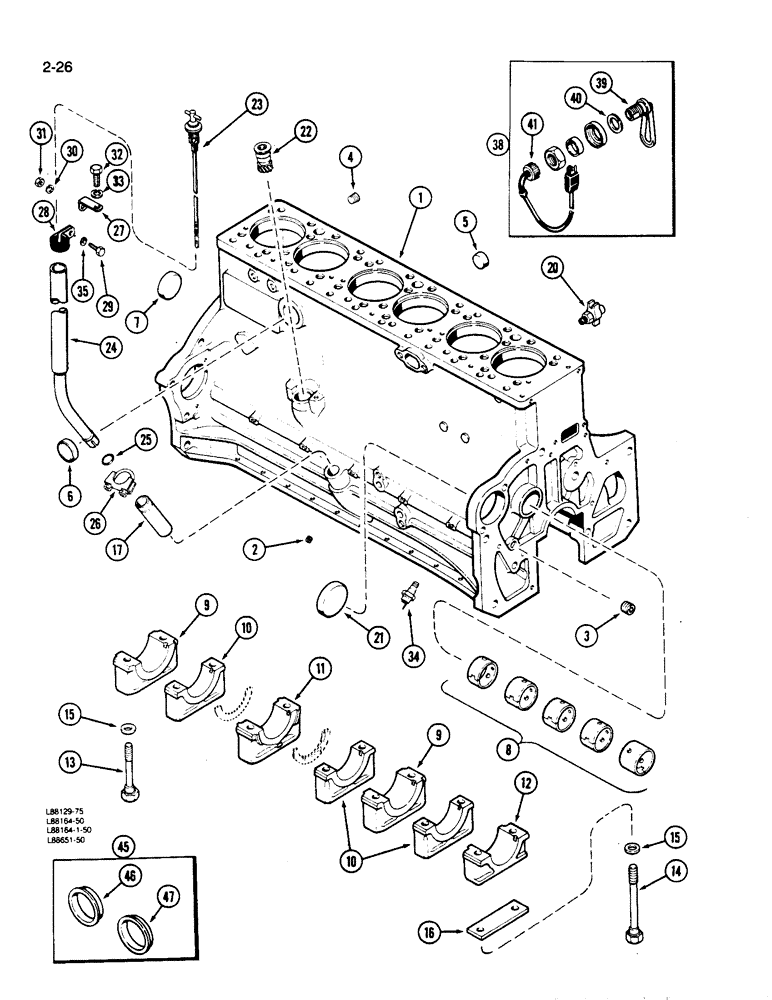

Запчасти Case 1455B (2-26) - CYLINDER BLOCK, 504BDT DIESEL ENGINE, PRIOR TO ENGINE SERIAL NO 10335337 (02) - ENGINE

A151233

CRANKCASE

BLOCK ASSEMBLY - short (Includes stripped block, pistons, rods, crankshaft and bearings, camshaft and gears), Includes: Ref. 1 - 47

1шт.

AR151233

REMAN-SHORT ENGINE

Remanufactured, For N.A. Only

1шт.

AC151233

CORE-SHORT ENGINE

Return Number, For N.A. Only

1шт.

1

AR46000

CRANKCASE

BLOCK ASSEMBLY - stripped (Remanufactured, North America only), Includes: Ref. 2 - 21

1шт.

1

A46000

SKELETON ENGINE

BLOCK ASSEMBLY - stripped (New) (Casting A66525), Includes: Ref. 2 - 21

1шт.

AR151233

REMAN-SHORT ENGINE

Remanufactured, For N.A. Only

1шт.

2

221-1849

PLUG

hex socket head, 1/8 inch PT

6шт.

3

221-1843

PLUG

hex socket head, 3/8 inch PT

4шт.

4

221-845

PLUG,Hex Soc, 3/4"-14

hex socket head, 3/4 inch PT

1шт.

5

A58568

PLUG,Cup, 1 3/8", Stainless

cup type, 1-3/8 inch diameter

3шт.

6

A58569

PLUG,Cup, 2", Stainless

cup type, 2 inch diameter

1шт.

7

A24361

PLUG

cup type, 2-3/8 inch diameter

1шт.

8

REF

INSTRUCTION

BUSHINGS - camshaft (See Fig. 2-24)

1шт.

9

A154398

BEARING CAP

wide main bearing

2шт.

10

A154397

BEARING CAP

narrow main bearing

2шт.

11

A154395

CAP

thrust bearing (center)

1шт.

12

A154399

CAP

front main bearing

1шт.

13

A66948

STEP BOLT

bearing cap, 5 inch

12шт.

14

A66949

STEP BOLT

front bearing cap and oil pump, 7-1/4 inch

2шт.

15

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

cap bolt

14шт.

16

A58859

SHIM,.005" Thk

Oil pump .005" Thk

1шт.

17

A34540

TUBE

oil filler and dipstick

1шт.

20

A23656

COCK, DRAIN

VALVE - water

1шт.

21

41-1052

PLUG,Cup, 3 1/4"

cup type, 3-1/4 inch diameter

1шт.

22

A34266

DRIVE

tachometer

1шт.

23

A155633

DIPSTICK

oil level

1шт.

24

A15591

TUBE - extension, oil filler and dipstick

1шт.

25

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

extension tube

1шт.

26

L47766

CLAMP

extension tube

1шт.

27

A65120

BRACKET

extension tube

1шт.

28

A30474

CLAMP - extension tube

1шт.

29

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

30

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

31

25-104

NUT,1/4"-20, G5

1шт.

32

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

33

92-6

LOCK WASHER,3/8"

1шт.

34

A66737

SWITCH, PRESSURE

engine oil

1шт.

35

95-4

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

1шт.

38

A155436

RESISTOR

HEATER ASSEMBLY - cylinder block, Includes: Ref. 39 - 41

1шт.

39

NSS

NOT SOLD SEPARAT

ELEMENT - heater cyl block

1шт.

40

A45114

GASKET

element seal, cyl block heater

1шт.

41

A44813

CABLE EXTENSION

CORD - heater, 12 inch long, cyl block heater

1шт.

45

A44006

SLEEVE

KIT - heater installation, cyl block heater, Includes: Ref. 46 and 47

1шт.

46

NSS

NOT SOLD SEPARAT

SLEEVE - for 2-1/16 inch diameter hole, cyl block heater

1шт.

47

NSS

NOT SOLD SEPARAT

SLEEVE - for 2-1/8 inch diameter hole, cyl block heater

1шт.
