Запчасти Case 1455B (2-24) - CAMSHAFT, 504BDT DIESEL ENGINE (02) - ENGINE

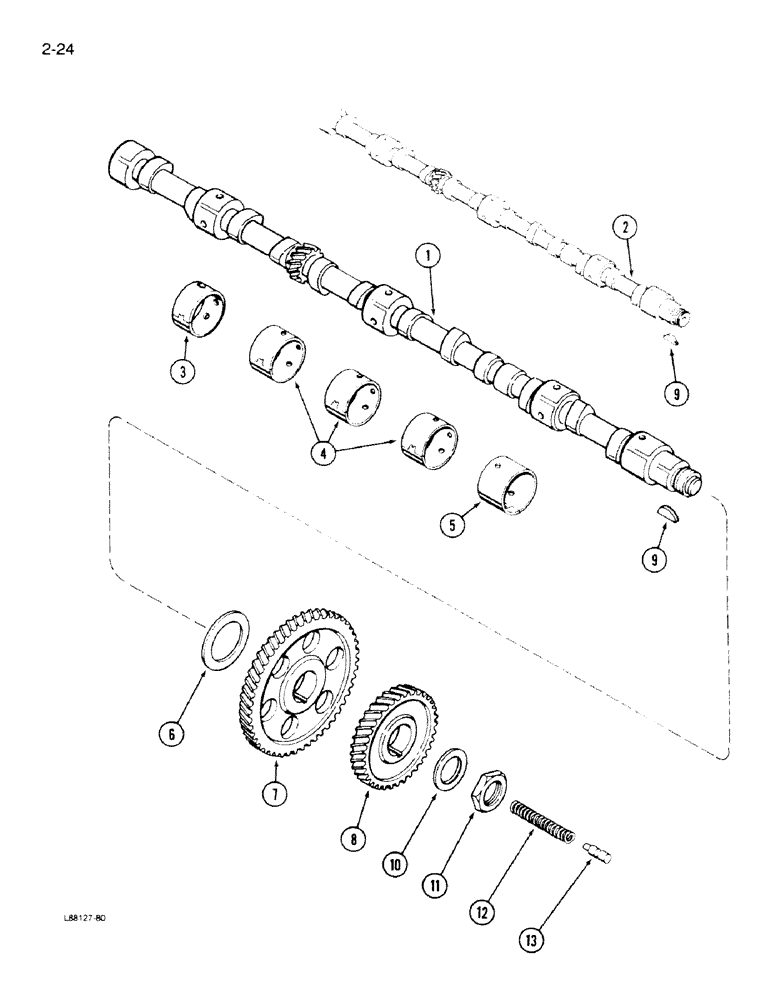

Схема запчастей Case 1455B - (2-24) - CAMSHAFT, 504BDT DIESEL ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A66743

CAMSHAFT

- engine (Prior to Engine Serial Number 10335337)

1шт.

2

A66124

CAMSHAFT

- engine (Engine Serial Number 10335337 and after)

1шт.

3

A23487

BUSHING,44.35mm ID x 60.3mm OD x 29.62mm L

- rear, 1-5/32 inch wide

1шт.

4

A21019

BUSHING,57.05mm ID x 60.33mm OD x 36.63mm L

- center, 1-7/16 inch wide

3шт.

5

A21018

BUSHING,57.11mm ID x 60.33mm OD x 42.32mm L

- front, 1-5/8 inch wide

1шт.

6

A21017

WASHER

- thrust

1шт.

7

A58592

GEAR

- camshaft

1шт.

8

A58593

GEAR

- idler drive

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - gear

1шт.

10

A31038

THRUST WASHER

- lock, camshaft nut

1шт.

11

A58595

NUT

- camshaft gear

1шт.

12

A28753

SPRING - plunger

1шт.

13

A27852

PLUNGER

- thrust

1шт.

Выбрано товаров: 13
