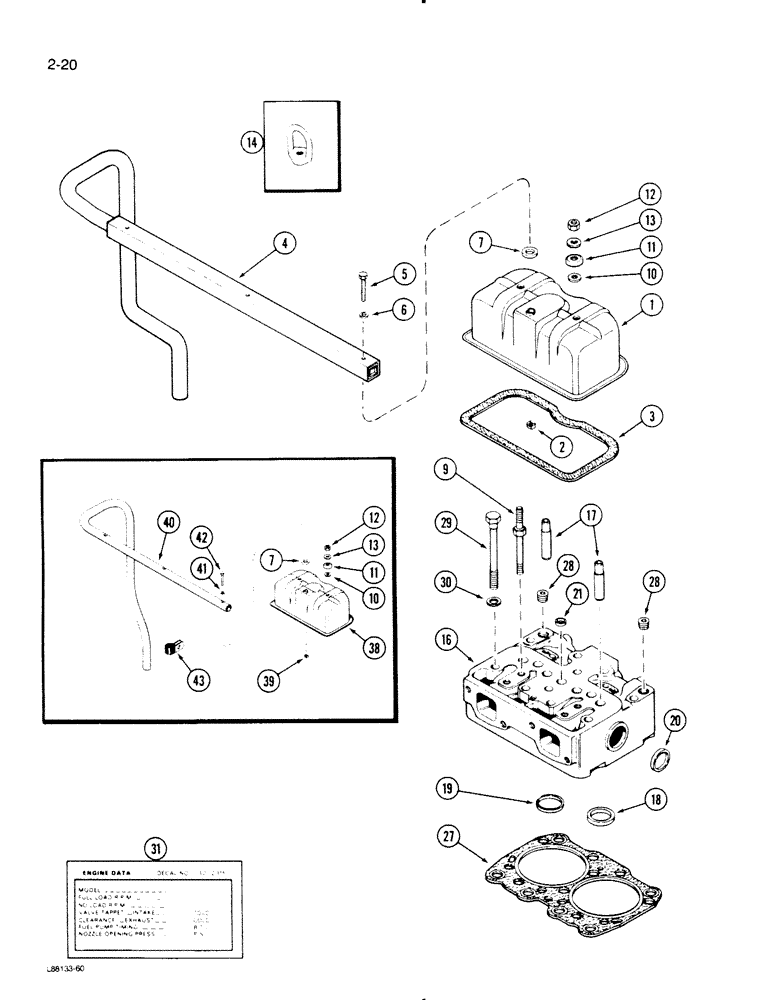

Запчасти Case 1455B (2-20) - CYLINDER HEAD AND COVER, 504BDT DIESEL ENGINE (02) - ENGINE

1

A166170

COVER

COVER ASSEMBLY - cylinder head, Includes: Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - cage, 1/4 inch NC Tinnerman

1шт.

3

A156960

CYLINDER HEAD GASKET,3.05mm Thk

GASKET -, Serial Range: cover-head

3шт.

4

A166175

TUBE

SPARE PART TUBE - breather

1шт.

5

182-587

SCREW,Cross Pan Hd, 1/4"-20 x 2 1/2"

SCREW - pan head machine, 1/4 NC x 2-1/2 inch

3шт.

6

A166102

WASHER,6.45mm ID x 12.7mm OD x 0.81mm Thk

GASKET - breather tube bolt

3шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET -, Serial Range: tube-cover

3шт.

9

A67121

STUD

STUD -, Serial Range: cover-head

6шт.

10

A142098

GROMMET

GROMMET - Replaces A23684

6шт.

11

A156097

WASHER,11.94mm ID x 31.22mm OD x 1.32mm Thk

WASHER - dished, cover nut (Replaces A23683)

6шт.

12

25-107

NUT,7/16"-14, G5

NUT - hex, 7/16 inch NC

6шт.

13

195-29

WASHER,7/16"

WASHER - flat, 15/32 x 59/64 x 1/16 inch

6шт.

14

A60567

EYE

EYE - engine lift

2шт.

16

A138261

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder (Casting A152437) (Engine Serial Number 10335337 and after), Includes: Ref. 17 - 21

3шт.

16

AR152265

REMAN-CYLINDER HEAD

Cylinder Head

3шт.

16

AC152265

CORE-CYLINDER HEAD

Return Number

3шт.

16

A66709

HEAD

HEAD ASSEMBLY - cylinder (Casting A60559) (Prior to Engine Serial Number 10335337), Includes: Ref. 17 - 21

3шт.

16

AR66686

REMAN-CYLINDER HEAD

Remanufactured CYLINDER HEAD

3шт.

16

AC66686

CORE-CYLINDER HEAD

Return Number

3шт.

17

A41783

GUIDE

GUIDE - valve stern

4шт.

18

A66192

INSERT

INSERT - exhaust valve seat

2шт.

19

A66191

INSERT

INSERT - intake valve (Engine Serial Number 10335337 and after)

2шт.

19

A60557

INSERT

INSERT - intake valve seat (Prior to Engine Serial Number 10335337)

2шт.

20

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - cup type, 1-5/8 inch diameter

2шт.

21

A58620

PLUG,Cup, 3/4", Stainless

PLUG - cup type, 3/4 inch diameter

1шт.

27

A138397

CYLINDER HEAD GASKET

GASKET -, Serial Range: head-block

3шт.

28

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - socket head, 3/8 inch PT

6шт.

29

A76638

BOLT

BOLT - hex, 5/8 NC x 6-1/4 inch NC

30шт.

30

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - head bolt

30шт.

31

321-6209

DECAL

DECAL - engine data (On cover) (Prior to Engine Serial Number 10335337)

1шт.

31

321-3067

DECAL

DECAL - engine data (On cover) (Engine Serial Number 10335337 and after)

1шт.

38

A58929

COVER

COVER ASSEMBLY - cylinder head (If equipped), Includes: Ref. 39

3шт.

39

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - cage, 1/4 inch NC Tinnerman

1шт.

40

A65433

TUBE

TUBE - oil breather

1шт.

41

A166102

WASHER,6.45mm ID x 12.7mm OD x 0.81mm Thk

GASKET - breather tube bolt

3шт.

42

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

BOLT - hex, 1/4 NC x 2-1/2 inch

3шт.

43

D34033

CLAMP

CLAMP - tube

3шт.
