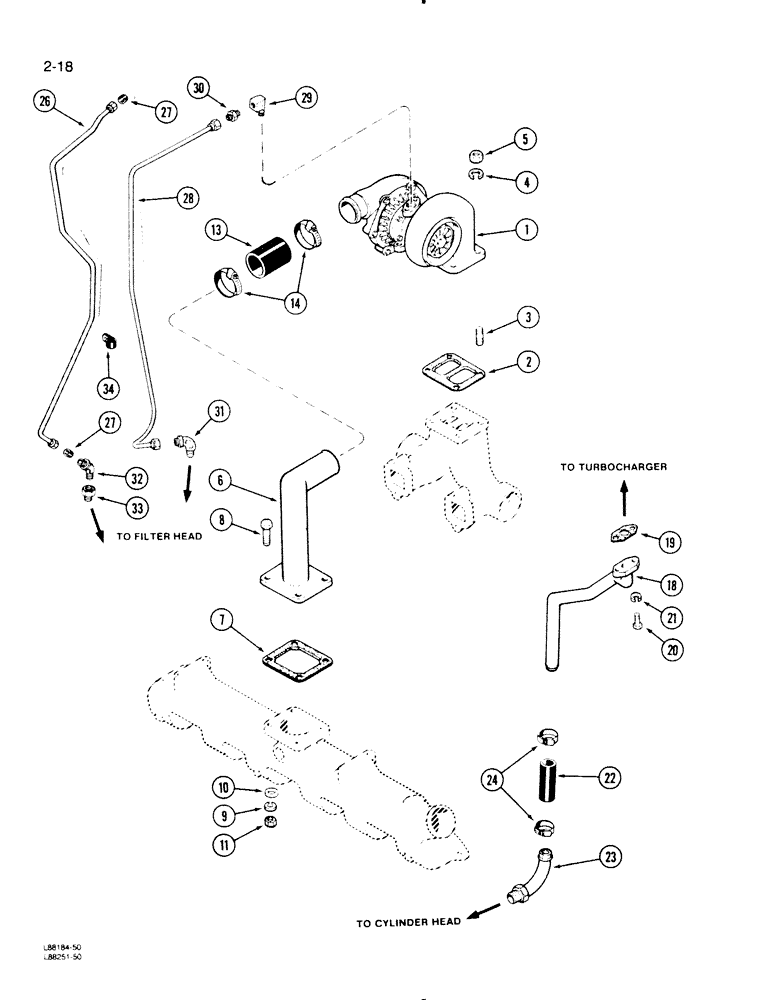

Запчасти Case 1455B (2-18) - TURBOCHARGER SYSTEM, 504BDT DIESEL ENGINE (02) - ENGINE

1

A157336

TURBOCHARGER

ASSEMBLY - engine (New) (Engine Serial Number 10335337 and after)

1шт.

1

A48192

REMAN-TURBOCHARGER

Turbocharger Assembly, Engine, Remanufactured (A157336)

1шт.

1

A48191

CORE-TURBOCHARGER

Return Part Number, turbocharger (Use to return core for credit) (A157336)

1шт.

1

A157335

TURBOCHARGER

ASSEMBLY - engine (New) (Replaces A66770) (Prior to Engine Serial No. 10335337)

1шт.

1

A48190

REMAN-TURBOCHARGER

Turbocharger Assembly, Engine, Remanufactured (A157335)

1шт.

1

A48189

CORE-TURBOCHARGER

Return Part Number, turbocharger (Use to return core for credit) (A157335)

1шт.

2

A58899

GASKET,0.45mm Thk

-, Serial Range: turbocharger-manifold

1шт.

3

G102128

BOLT

- mounting, 1-7/16 inch

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

131-903

NUT,3/8"-16

NUT - hex, 3/8 inch NC (Seezpruf)

4шт.

6

A150450

ELBOW

- intake

1шт.

7

A58910

GASKET

- elbow

1шт.

8

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

95-6

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch

4шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC

4шт.

13

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

2.00" ID x 2.88"

1шт.

14

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

18

A62518

TUBE

- oil drain

1шт.

19

A58892

GASKET,1.59mm Thk

- drain tube

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

A156842

HOSE,22.2 mm ID x 88.90 mm, SAE 30R1 TYPE 1 PER SAE J30

0.90" ID x 3.50", SAE 30R1 type 1 per SAE J30 - Drain Tube

1шт.

23

A58897

FITTING

- drain hose

1шт.

24

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

26

A166064

TUBE

ASSEMBLY - oil supply (Engine Serial Number 10335337 and after), Includes: Ref. 27

1шт.

27

222-154

SLEEVE,3/8" Tube

FERRULE - tube end

2шт.

28

A66037

TUBE

- oil supply (Prior to Engine Serial Number 10335337)

1шт.

29

217-19

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- brass

1шт.

30

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - tube to elbow

1шт.

31

222-4048

ELBOW,90º, 5/8"-24 Fem x 3/8"-18 NPTF

- 90 degree, tube to filter

1шт.

32

222-4095

ELBOW,45 Degree, 5/8"-24 x 1/4" NPT

- 45 degree, tube to filter, 3/8 tube x 1/4 inch PT

1шт.

33

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING - reducer, 1/4 to 3/8 inch

1шт.

34

49845

CLAMP

CLIP - supply tube

1шт.
